SECTION 582-001-200
/
SWITCH ASSEMBLY~
CONNECTORS "'-
6 I
TO RO
~
>-----1
t----➔
>
TO DATA SET
LINE PORT ~
>---- LOCAL PORT
Note4
5
TOKD
--<
LOCAL PORT
Note 5
4
TOKD
~
LINE PORT
Note4
7
TO AUXILIARY-<
TERMINAL
Note 1
3
"DATASPEED"
)
EIASWITCH
ASSEMBLY
Note 2
(TP345630)
2
<
Note 3
Note 1: TP341896 cable provided with switch assembly (7 ft)
TO 4210 MT
.LOCAL PORT
TO 4210 MT
LINE PORT
Note 2:
TP344375 cable provided with DATASPEED Magnetic Tape Terminal (8 ft)
Note 3:
TP337380 cable provided with DATASPEED Magnetic Tape Terminal (6 ft)
Note 4: TP341896 cable provided with DATASPEED 40 Terminal (7 ft)
Note 5: TP341896 cable ordered separately for this configuration (7 ft)

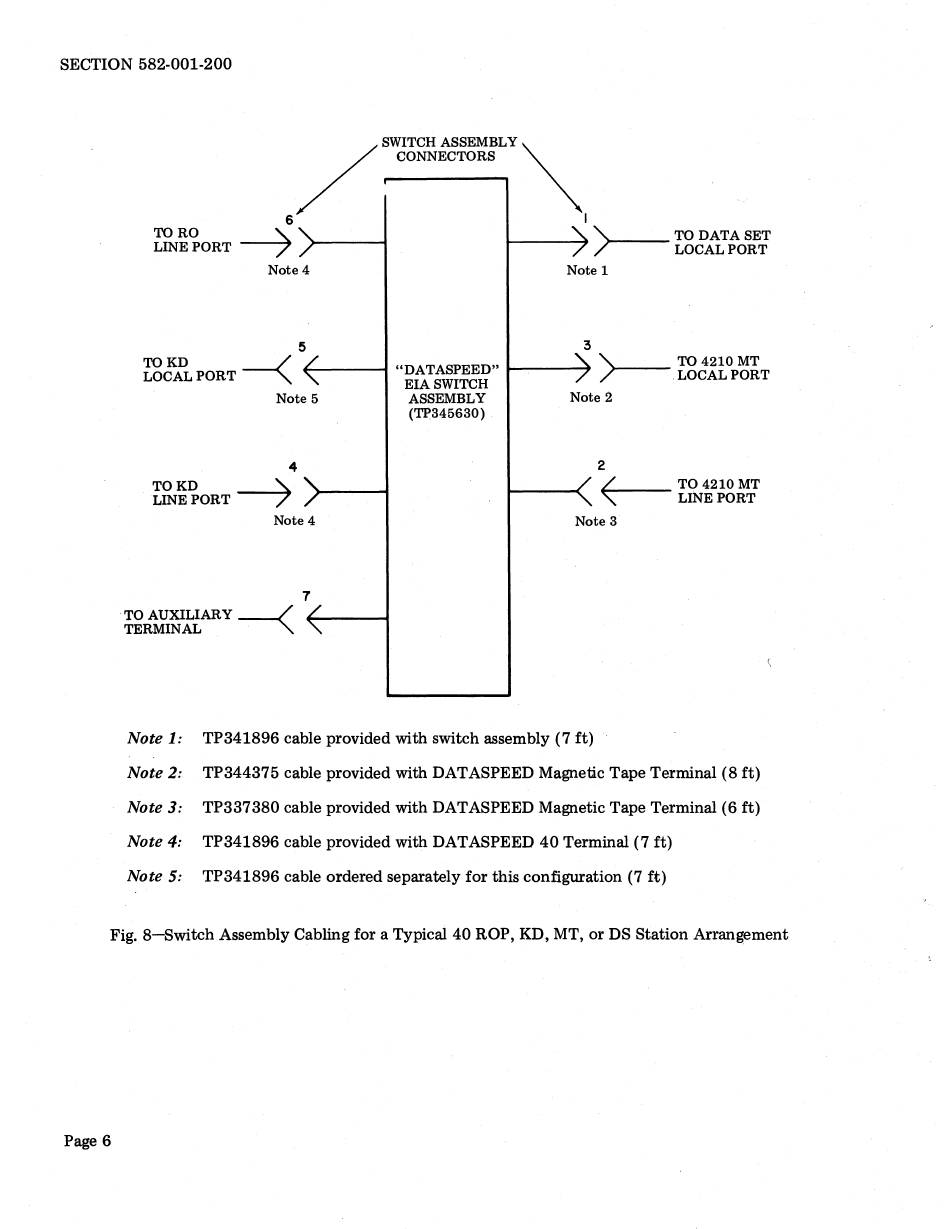

Fig. 8-Switch Assembly Cabling for a Typical 40 ROP, KD, MT, or DS Station Arrangement
Page 6
