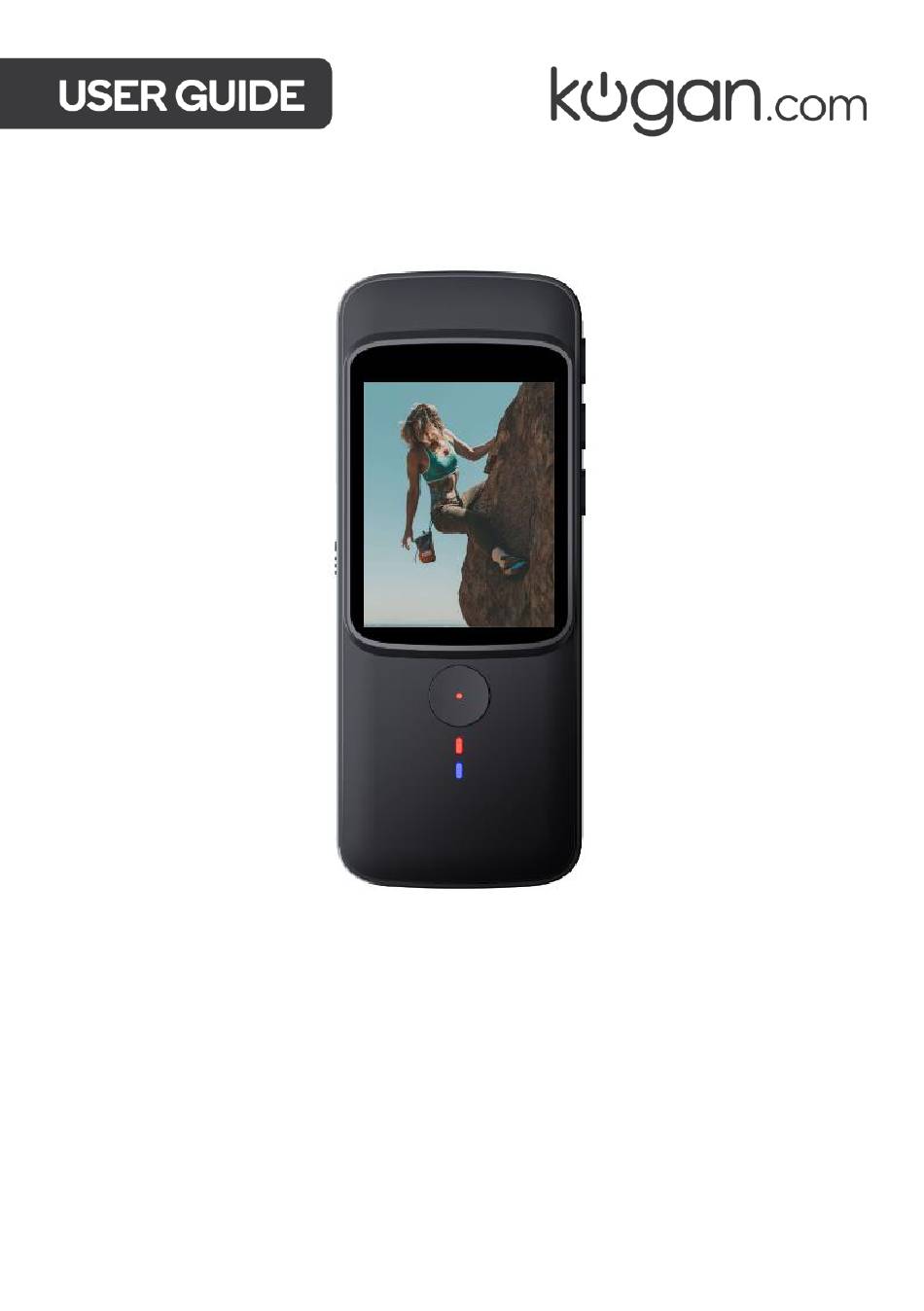

Pocket 4k action camera

Advertisement

POCKET 4K ACTION
CAMERA
KACAPCKT4KA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KACAPCKT4KA and is the answer not in the manual?

Questions and answers

Summary of Contents for Kogan KACAPCKT4KA

  • Page 1 POCKET 4K ACTION CAMERA KACAPCKT4KA...
  • Page 2: Table Of Contents

    Safety & Warnings Overview Live DV App Installation Operation Functions Cleaning & Maintenance...
  • Page 3: Safety & Warnings

    SAFETY & WARNINGS • It is normal for the casing of this camera to exert heat during operation. • This camera requires a name brand Class10 or higher micro SD card. Format your SD card on the camera first before using. •...
  • Page 4: Overview

    OVERVIEW Lens 2.0-inch touch screen 1.4-inch front screen Shutter/Select button Charging indicator Operation indicator...
  • Page 5 Power/Mode button Up/Wi-Fi button Down/Screen Switching button External mic/data/charging port Battery cover Speaker ¼ Tripod socket...
  • Page 6: Live Dv App Installation

    LIVE DV APP INSTALLATION Live DV App The Live DV app allows you to control your camera remotely using a smartphone. Features include full camera control, live preview, playback sharing content and more. Install the Live DV App Scan the QR code below to install the Live DV app. Alternatively, app on the Google Play Store or Apple App Store.
  • Page 7 Connect to the App Press the Power/Mode button to power the camera on. Press the Up/Wi-Fi button to turn on the Wi-Fi. After 3-5 seconds, the Wi-Fi icon, Wi-Fi network and password will display on the screen. Go to your -Fi settings and connect to the Wi-Fi network called ACTION CAM_[XXXX [serial number].
  • Page 8 Downloading Content to your Device Open the Live DV app. Tap the file you want to download.
  • Page 9: Operation

    OPERATION Micro SD Card Requirements To capture video and photos, you need a micro SD card (sold separately). Use name brand memory cards that meet the following requirements: • Micro SD, micro SDHC or micro SDXC. • Class 10 or UHS-I rating. •...
  • Page 10 Powering the Camera On/Off Press and hold the Power/Mode button to power the camera on/off. Remote Control Place the remote control on your wrist for convenience during hiking, biking, skiing, bungee jumping and more. Photo button Indicator Video button Note: The remote control is splash-proof only and has a range of 5 metres.
  • Page 11 Waterproof Case • The waterproof case is designed for diving, surfing, snorkelling and other water activities. • The waterproof case does not only offer greater waterproof protection to your camera, but it also offers extra protection against dust and scratches. •...
  • Page 12: Functions

    FUNCTIONS Changing Modes • Power the camera on and repeatedly press the Power/Mode button to cycle through modes and settings. The modes will appear in the order below. Video mode Photo mode Video playback Exit. Photo playback Video settings Photo settings System mode mode...
  • Page 13 Video Mode • Video Mode is the default mode when you power on the camera. In Video Mode, press the Shutter/Select button to start/stop recording a video. • Press the Up button to quickly turn off the camera Wi-Fi. • Press the Down button to switch screens. Photo Mode •...
  • Page 14 Settings Navigating with buttons: • Repeatedly press the Mode button to view the different Settings menus. • Use the Up/Down buttons to scroll through the sub-menus. • Press the Shutter/Select button to enter a sub-menu or select the desired option. •...
  • Page 15 • Tap to enter a sub-menu and select the desired option. • Swipe up or down on the screen to flip the page. Video Settings: • Video Resolution: 4K 30/2.7K 30/1080P 60/1080P 60(9:16)/1080P 30/1080P 30(9:16) 720P 120. • Looping Video: Off/ 1 minute/3 minutes/5 minutes. •...
  • Page 16 Photo Settings: • Photo Resolution: 20M/16M/14M/12M. • Continuous Lapse: Off/2s/5s/10s/30s/60s. • Self-timer: Off/5s/10s/20s. System Settings: • Language: English/Español/Deutsch/Italiano/Français/简体中文/日本語. • Volume: 0~10. • Remote Control: On/Off. • Car Mode: On/Off. • Exposure: +2~-2. • Diving Mode: On/Off. • Date & Time: Y-M-D 00:00:00. •...
  • Page 17 Playback using the touch screen: In Video or Photo mode, tap the playback icon in the lower left corner of the screen to quickly enter the Video Playback Menu, or tap the photo icon in the upper left corner to enter the Photo Playback menu.
  • Page 18 Delete a File on the Camera Enter Video or Photo Playback mode. If your SD card contains a lot of content, it might take some time to load. Press the Up/Down buttons to locate the file you want to delete. Press and hold the Up button.
  • Page 19: Cleaning & Maintenance

    CLEANING & MAINTENANCE • Keep the white silicone seal ring on the waterproof case clean. A single hair or grain of sand may cause a leak. • If the white silicone seal ring is hardened, deformed, or damaged, stop using the case. •...
  • Page 20 Need more information?
