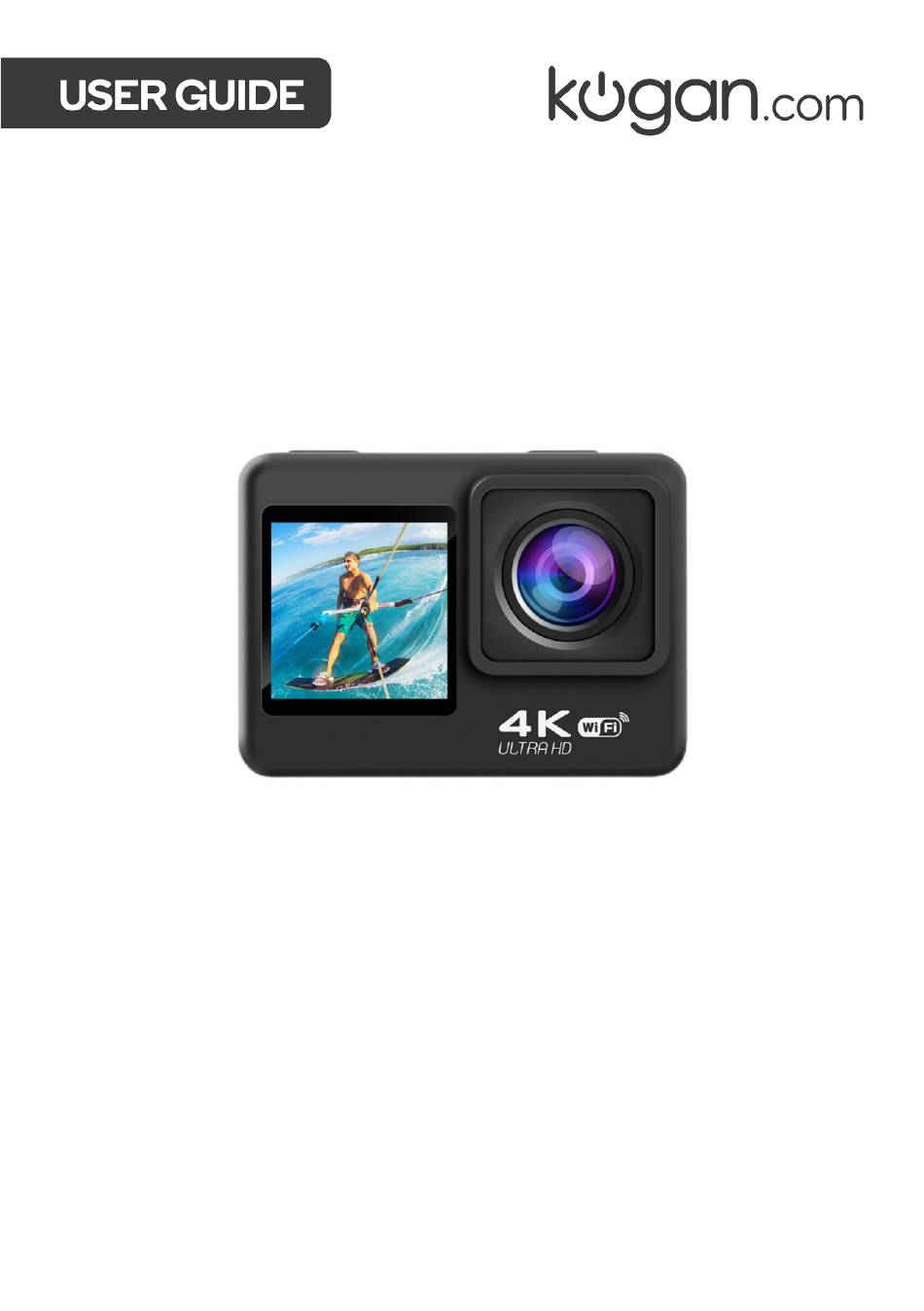

- Page 1 KOGAN 4K DUAL-SCREEN ACTION CAMERA KAACTCAM4KA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Do not drop the camera or place it in a position where it may fall. • Keep the camera away from strong magnetic objects to avoid strong radio waves that might damage the product and affect the sound or image quality. •... - Page 4 COMPONENTS Waterproof Casing Bicycle Bracket Mount 1 Clip Mount 2 Mount 3 Helmet Mount Bandage 3M Adhesive (x2) USB Cable Battery User Guide...
- Page 5 OVERVIEW Front Screen Rear Screen Charging Indicator Function Indicator USB-C Port Up Button Micro SD Card Slot Down Button HDMI Port Speaker...
- Page 6 Waterproof casing OK Button Mode button Switch Up Button Lens Down Button Note: Lock the waterproof housing before putting it into water, otherwise it may leak and damage or destroy your camera. Water will damage both the camera and the battery, which could cause an explosion or fire.
- Page 7 CONNECT TO XDV-PRO APP Download the XDV-PRO app The XDV-PRO app allows you to preview the shooting screen on the app, view videos and photos remotely, along with playback, download, delete and share files. Scan the QR code below and download the ‘XDV-PRO’ app on the Google Play Store or the Apple App Store.
-
Page 8: Operation
OPERATION Power on/off Press and hold the mode button for 3 seconds to power the camera on/off. Insert a micro SD card Place a class 10 micro SD card (128GB max.) into the micro SD card slot. Note: Ensure the micro SD card is formatted to Fat32. - Page 9 Mode overview Power on the camera and repeatedly press the mode button to cycle through the camera modes. Video Recording Slowly Recording Loop Recording Lapse Recording Photo Auto Burst Timer...
- Page 10 Main menu • Power on the camera and press and hold the OK button for 2 seconds to enter the main menu. • Press the up/down buttons to navigate the sub-menus. • Press the mode button to select the return button.
- Page 11 Playback: • Select to enter the Playback sub-menu. • Press the up/down buttons to select a file and press the OK button to playback the video or photo. System Settings: • Select to enter the System Settings sub-menu. • Press the up/down buttons to navigate the settings and press the OK button to select. •...
- Page 12 Photo settings: Pixel Inset 24M/20M/16M/12M/10M Auto Photo Interval 3s/10s/15s/20s/30s Burst Photo Frequency 3P/S, 5P/S, 10P/S Timer Countdown 3S/ 5S/ 10S/ 20S White Balance Auto/Sunny/Cloudy/Incandescent/Fluorescence Exposure Setting -3, -2, -1, 0, 1, 2, 3 Sharpness High/Middle/Low Long Exposure Auto/2S/5S/10S/15S/20S/30S Auto/100/200/400/800/1600/3200/6400 Time Watermark On/Off System settings: Image Rotation...
- Page 13 Video modes Place the camera in one of the video modes (Video/Slowly/Loop/Lapse). When the video icon displays on the screen, press the OK button to start recording. The function indicator will flash blue. Press the OK button again to stop recording. The camera will beep, and the function indicator will stop flashing.
-
Page 14: Specifications
SPECIFICATIONS 2.0’+1.3’LCD LENS 170 degree wide Angle lens Language Simplified Chinese/Traditional Chinese /English/Japanese/Korean/Russian/German/French/It alian/Spanish/Portuguese/Thai/Polski Video 4K60FPS,4K30FPS,2.7K30FPS,1080P120/60/30FPS, 720P240/120/60/30FPS Video Format Compression Format H.264 24M,20M,16M,12M,10M. Photo Memory Micro SD up to 128GB Video Mode Video/ Slowly/ Loop / Lapse Photo Mode Photo/ Auto / Burst/ Timer WIFI Support HDMI... - Page 15 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
