- Page 1 SPIDERSPLIT6T 6Way DMX Splitter + WDMX Receiver User manual...
-
Page 2: Safety Instructions

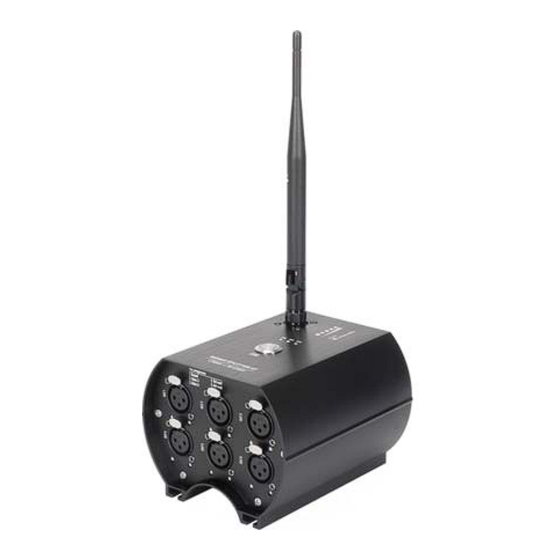

1. INTRODUCTION The SPIDERSPLIT6T is a wireless DMX Receiver and 6Way DMX Splitter 2-in-1 unit. It can be used as normal DMX splitter when there is no Wireless Transmitter . As a Wireless DMX Receiver, it is compatible with LumenRadio CRMX and W-DMX Transmitter. -
Page 3: Production Overview
DMX SPLITTER • 1 input to 6 outputs • 3pin or 5pin DMX In • 3pin or 5pin DMX Thru • 3pin or 5pin DMX Out 100% isolation for all inputs and outputs Signal & power LED indicator for output 1.4 Production Overview Antenna LED indicator for... -
Page 4: System Connection
500m max. in line of sight RECEIVER TRANSMITTER RECEIVER TRANSMITTER 1m min. 2.4 System connection Use DMX cables to connect DMX IN of the TRANSCEIVER to DMX source and DMX OUT of RECEIVER to lighting equipments. 2.5 Power The wireless system is designed to work on AC 100-240V 50/60Hz. Before applying power to a unit, make sure that the unit’s input voltage matches the power source voltage. - Page 5 Point-to-point Point-to-multipoint (Number of Receiver is not limited ) Multipoint-to-multipoint Note: Maximum universes in coexistence: 16...
- Page 6 Wired DMX connection High capacity: Six channels and each channel can drive up to 100pcs DMX devices. 3. Wireless DMX INSTRUCTIONS...
-
Page 7: Specifications
LINK indicator Signal Quality Indicators On=Linked with a Transmitter Red=Link problem Off =Unlinked Bottom green=20% Fast flashing (3Hz)=Linking or Mid-down green=40% linked but lost RF signal Mid-up green=60% Slow flashing (1Hz)=Linked, Top green=80% but lost DMX signal MODE indicator DATA indicator Green when power on On = receiving DMX signal Off = not receiving DMX signal...
