- Page 1 6007 0581 / Rev. 3 Original English Language Version Copyright 2018 / All rights reserved FOSS Analytical Co., Ltd., 6 Louyang Road, Building 1, 215121, SIP, Suzhou, P.R. China Tel Int +86 512 6292 0100, Fax +86 512 6280 5630, E-mail info@foss.dk...
- Page 2 CT 293 Cyclotec™ All information is liable to change without prior notice. For latest information about documentation updates for your specific instrument, please contact your local FOSS representative. Rev. Date of Issue Revised Material 2016-09-20 First Issue. 2016-10-31 Update Safety Information.
-
Page 3: Table Of Contents
CT 293 Cyclotec™ Table of Contents Safety ............General ................. 1:1 Personal Safety ............1:2 Product Safety ............1:2 Disposal Instructions ..........1:2 Warranty Policy ............1:3 Introduction..........Installation ..........Unpacking ..............3:1 Installation ..............3:2 Assembly ..............3:3 Operating Instructions....... General Information .......... - Page 4 CT 293 Cyclotec™ User Manual 6007 0581 / Rev. 3...
-
Page 5: Safety
CT 293 Cyclotec™ Safety General This user manual is addressed to laboratory personnel. Please read the manual carefully and act accordingly. For safety reasons personnel not familiar with the safety information and operating instructions must not use the instrument. The instrument is designed and built in accordance with the state-of-art technology. Nevertheless, risks to users, property, and environment can arise when the instrument is used carelessly or improperly. -
Page 6: Personal Safety
To ensure that this compliance is maintained, connect only CE approved equipment. Caution The system may only be repaired by personnel certified by FOSS. FOSS recommends the use of original FOSS spare parts. If spare parts from other are used, the warranty no longer applies. -
Page 7: Warranty Policy
• the product has not been used for purposes other than those reasonably contemplated by FOSS • the product has not been altered or repaired with non-original FOSS parts or by personnel not authorised by FOSS • only original FOSS consumables and accessories or equivalents recommended by FOSS have been used •... - Page 8 CT 293 Cyclotec™ User Manual 6007 0581 / Rev. 3...
-
Page 9: Introduction

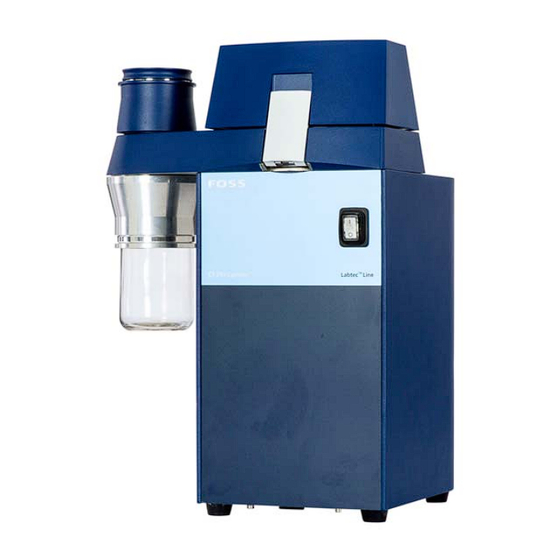

CT 293 Cyclotec™ Introduction The FOSS CT 293 Cyclotec Sample laboratory is ideal for rapid and flexible preparation of a wide variety of feeds, grains, leaves ad more for NIR or reference analysis. It is intended for laboratory environments only. - Page 10 CT 293 Cyclotec™ User Manual 6007 0581 / Rev. 3...
-
Page 11: Installation
Installation Unpacking Use the packing list enclosed with the grinder together with Fig. 3:1 to ensure that no parts are missing. If you have any questions, please contact your FOSS representative. Fig. 3:1 Cyclotec and its accessories Quick Guide (English) 60076375 Owner’s Guide... -
Page 12: Installation
CT 293 Cyclotec™ US Standard Power Cable, 60065342 125V 10A (110-120V Version) Cyclotec Installation The CT 293 Cyclotec should be positioned on a substantial, non-resonant work surface with a recommended height of 800-900 mm close to suitable power. Space requirements are indicated in the 8.2 Technical Data. Install the cord to an electrical outlet according to Fig. -
Page 13: Assembly
CT 293 Cyclotec™ Assembly Check that the sample inlet bin is correctly positioned on the inlet connection as shown in Fig. 3:3. 60070581003a Fig. 3:3 Note: When taking off the sample inlet. please use thumb to push the inlet towards the back of instrument to release the lock pin. Then remove the sample inlet from the top of instrument. - Page 14 CT 293 Cyclotec™ Check the function of sample outlet by assembling one sample bottle. The sample bottle should be tightly fixed. Put a finger on the top of the lock and open it as shown in Fig. 3:5. Note: When opening the lock, do not put your fingers under the lock to prevent your fingers pinched by the lock.
- Page 15 CT 293 Cyclotec™ To ensure that no dust escapes during use, the dust filter pad should be inserted correctly according to Fig. 3:7. 60070581005a Fig. 3:7 User Manual 6007 0581 / Rev. 3...
- Page 16 CT 293 Cyclotec™ User Manual 6007 0581 / Rev. 3...
-
Page 17: Operating Instructions
CT 293 Cyclotec™ Operating Instructions Note: Ear Protection is required in the operation of CT 293 Cyclotec General Information The grinding is started with the power switch. Note: The grinding must also be stopped with the power switch. The dust pad should also be correctly positioned on the top of sample outlet to prevent the dust scattering. - Page 18 CT 293 Cyclotec™ Fasten next sample bottle and repeat previous steps to grinding other samples. 60070581007a Fig. 4:2 User Manual 6007 0581 / Rev. 3...
-
Page 19: Operation With Large Inlet
CT 293 Cyclotec™ Operation with Large Inlet When grinding larger quantities of sample or bulky material, the large inlet is a convenient accessory. Remove the sample inlet. Note: When taking off the sample inlet. Please use thumb to push the inlet towards the back of instrument to release the lock pin. Then remove the sample inlet from the top of instrument. -
Page 20: Dust Collection Using External Connection
CT 293 Cyclotec™ Dust Collection Using External Connection The external connection is used when the sample give rise to more dust than normal, or when the standard dust filter pad fails to collect very fine dust. To connect the mill to external system, exchange the dust pad for Part Number 60076071 and follow the instructions below: Simply exchange the standard dust pad with the dust collector equipped with an external connection. -
Page 21: Maintenance
CT 293 Cyclotec™ Maintenance It is essential that your FOSS instrument receives a certain amount of regular maintenance to ensure optimum performance. This in turn ensures quality and consistency of results at the highest level. To keep the Cyclotec Sample Mill clean, it is recommended to clean the grinding chamber and dust pad every time finish grinding samples. -
Page 22: Cleaning And Replacement Of Silicone Plug
CT 293 Cyclotec™ Cleaning and Replacement of Silicone Plug Use the Allen wrench supplied with the Cyclotec Mill to remove the nut. Take out the silicon plug. Clean it or replace a new one. Reconnect the nut. 60070581015a User Manual 6007 0581 / Rev. 3... -
Page 23: Replacement Of Grinding Rings
CT 293 Cyclotec™ Replacement of Grinding Rings This grinding ring is a full 360 degree design. No retainer or screw is required in the grinding chamber to keep it in place. This prevents the possibility of ground material becoming lodged behind the retainers and causing problems during grinding. Care must be taken to place the screen opening correctly. -
Page 24: Replacement Of Impeller
CT 293 Cyclotec™ Replacement of Impeller Disconnect the apparatus from the mains power before starting dismantling. Open the locker to the sample inlet. Remove the intermediate plate covering the grinding chamber. Remove the grinding ring and sieve. Undo the hexagon screw on the top of impeller (Fig. 5:3). 60070581011a Fig. -
Page 25: Troubleshooting
Grinding chamber cover Cannot start instrument Close grinding and or/and sample inlet sample inlet chambers. chamber are not closed. Contact the FOSS Service Motor failure. Department. High current. Reset thermo fuse. Switch off and check if Impeller stuck or too high impeller is stuck;... - Page 26 CT 293 Cyclotec™ User Manual 6007 0581 / Rev. 3...
-
Page 27: Parts, Accessories And Consumables
CT 293 Cyclotec™ Parts, Accessories and Consumables Accessories/Optional 60068548 Glass bottle 350ml 4pcs/box 60076311 Glass bottle 350 ml 40 pcs/pkg 60074892 Screen 0.3mm 60074893 Screen 0.5mm 60068694 Screen 0.8mm 60074527 Screen 1.0mm 60076050 Screen 2.0mm 60068476 Brush 60063030 Tube brush 60074068 Silicon Plug 60074443... - Page 28 CT 293 Cyclotec™ User Manual 6007 0581 / Rev. 3...
-
Page 29: Technical Specifications
CT 293 Cyclotec™ Technical Specifications Legal Data The equipment is CE labelled and complies with the following directives: • ElectroMagnetic Compatibility (EMC) Directive 2014/30/EU • Low Voltage Directive (LVD) 2014/35/EU • Machinery Directive (MD) 2006/42/EC • Packaging and packaging waste Directive 94/62/EC •... - Page 30 CT 293 Cyclotec™ User Manual 6007 0581 / Rev. 3...
