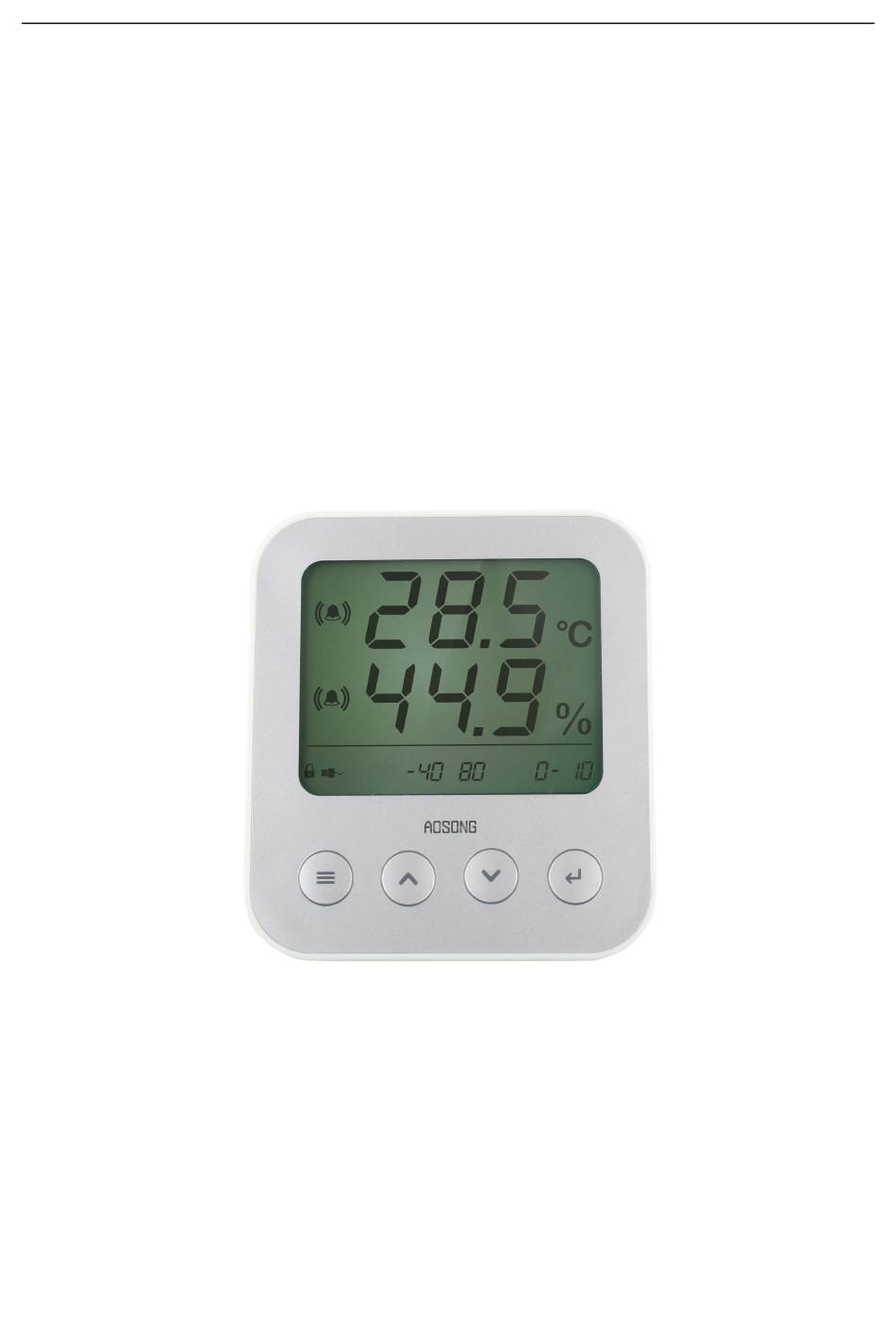

- Page 1 User Manual AW3010A Temperature & Humidity Transmitter AW3010A User Manual - 1 -...
-
Page 2: Product Overview
4~20mA current output signal. Therefore, the AW3010A achieves an excellent industrial grade temperature and humidity transmitter. The AW3010A can be widely used in Industrial factory building, telecom base station, communication room, HAVC, intelligent buildings, museums, archives, office, etc, which is the ideal solution for all kinds of application of environment temperature and humidity measurement monitoring. - Page 3 User Manual AW3010A Drift Typical ℃/yr 3.2 Relative Humidity (%RH) Parameter Condition Typ. Units Resolution 25℃ Measuring range 99.9 ±2 Drift Typical %RH/yr Figure 1 Relative Temperature error The measured value of the product may be subject to the following factors: 1．The temperature error...
-
Page 4: Product Installation
User Manual AW3010A 4 Dimensions Figure 2 Dimension (Units: mm) 5 Product Installation 5.1 Mechanical installation 1. Open the outer packing carton and take out the transmitter from the plastic bag. 2. Upturn the rear cover to the back of the transmitter, and use fingers or other tools break the plastic buckle below the instrument, then use a screwdriver to insert and move hard upward the square hole of the plastic buckle, then the rear cover is open. -
Page 5: Functional Description
User Manual AW3010A 5.2 Application circuit Note: 1. The load impedance RL1, RL2 must be smaller than 10KΩ, otherwise the analog voltage output signal will meet the unexpected error. 2. T is the current output signal of the temperature, and the RH is the current output signal of the humidity. - Page 6 User Manual AW3010A Lower limit value of -40℃ ~ (high temperature alarm -40.0 temperature alarm value-1)℃ Upper limit value of (low humidity alarm value+1) ~ 99.9 humidity alarm 99.9%RH Lower limit value of 1.0 ~( high humidity alarm humidity alarm...
-
Page 7: License Agreement
User Manual AW3010A Temperature -40~60℃ setting conversion: actual measurement c urre I -4mA （ ） 0.1 / Humidity setting conversion: actual measurement curre -4mA （ ） Humidity 0.1 / % 8 License Agreement 1) Without the written permission of the company, it shall not copy or disseminate the content of this specification in any form, nor shall it be disclosed to a third party. - Page 8 User Manual AW3010A proved to have its own quality problems during the warranty period, the company will provide free maintenance or replacement. The user must meet the following conditions: 1) The purchaser must notify the company of the defect in writing within 14 days of discovery.
