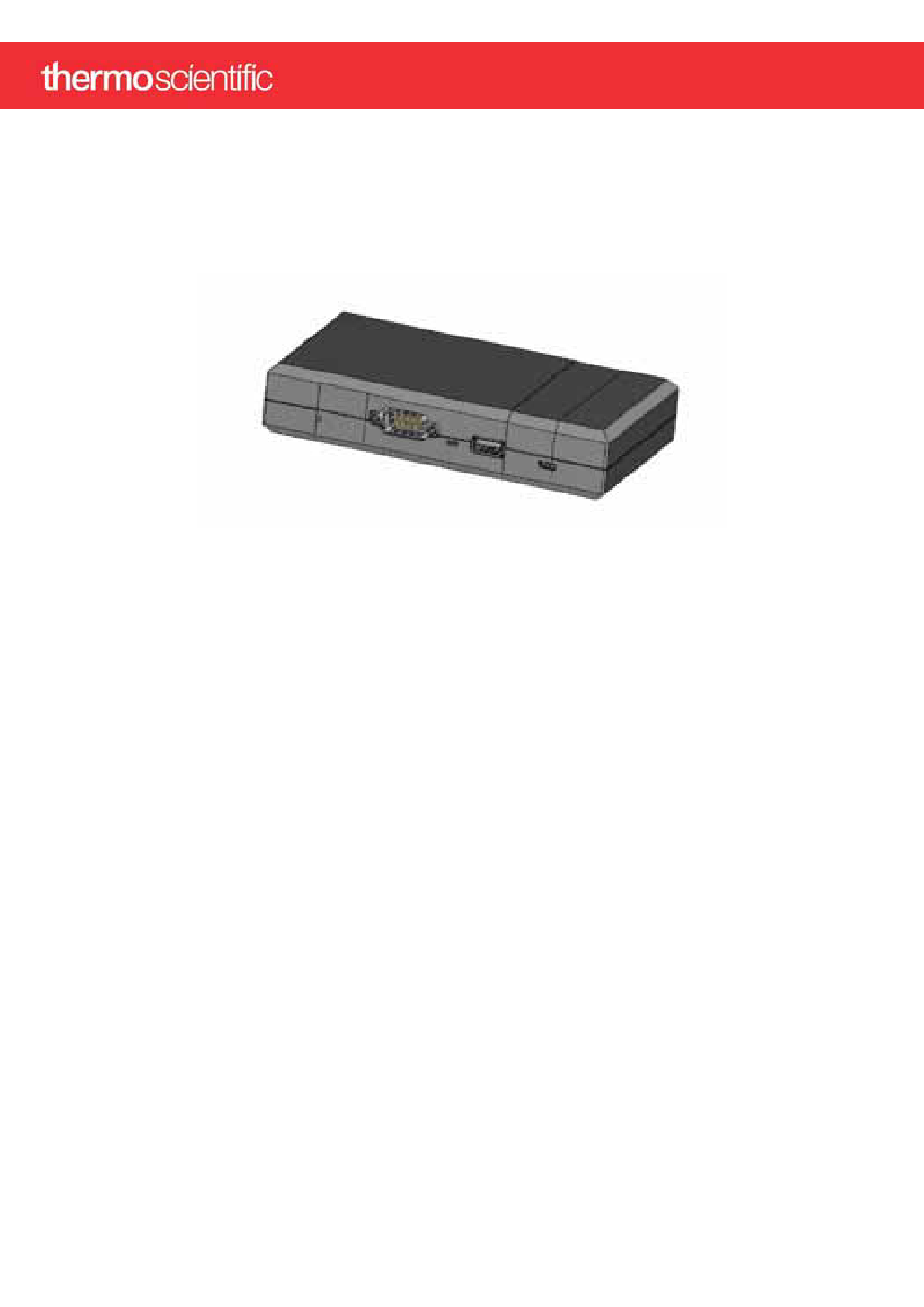

- Page 1 Thermo Scientific HERAsafe/Maxisafe 2030i, HERAsafe 2025, MSC Advantage, 1300 series A2, 1500 series A2 Biological Safety Cabinets (BSC) User Manual KIT OPC UA Gateway 50170062_Rev._ October 2023...
- Page 2 2023 Thermo Fisher Scientific Inc. All rights reserved. Trademarks HERAsafe™, Maxisafe™, MSC Advantage™ are registered trademarks of Thermo Scientific. Thermo Scientific is a brand of Thermo Fisher Scientific Inc. All other trademarks mentioned in the operating instructions are the exclusive property of the respective manufacturers.
-
Page 3: Table Of Contents
Load update........................3-5 Factory Reset ........................3-6 Chapter 4 Operation ..........................4-1 Chapter 5 Maintenance ........................5-1 Chapter 6 Shut-Down/Disposal ......................6-1 Chapter 7 Codes and Technical Specifications................7-1 OPC UA data register ......................7-1 System requirements......................7-2 Thermo Scientific... -
Page 4: Chapter 0 Preface
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This ISM device complies with Canadian ICES-001. Thermo Scientific... -
Page 5: Requirements Regarding Personnel
WARNING Operation and maintenance is only permitted and may only be carried out by qualified, trained and sufficiently instructed personnel. Thermo Scientific... -
Page 6: Responsibility Of The Operator
• that the specified maintenance intervals are adhered to. • that the device shall only be operated in a clean, dry, orderly and suitable environment. • that it shall be ensured that unauthorized persons do not gain access to the device. Thermo Scientific... -
Page 7: Applicability Of The Instructions
• the device is not modified, • only original spare parts and accessories that have been approved by Thermo Fisher Scientific are used, • inspections and maintenance are performed at the specified intervals. Thermo Scientific... -
Page 8: Explanation Of Safety Information And Symbols
CAUTION Indicates a situation which, if not avoided, could result in property damage. Note Is used for applicational hints and useful information. Additional Symbols for Safety Information Wear safety gloves! Wear safety goggles! Biohazard! Electric shock! Danger of crushing! Thermo Scientific... -
Page 9: General Safety Instructions
If you wish to secure the device using magnetic holders, make sure to mount them on a suitable surface! Wipe the surface dry and clean if necessary. CAUTION Risk of damage to the device due to high humidity. Do not operate the device at humidity levels exceeding 80%. Thermo Scientific... -
Page 10: Correct Use
OPC UA client (control systems, lab management software) as OPC UA server. This device is designed for professional use only and may only be operated by qualified personnel. This gateway may only be operated in combination with a Biological Safety Cabinet. Thermo Scientific... - Page 11 Preface Correct Use Thermo Scientific...
-
Page 12: Scope Of Delivery
Country specific power supply adapter for: Identification Euro 1847556 United Kingdom (UK) 1847544 United States of America/Japan (USA/JPN) 1847554 Australia (AUS) 1847553 Argentina (ARG) 1847548 Brazil (BRA) 1847551 India (IND) 1847547 Korea (KOR) 1847545 South Africa (ZA) 1847549 Thermo Scientific... -
Page 13: Chapter 2 Description
Continuously lit in the event of a fault and during factory reset or when no device is connected. No communication with BSC possible. Blinks green During system start-up and during communication with BSC LED blinks in time with the cycle time configured. Thermo Scientific... -
Page 14: Interfaces
Description Interfaces Interfaces Figure 2-1. Overview of connection area Connection Explanation Device SUB-D (9-pin) Old BSC devices USB type A New BSC devices USB Micro Power Supply Ethernet; RJ45 Customer networks, PCs Factory reset button Thermo Scientific... -
Page 15: Chapter 3 Start-Up
• Open the Web interface of the gateways via a Web browser (Microsoft Edge, Google Chrome, Mozilla Firefox, etc.) using the address https://192.168.7.1 When the Web interface is accessible a warning appears in the display (Fig. 3-1). A direct link to the gateway is established. • Click “Advanced”. Thermo Scientific... - Page 16 (see Fig. 3-2). Figure 3-2. Display after clicking on “Advanced” • If the gateway is accessible, wait until the connection to the IP address has been made to begin configuration. The Web interface appears (Fig. 3-3). Thermo Scientific...
- Page 17 Note The configuration serves to integrate the OPC UA servers in the network. Only in this way can an OPC UA client (e.g. in the form of a lab management system) read the data. • Interrupt the connection to the PC and perform a mains reset. Thermo Scientific...
-
Page 18: Start-Up With Biological Safety Cabinet
Enter the server URL to create the OPC link: opc.tcp://<hostname>:<Port> (Default Port 4840) • If connection is not possible using the host name, create the link using the IP address: opc.tcp://<IP-Adresse>:<Port> (Default Port 4840) The following safety certificate is used: SecurityMode:Sign&Encrypt Security Policy:Basic256Sha256 Thermo Scientific... -
Page 19: Load Update
First, access must be authorized using the access data stored in the configuration server. The user name is always “ipgw”. Once login is successful, two buttons are available (see Figure 4-5): When using the connection via the Ethernet connection. When using the connection via the supplied µUSB cable. Thermo Scientific... -
Page 20: Factory Reset
• Press the “S1” button until the red LED lights up and remains lit (approx. 15 seconds). Factory reset is performed. The gateway restarts. • Perform another mains reset. The configuration Web server is now accessible again as described under Initial configuration. Thermo Scientific... - Page 21 • Re-configure the gateway. Note Note that once communication with the main device has been established, the green LED continues to blink cyclically at intervals. It can take up to 10 seconds before the LED begins to blink. Thermo Scientific...
-
Page 22: Chapter 4 Operation
Operation CAUTION Risk of data loss Make sure that the USB cable remains attached to the device at all times during operation. If it is disconnected you may lose data, as the BSC provides no intermediate storage. Thermo Scientific... -
Page 23: Chapter 5 Maintenance
The operation of a defective power supply unit can lead to an electric shock hazard for the user. Perform a visual inspection of the power supply housing at least once a year and replace it with a new one if necessary. Thermo Scientific... -
Page 24: Chapter 6 Shut-Down/Disposal
Shut-Down/Disposal WEEE Conformity: This product is required to comply with the European Union’s Waste Electrical & Electronic Equipment (WEEE) Directive 2012/19/EC. It is marked with the adjacent symbol. Thermo Scientific... -
Page 25: Chapter 7 Codes And Technical Specifications
Receptacles switched on Boolean True/False GFI tripped Boolean True/False Light switched on Boolean True/False Solenoid valve switched on Boolean True/False Disinfection active Boolean True/False Fans switched off Boolean True/False Is Present Boolean True/False Pane-Position Front pane closed Boolean True/False Thermo Scientific... -
Page 26: System Requirements
Front pane not in working Boolean True/False position Device-Properties NTP-Server-IP address String NTP-Server synchronized Boolean True/False Serial Number Gateway String Gateway SW version String BSC SW version String MAC address gateway String System requirements Windows 10 Thermo Scientific...
