Novanta JADAK JE-22X User Manual

Imager engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
JADAK
Imager Engine
User's Manual
Rev 04012021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JADAK JE-22X and is the answer not in the manual?

Questions and answers

Related Manuals for Novanta JADAK JE-22X

Summary of Contents for Novanta JADAK JE-22X

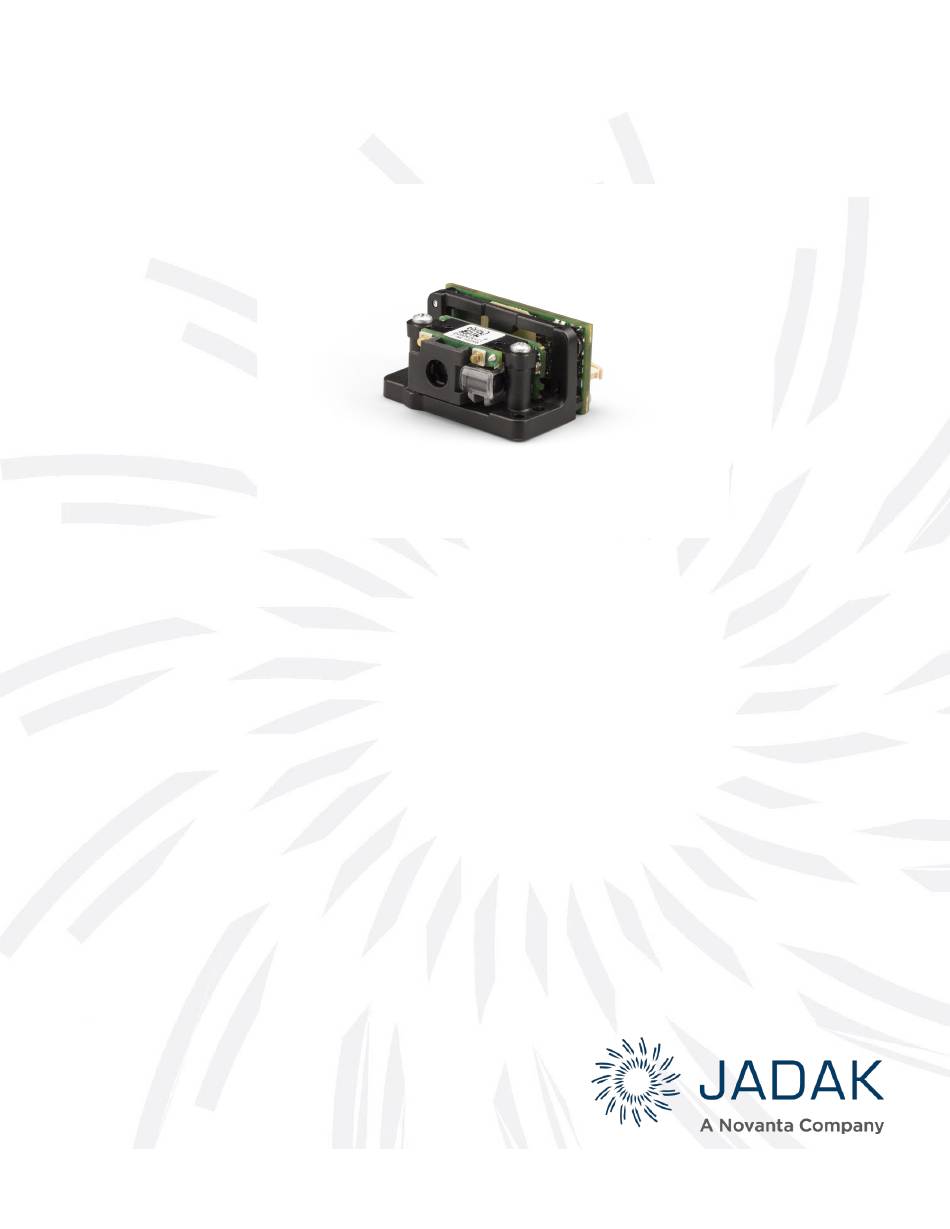

  • Page 1 ® JADAK Imager Engine User’s Manual Rev 04012021...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 - Getting Started Introduction ..........................9 About This Manual ........................9 JE-222/223 Class 2 Laser Warning ................... 9 Reading Techniques .........................10 Chapter 2 - Interface Settings Connecting the Imager Engine with an RS-232 Port ..............11 RS-232 Default Settings ......................12 RS-232 Baud Rate ......................12 RS-232 Word Length ......................13...
  • Page 3 LED – LED on Good Read ....................19 Beeper - Good Read......................19 Beeper Volume - Good Read ..................... 19 Beeper Tone - Good Read ....................20 Beeper Time - Good Read ....................20 No Reads..........................21 No Read Message ......................21 Miscellaneous Indicators......................
  • Page 4 Revision ........................... 29 Show Software Revision ..................... 29 Show Revision Time ......................29 Show Device Serial Number ....................29 Chapter 5 - Data Editing Data Editing Overview ......................30 Transmit AIM ID Character ...................... 30 Prefixes ............................ 31 Prefix Block String ......................31 Prefix Clear .........................
  • Page 5 Codabar Defaults ........................ 38 Codabar On/Off ........................38 Codabar Minimum and Maximum Length ................38 Code 11 ........................... 39 Code 11 Defaults ........................ 39 Code 11 On/Off ........................39 Code 11 Minimum and Maximum Length ................39 Code 11 Check Digit ......................40 Code 128 ..........................
  • Page 6 GS 1 Composite Code On/Off .....................45 Composite Code Minimum and Maximum Length ...............45 EAN-8/JAN 8 ..........................46 EAN-8/JAN 8 Defaults ......................46 EAN-8/JAN 8 On/Off ......................46 EAN-13/JAN 13 ........................46 EAN-13/JAN 13 Defaults .....................46 EAN-13/JAN 13 On/Off ......................46 GS1-128 (Formerly UCC-EAN128) ...................47 GS1 DataBar (Formerly RSS-14) .....................48 GS-1 DataBar Defaults ......................48 GS-1 DataBar On/Off ......................48 GS1 DataBar Limited (Formerly RSS-Limited) .................48...
  • Page 7 Matrix 2 of 5 On/Off ......................52 Matrix 2 of 5 Minimum and Maximum Length ..............52 MSI ............................53 MSI Defaults ........................53 MSI On/Off ...........................53 MSI Minimum and Maximum Length ...................53 MSI Check Digits .........................54 UPC-A ............................55 UPC-A Defaults ........................55 UPC-A On/Off ........................55 UPC-A Check Digit ......................55 UPC-E1 ............................55 UPC-E(0) ..........................56...
  • Page 8 Aztec Code ..........................59 Aztec Code Defaults ......................59 Aztec Code On/Off ......................59 Aztec Code Minimum and Maximum Length ...............59 Data Matrix ..........................60 Data Matrix Defaults ......................60 Data Matrix On/Off .......................60 Data Matrix Minimum and Maximum Length ...............60 Maxi Code ..........................61 Maxi Code Defaults ......................61 Maxi Code On/Off ........................61 Maxi Code Minimum and Maximum Length.................61 QR Code ...........................62...
  • Page 9 JADAK Imager Engine Compliance Statement ................ 67 Safety and Regulatory Notices ....................68 Appendices Appendix A1-1 Command Format ................... 69 Appendix A1-2 Command List and Standard Default Parameters ........... 72 Appendix B – Programming Chart ................... 76 Appendix C - AIM IDs ......................77 Appendix D - ASCII Conversion Chart ..................

  • Page 10: Chapter 1 - Getting Started

    Chapter 1 - Getting Started Introduction ® The Area Imager Engines from JADAK are bar code scanners that utilizes area imaging technology to read popular linear (1D), stacked linear, and matrix (2D) bar codes. With a small size, the Imager Engine can be used in a wide variety of applications, but they are especially designed for Healthcare and kiosk applications and environments.

  • Page 11: Reading Techniques

    Reading Techniques The imager has a view finder or aimer, which projects a bright red cross (some versions of the JE-222 and JE-223) or a green thick line (JE-222 and JE-223) that corresponds to the imager’s horizontal/vertical field of view. The aiming beam should be centered over the bar code, but it can be positioned in any direction for a good read.

  • Page 12: Chapter 2 - Interface Settings

    Chapter 2 - Interface Settings Connecting the Imager Engine with an RS-232 Port 1. If using an RS-232 connection, connect the serial interface cable to an interface board and to the matching port on the host (in the example image below a computer acts as the host). 2.

  • Page 13: Rs-232 Default Settings

    RS-232 Default Settings Use the command below to program the default RS-232 communication settings. This programs the Imager engine for an RS-232 interface at 115.200 baud, No Parity, 8 Data bits and 1 stop bit. Note: The Imager Engine must be power cycled after programming this interface! RS-232 Baud Rate By setting the correct Baud Rate, the data from the scanner will be sent to the terminal at the specified rate.

  • Page 14: Rs-232 Word Length

    RS-232 Word Length The 232WORD command defines the settings for Parity, Data bits and Stop bits. Parity provides a means of checking character bit patterns for validity. For Parity, you have the option of Even, Odd, None and Mark. Default = None. Data Bits sets the word length at 7 or 8 bits of data per character.

  • Page 15: Connecting The Imager Engine With Usb Port

    Connecting the Imager Engine with USB Port Note: These instructions are for use with a Micro USB cable. 1. If you are using USB Serial Comm Port Emulation interface, you must first load the driver for that interface onto your computer. The driver is available from your JADAK technical support contact.

  • Page 16: Usb Interface Options

    USB Interface Options USB HID Keyboard Emulation Scan the following code to program the Imager Engine for USB HID Keyboard mode. NB: you’ll need to have a hardware trigger-line set up in order to operate the engine in USB HID Mode for scanning programming barcodes, as you won’t be able to send any serial commands anymore! This is not available when using a micro-USB cable.

  • Page 17: Keyboard Country Layout

    Keyboard Country Layout When the Imager Engine is set to USB HID Keyboard Emulation, use the following KBD_CTY commands or programming barcodes to set the specific Keyboard layout for your language. Default = United States. Note: These commands are not applicable for RS-232 Imager Engines. * United States: United Kingdom: Belgium:...

  • Page 18: Keyboard Control Character Output

    Keyboard Control Character Output Use these commands to enable or disable sending a text string instead of a control character. For instance, instead of sending out an actual Carriage Return (hex: 0D), it will send [CR] as readable ASCII text. Default = Disabled. Note: These commands are not applicable for RS-232 Imager Engines.

  • Page 19: Default Options

    Default Options Custom Default Settings Use the following command to revert the unit to its custom default settings. Note: The Imager Engine must be power cycled after programming this command! To (re-)set custom defaults, please contact JADAK. JADAK Imager Engine User’s Manual Page 18...

  • Page 20: Chapter 3 - Input/Output Settings

    Chapter 3 - Input/Output Settings Good Read Indicators LED – LED on Good Read The LED indicator can be enabled or disabled in response to a good read. Default = Enabled. * Enable Disable Beeper - Good Read The beeper may be programmed On or Off in response to a good read. Turning this option off only turns off the beeper’s response to a good read indication.

  • Page 21: Beeper Tone - Good Read

    Beeper Tone - Good Read Scan one of the following codes to set the tone or pitch of the Good Read beep. Default = Medium. * Medium High Beeper Time - Good Read Scan one of the following codes to set the duration of the Good Read beep. Default = Medium.

  • Page 22: No Reads

    No Reads Not every trigger event will result in a successful barcode read. When there is no barcode read after a trigger release, the engine may return a no read signer in the form of the characters NR (which can be customized). Scan one of the following codes to enable or disable the No Reads message.

  • Page 23: Miscellaneous Indicators

    Miscellaneous Indicators Beeper – Beep on [BEL] Scan one of the following codes to enable or disable a beep sound on when a [BEL] is sent from the host to the scanner. Default = Disabled. Enable * Disable Beeper – Power Up Beep Scan one of the following codes to enable or disable the power-up beep cycle of the scanner.

  • Page 24: Aimer Delay

    Aimer Delay The imager engine’s aimer allows a delay time for the user to aim the engine before actual scanning begins. During this delay, the aiming light will appear, but the scanner’s illumination won’t show, until the delay time has passed. During this delay, barcodes cannot be scanned. This command sets the Aimer Delay Time in steps of 1 millisecond from 1ms up to 4000ms (4 seconds).

  • Page 25: Trigger Commands

    Trigger Commands In order to scan barcodes, you need to send a trigger command. This can be done in various ways. You can activate the imager by sending the trigger command TRGON serially or by using the trigger line/pin. Several supporting commands are provided to set the allowed trigger time-out (e.g. the maximum time that the scanner will take to keep looking for a barcode) on the next page.

  • Page 26: Trigger Time Out

    Trigger Time Out This sets the maximum time how long the trigger procession continues during a scan attempt. This command is not valid in Presentation Trigger Mode. Several commonly used Trigger Time Out menu command barcodes are included below. Use the command TRGTIME x (where ‘x’ is a value between 0 and 300.000 in milliseconds) to set the time between 1ms and 300 seconds.

  • Page 27: Good Read Delay

    Good Read Delay This sets the time period before the imager engine can read another bar code. Several commonly used good read delay menu command barcodes are included below. Default time = 0 Seconds. Note: Good Read Delay is most effective when in Presentation Mode or when Multiple Symbol Mode is turned on in combination with another Trigger Mode.

  • Page 28: Re-Read Delay

    Re-read Delay This sets the time period before the imager engine can read the same bar code a second time. Setting a proper re-read delay time protects against accidental re-reads of the same bar code. Longer delays are effective in minimizing accidental rereads at POS (point of sale). Use shorter delays in applications where repetitive bar code scanning is required.

  • Page 29: Auto Exposure

    Auto Exposure Allow the imager to control gain and exposure settings automatically. Default = Enabled. Disable * Enable Maximum Exposure Set the maximum allowable exposure for the unit between 1 and 7874. Several commonly used Max Exposure menu command barcodes are included below. If a different value other than those provided is needed, it can be set either by sending the serial command EXP_MAX x (where ‘x’...

  • Page 30: Chapter 4 - Utilities

    Chapter 4 - Utilities This chapter describes some utilities that can tell more about certain aspects of the Imager Engine scanner. Report the list of available Programming Commands All of the supported serial commands of the Imager Engine, along with a short description and the current setting value and its range will be serially output when this command is used.

  • Page 31: Chapter 5 - Data Editing

    Chapter 5 - Data Editing Data Editing Overview When a bar code is scanned, additional information is sent to the host computer along with the bar code data. This group of bar code data and additional, user-defined data is called a “message string.”...

  • Page 32: Prefixes

    Prefixes The Prefix character(s) is/are user-definable data characters that can be sent before the scanned data. To enable or disable prefixes, scan the appropriate code below. Default = disabled. Enable * Disable To set all prefix parameters to their default values, use the following code: Prefix Block String Use the command PREBLOK in combination with two (or more) hexadecimal digits to define a specific ASCII character (or set of characters) as Prefix or by scanning the barcode below...

  • Page 33: Suffixes

    Suffixes The Suffix character(s) is/are user-definable data characters that can be sent after the scanned data. To enable or disable suffixes, scan the appropriate code below. Default = Disabled. Enable Suffixes * Disable Suffixes To set the suffix parameters to their default values, use the following code: Suffix Block String Use the command SUFBLOK in combination with one or more sets of two hexadecimal digits to define a specific ASCII character (or set of characters) as Suffix or by scanning the barcode...

  • Page 34: Chapter 6 - Imaging

    Chapter 6 - Imaging The Imager Engine can also be used to take images with as it behaves like a digital camera. This can be very helpful in applications such as patient identity verification, signature capturing, or any other situation where you need to take an image. Illumination Brightness Use the command LEDSPWR to set the Illumination (LEDs Power) between ‘Off’...

  • Page 35: Snap An Image

    Snap an Image Use the command IMGSNAP to snap/take an image to with the Imager Engine Scanner. You can add arguments for specific usage: = use illumination = Picture Type (0=decoding, 1=photo, 2=manual) = Gain value (x=1|2|4|8) (note: only works when P=2) = beep on when snapping an image (0=off) = wait for trigger (0=off).

  • Page 36: Decode Window

    Decode Window Decode Windowing is a functionality which allows defining a limited area within the scanner’s Field of View, where to look for a barcode, to improve performance. The idea is that instead of having to search the whole full-sized image for a bar code, the decoder only has to focus on a smaller area, thereby increasing the performance.

  • Page 37: Decode Window Left/Right

    Decode Window Left/Right The Left and Right boundaries for the decode window can be set either by sending the serial command shown under the barcodes below with a value between 0 and 843, or by scanning one of the barcodes below and then set the boundary pixel value by scanning the digit codes and the SAVE barcode in Appendix Please contact JADAK if assistance is needed.

  • Page 38: Chapter 7 - Symbologies

    Chapter 7 - Symbologies This programming section contains menu selections for the following symbologies. • All Symbologies • Aztec Code • GS-1 Databar Limited (RSS Limited) • Codabar • GS-1 Databar Expanded (RSS Expanded) • Code 11 • Interleaved 2 of 5 •...

  • Page 39: Linear Symbologies

    Linear Symbologies Codabar Codabar Defaults Set all Codabar settings to their default configuration with this code. Codabar On/Off Scan one of the codes below to enable or disable Codabar. Default = Enabled. * Enable Disable Codabar Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed Codabar barcodes.

  • Page 40: Code 11

    Code 11 Code 11 Defaults Set all Code 11 settings to their default configuration with this code/command. Code 11 On/Off Scan one of the codes below to enable or disable Code 11. Default = Disabled. Enable * Disable Code 11 Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed Code 11 barcodes.

  • Page 41: Code 11 Check Digit

    Code 11 Check Digit The scanner may look for a check digit to decide if the code is valid. Code 11 usually has 1 check digit and some codes have 2 check digits. Default = 1 Check Digit Validate. * 1 Check Digit Validate 2 Check Digits Validate JADAK Imager Engine User’s Manual Page 40...

  • Page 42: Code 128

    Code 128 Code 128 Defaults Code 128 On/Off Scan one of the codes below to enable or disable Code 128 decoding. Default = Enabled. * Enable Disable Code 128 Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length.

  • Page 43: Code 39

    Code 39 Code 39 Defaults Code 39 On/Off Scan one of the codes below to enable or disable Code 39. Default = Enabled. * Enable Disable Code 39 Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed Code 39 barcodes.

  • Page 44: Code 39 Check Digit

    Code 39 Check Digit Use the following bar codes to allow scanning of all Code 39’s (No Check Digits) or only allow codes with a Check Digit. Default = No Check Digits. Enable, but don’t transmit * Disable Enable and transmit Code 39 Convert to Code 32 / Pharmacode Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry.

  • Page 45: Code 93

    Code 93 Code 93 Defaults Set all Code 93 settings to their default configuration with this code. Code 93 On/Off Scan one of the codes below to enable or disable Code 93. Default = Enabled. * Enable Disable Code 93 Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed Code 93 barcodes.

  • Page 46: Composite Code

    Composite Code GS 1 Composite Code On/Off Linear codes are combined with a unique 2D composite component to form a new class called GS1 Composite symbology. GS1 Composite symbologies allow for the co- existence of symbologies already in use. Scan one of the codes below to enable or disable Composite Code. Default = Disabled. Enable * Disable Composite Code Minimum and Maximum Length...

  • Page 47: Ean-8/Jan 8

    EAN-8/JAN 8 EAN-8/JAN 8 Defaults Set the EAN-8 settings to their default configuration with this code. EAN-8/JAN 8 On/Off Scan one of the codes below to enable or disable EAN-8. Default = Enabled. * Enable Disable EAN-13/JAN 13 EAN-13/JAN 13 Defaults Set the EAN-13 settings to their default configuration with this code.

  • Page 48: Gs1-128 (Formerly Ucc-Ean128)

    GS1-128 (Formerly UCC-EAN128) Scan one of the codes below to enable or disable GS1-128 Decoding. Default = Enabled. * Enable Disable JADAK Imager Engine User’s Manual Page 47...

  • Page 49: Gs1 Databar (Formerly Rss-14)

    GS1 DataBar (Formerly RSS-14) GS-1 DataBar Defaults Set the GS-1 Databar settings to their default configuration by scanning this code. GS-1 DataBar On/Off Scan one of the codes below to enable or disable GS1 DataBar. Default = Enabled. * Enable Disable GS1 DataBar Limited (Formerly RSS-Limited) GS-1 DataBar Limited Defaults...

  • Page 50: Gs1 Databar Expanded (Formerly Rss-Expanded)

    GS1 DataBar Expanded (Formerly RSS-Expanded) GS-1 DataBar Expanded Defaults Set the GS-1 Databar settings to their default configuration by scanning this code. GS-1 DataBar Expanded On/Off Scan one of the codes below to enable or disable GS1 DataBar Expanded. Default = Enabled. * Enable Disable GS-1 Databar Expanded Minimum and Maximum Length...

  • Page 51: Interleaved 2 Of 5

    Interleaved 2 of 5 Interleaved 2 of 5 Defaults Set all Interleaved 2 of 5 settings to their default configuration with this command. Interleaved 2 of 5 On/Off Scan one of the codes below to enable or disable Interleaved 2 of 5. Default = Enabled.

  • Page 52: Interleaved 2 Of 5 Check Digit

    Interleaved 2 of 5 Check Digit The scanner may look for a check digit to decide if the code is valid. Interleaved 2 of 5’s USS (Uniform Symbology Specification) Check digit can be validated and if desired, transmitted too. Default = Disabled. * Disabled USS Check validate USS Check validate &...

  • Page 53: Matrix 2 Of 5

    Matrix 2 of 5 Matrix 2 of 5 Defaults Set all Matrix 2 of 5 settings to their default configuration with this command. Matrix 2 of 5 On/Off Scan one of the codes below to enable or disable Matrix 2 of 5. Default = Disabled. Enable * Disable Matrix 2 of 5 Minimum and Maximum Length...

  • Page 54: Msi

    MSI Defaults Set all MSI settings to their default configuration with this command. MSI On/Off Scan one of the codes below to enable or disable MSI. Default = Disabled. Enable * Disable MSI Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed MSI barcodes.

  • Page 55: Msi Check Digits

    MSI Check Digits With MSI symbols, one check digit is mandatory and always verified by the reader. The second check digit is optional. If the MSI codes include two check digits, scan the Two MSI Check Digits bar code to enable verification of the second check digit.

  • Page 56: Upc-A

    UPC-A UPC-A Defaults Set the UPC-A settings to their default configuration with this command. UPC-A On/Off Scan one of the codes below to enable or disable UPC-A. Default = Enabled. * Enable Disable UPC-A Check Digit The check digit is the last character and is used to verify data integrity. This digit is always checked but it may be chosen whether or not to transmit it.

  • Page 57: Upc-E(0)

    UPC-E(0) UPC-E(0) Defaults Set the UPC-E(0) settings to their default configuration with this code. UPC-E On/Off Scan one of the codes below to enable or disable UPC-E(0). Default = Enabled. * Enable Disable UPC-E(0) Check Digit The check digit is the last character and is used to verify data integrity. This digit is always checked but it may be chosen whether or not to transmit it.

  • Page 58: 1D Stacked Symbologies

    1D Stacked Symbologies PDF417 PDF417 Defaults To set the default values for PDF417, scan this code: PDF417 On/Off Scan one of the codes below to enable or disable PDF417. Default = Enabled. * Enable Disable PDF417 Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed PDF417 barcodes.

  • Page 59: Micropdf417

    MicroPDF417 MicroPDF417 Defaults To set the default values for Micro PDF417, scan this code: MicroPDF417 On/Off Scan one of the codes below to enable or disable Micro PDF417. Default = Disabled. Enable * Disable MicroPDF417 Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed MicroPDF417 barcodes.

  • Page 60: 2D Matrix Symbologies

    2D Matrix Symbologies Aztec Code Aztec Code Defaults To set the default values for Aztec Code, scan this code: Aztec Code On/Off Scan one of the codes below to enable or disable Aztec Code. Default = Enabled. * Enable Disable Aztec Code Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed Aztec barcodes.

  • Page 61: Data Matrix

    Data Matrix Data Matrix Defaults To set the default values for Data Matrix, scan this code: Data Matrix On/Off Scan one of the codes below to enable or disable Data Matrix. Default = Enabled. * Enable Disable Data Matrix Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed Data Matrix barcodes.

  • Page 62: Maxi Code

    Maxi Code Maxi Code Defaults To set the default values for Maxi Code, scan this code: Maxi Code On/Off Scan one of the codes below to enable or disable Maxi Code. Default = Disabled. Enable * Disable Maxi Code Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed Maxi Code barcodes.

  • Page 63: Qr Code

    QR Code QR Code Defaults To set the default values for QR Code, scan this code: QR Code On/Off Scan one of the codes below to enable or disable QR Code. Default = Enabled. * Enable Disable QR Code Minimum and Maximum Length Use the following commands in combination with numerical values to set the minimum and maximum length for allowed QR Code barcodes.

  • Page 64: Chapter 8 - Product Specifications

    Chapter 8 - Product Specifications Imager Engine (JE-222, JE-223) Product Specifications Parameter Specification Dimensions (assembled imager) Height 0.76 inches (19.4 mm) Depth 1.11 inches (28.2 mm) Width 1.57 inches (39.8 mm) Weight 0.7 ounces (<20g) Aimer Illumination LEDs 617nm visible Red LEDs Aiming LEDs 528 nm visible Green LED Aiming Laser...

  • Page 65: Chapter 9 - Maintenance

    Chapter 9 - Maintenance Repairs Repairs and/or upgrades are not to be performed on this product. These services are to be performed by JADAK only. Please contact JADAK for your service needs. Interface Cable Inspect the imager’s interface cable and connector for wear or other signs of damage. A badly worn cable or damaged connector may interfere with scanner operation.

  • Page 66: Chapter 10 - Customer Support

    Chapter 10 - Customer Support Obtaining Technical Assistance or Factory Service JADAK provides assistance and service for all its products. To obtain warranty or non-warranty service, return the unit to JADAK (postage paid) with a copy of the dated purchase record attached.

  • Page 67: Limited Warranty

    Limited Warranty JADAK LLC (“JADAK”) warrants the Imager Engine to be free from defects in materials and workmanship and to conform to JADAK’s published specifications applicable to the products purchased at the time of shipment. This warranty does not cover the interface cable and does not include any JADAK product which is (i) improperly installed or used;...

  • Page 68: Statement Of Agency Compliance

    Statement of Agency Compliance This Imager Engine complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this Imager Engine may not cause harmful interference, and (2) this Imager Engine must accept any interference received, including interference that may cause undesired operation.

  • Page 69: Safety And Regulatory Notices

    Safety and Regulatory Notices Warning Labels and Markings Symbol Meaning Warning Description & Abbreviations Consult product documents for additional information Warning on this topic. Indicates compliance with the Council Directive CE Mark 93/68/EEC for the European Union. Indicates that electrical and electronic equipment WEEE should be disposed of properly and separate from other types of waste.

  • Page 70: Appendices

    Appendices Appendix A1-1 Command Format The Imager Engine accepts a wide range of configuration commands. Commands can be sent to the imager whether by scanning a menu bar symbol or via Serial commands sent from the host machine. The command format is as follows: Send Command: #<parameter><space><argument><specifier>...
  • Page 71 Query Commands This section will describe in more detail how to use the query commands. Several special characters can be used to query the device about its settings: What is the default value for the setting? What is the device’s current ROM value for the setting? What is the device’s current RAM value for the setting? What is the range of possible values for the setting? Examples:...
  • Page 72 Table A1-1: Example Output from the “HELP” command #Cmds Description Default Range #HELP Display command list #XMITCID Transmit Code ID (0-OFF, 1-AIM ID, 2-SYMBOL ID ) #NORDMSG Message output by the scanner for NO READ 100 CHARS MAX #DEFAULT Restore All Settings To Custom Defaults #DNLDAPP Download a firmware (*.moc) file via XModem #HOSTCFG...

  • Page 73: Appendix A1-2 Command List And Standard Default Parameters

    Appendix A1-2 Command List and Standard Default Parameters Command Range (if applicable) Default Value Description 128DEFA Default Code 128 parameters 128ENAB 0 to 1 Enable Code 128 128MAXL 0 to 55 Max symbol length 128MINL 0 to 55 Min symbol length 232BAUD 300-115200 115200...
  • Page 74 Command Range (if applicable) Default Value Description CBRDEFA Default Codabar Parameters CBRENAB 0 to 1 Enable Decoding Codabar CBRMAXL 2 to 55 Max Codabar Symbol Length CBRMINL 2 to 55 Min Codabar Symbol Length COMENAB 0 to 1 Enable Composite Code COMMAXL 1 to 2435 2435...
  • Page 75 Command Range (if applicable) Default Value Description LEDSPWR 0 to 3 Illumination Intensity Percentage M25DEFA Default M2of5 parameters M25ENAB 0 to 1 Enable Code m2of5 Decoding M25MAXL 1 to 55 Max M 2of5 Symbol Length M25MINL 1 to 55 Min M 2of5 Symbol Length MAXDEFA Default Maxi Code Parameters MAXENAB...
  • Page 76 Command Range (if applicable) Default Value Description RSEMINL 4 to 74 RSE-Expanded Min Symbol Length RSLDEFA Default RSS-Limited Parameters RSLENAB 0 to 1 Enable RSS-limited (GS1 Databar Limited) RSSDEFA Default RSS-14 Parameters RSSENAB 0 to 1 Enable RSS-14 (GS1 Databar) Decoding SUFBLOK Suffix Block SUFCLAL...

  • Page 77: Appendix B - Programming Chart

    Appendix B – Programming Chart After you’re done with setting the value with the barcodes above, finish with scanning SAVE: JADAK Imager Engine User’s Manual Page 76...

  • Page 78: Appendix C - Aim Ids

    Appendix C - AIM IDs Barcode AIM ID AIM ID Modifiers Code 39, Code 39 Full ASCII, 0 No check character or Full ASCII processing. Code 32 1 Reader has checked one check character. 3 Reader has checked and stripped check character. 4 Reader has performed Full ASCII character conversion.
  • Page 79 Barcode AIM ID AIM ID Modifiers No option specified at this time. Always transmit 0. GS1 DataBar and GS1 DataBar Limited transmit with an Application Identifier “01”. GS1 DataBar Family Note: In GS1-128 emulation mode, GS1 DataBar is transmitted using Code 128 rules (i.e., ]C1). Example: A GS1 DataBar bar code 0110012345678902 is transmitted as ]e00110012345678902.
  • Page 80 Barcode AIM ID AIM ID Modifiers TLC 39 0 Check digits are sent. 1 No check digit is sent. Example: An MSI bar code 4123, with a single check digit checked, is transmitted as]M14123 QR Code, MicroQR 0 Model 1 symbol. 1 Model 2 / MicroQR symbol, ECI protocol not implemented.

  • Page 81: Appendix D - Ascii Conversion Chart

    Appendix D - ASCII Conversion Chart For these Imager engines, use the 2 digit Hex values to create an ASCII character. E.g., to create an F, use ‘46’ and to create an f, use ‘66’. The first 32 characters are unprintable. Char Char Char...
  • Page 82 Appendix D – Extended ASCII Conversion Chart Char Char Char Char € À à □ ¡ Á á ‚ ¢ Â â ƒ £ Ã ã „ ¤ Ä ä … ¥ Å å † ¦ Æ æ ‡ § Ç...

  • Page 83: Appendix E - Sample Bar Codes

    Appendix E - Sample Bar Codes UPC-A Codabar Code 128 Code 39 Code 93 Interleaved 2 of 5 PDF-417 Composite Code MicroPDF Aztec Data Matrix QR Code MaxiCode JADAK Imager Engine User’s Manual Page 82...
  • Page 84 USA Office EMEA Office 7279 William Barry Blvd. Parkring 57-59 North Syracuse, NY 85748 Garching (bei München) 13212-3349 Germany Phone: +1 315.701.0678 Phone: +49 (0)89-31 707-0 Fax: +1 315.701.0679 Fax: +49 (0)89-31 707-222 www.jadaktech.com e-mail: info@jadaktech.com e-mail: info@jadaktech.com JADAK Imager Engine UM 11/28/19...
