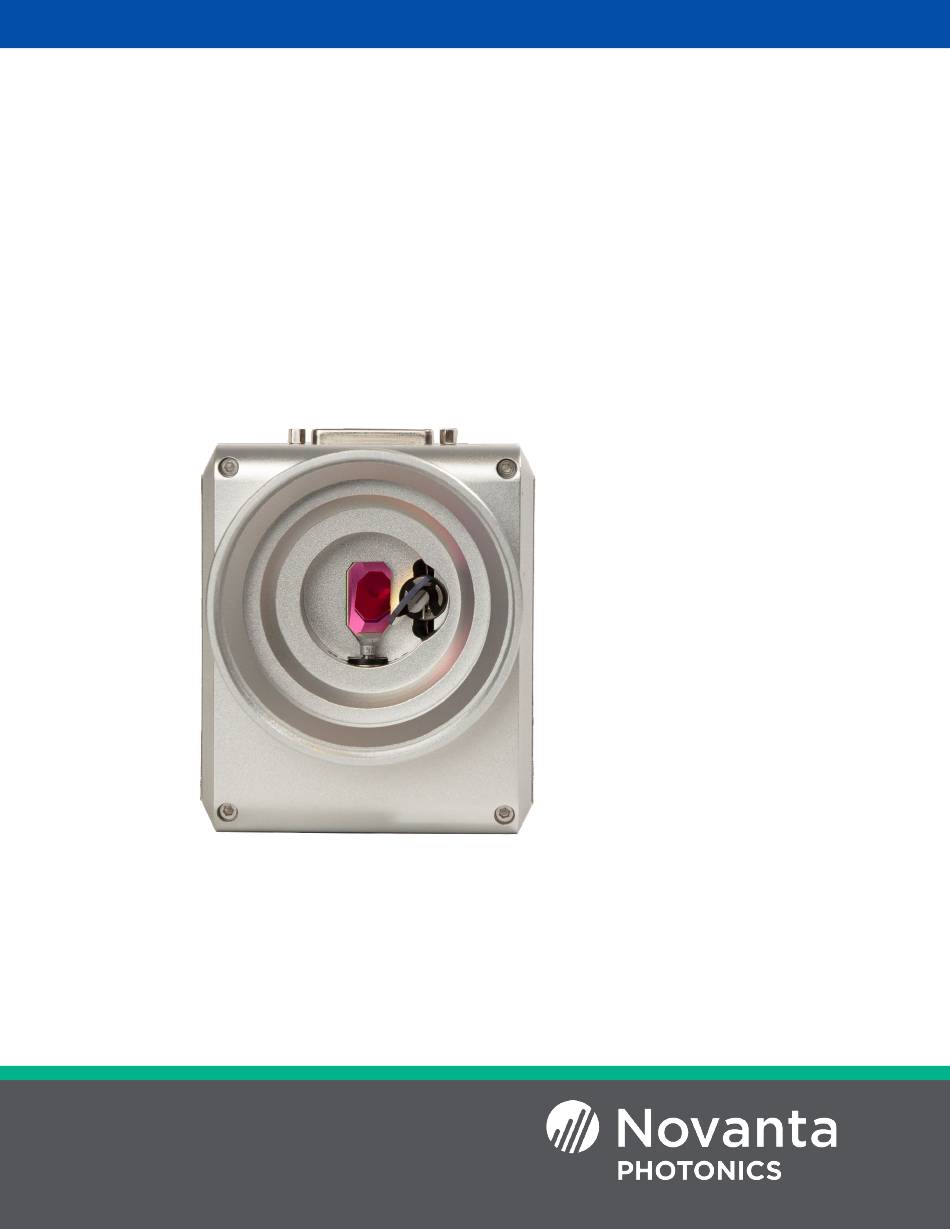

- Page 1 MOVIA, 2-Axis Scan Head User Manual Read carefully before using. Retain for future reference. ENGINEERED BY CAMBRIDGE TECHNOLOGY...
-
Page 2: Table Of Contents
Install the F-Theta Lens and Required Lens Spacer ......16 3.3.7 Perform Scan Head Calibration..............16 3.4 Set up for Initial Use ......................18 Troubleshooting and Maintenance Troubleshooting ........................19 Optic Care ..........................21 Warranty Statement MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... - Page 3 Table 1: Cable Channel Usage ......................11 Table 2: Pin Assignments ........................12 Table 3: Recommended Delay Settings for Initial Use ............18 Table 4: Scan Head Symptoms, Causes, and Recommended Actions ......19 MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03...
-
Page 4: Important Information
Indicates a hazardous situation which, if not avoided, will result in serious injury or death. Its use should be limited to the most extreme situations. WARNING Indicates a hazardous situation which, if not avoided, could result in serious injury or death. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... -
Page 5: Safety Labels
• Keep the equipment sealed until it is located at a proper static control station. A proper static control station should include: • A soft grounded conductive tabletop or grounded conductive mat on the tabletop. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... -
Page 6: Customer Support
After consulting this manual, please contact one of our worldwide offices between 9 AM and 5 PM local time. Americas, Asia Pacific Novanta Headquarters, Bedford, USA Phone: +1-781-266-5700 Email: photonics@novanta.com MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... - Page 7 Novanta Sales & Service Office, Shenzhen, China Phone: +86-755-8280-5395 Email: photonics.china@novanta.com Novanta Sales & Service Office, Suzhou, China Phone: +86-512-6283-7080 Email: photonics.china@novanta.com Japan Novanta Service & Sales Office, Tokyo, Japan Phone: +81-3-5753-2460 Email: photonics.japan@novanta.com MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03...
-
Page 8: Product Overview
PRODUCT OVERVIEW MOVIA scan heads are used as part of a galvanometer-based laser system and steer optical beams on a XY image field (2D) for all possible laser applications. See Figure 1 Figure 1: System Diagram PRINCIPLES OF OPERATION In a MOVIA scan head, two galvanometers scanners with mirrors synchronize and rotate to steer the laser beam across the XY field. -
Page 9: Product Use
2.2 Product Use Figure 2: Beam Direction PRODUCT USE The MOVIA scan head is delivered as an OEM component for integration into a laser scanning system. Customers must know and apply the rules and regulations for safe operation of lasers when installing and operating the scan head and the system in which it is used. -
Page 10: Figure 3: Product Label
2 Product Overview 2.3 Product Configuration Figure 3: Product Label MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... -
Page 11: Installation
INSTALLATION REQUIRED SYSTEM PARTS You will need the following components to set up the MOVIA scan head with the galvanometer-based laser system: • Mounting Plate • Mounting Hardware (4× M5 screws, 2× 4 mm dowel pins) • Beam Conditioning Optic, such as a Beam Expander or Collimator (optional) •... -
Page 12: Recommended Accessories (Customer Supplied)
RECOMMENDED ACCESSORIES (CUSTOMER SUPPLIED) LASER SHUTTER The MOVIA scan head does not contain a shutter or device to decrease the laser output power. As each laser is unique, it is your responsibility to install a shutter or attenuator as required; please refer to US FDA Code of Federal Regulations (CFR) 1040.10 for additional information. -
Page 13: Installation Instructions
MOUNT THE SCAN HEAD Attach the scan head to the mounting plate using the mounting hardware. The scan head has 2 metric dowel pin holes and 4 tapped mounting holes. See Figure 5. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... -
Page 14: Attach The Power/Data Cable To The Scan Head
3.3.3 ATTACH THE POWER/DATA CABLE TO THE SCAN HEAD With power off, use the power/data cable to connect the MOVIA scan head to the system controller and ±15 V power supply. It is recommended that the power supply voltages are verified before connecting the cable to the head to avoid any damage. -
Page 15: Table 2: Pin Assignments
The ground and voltage channels provide power to the scan VOLTAGE head. Table 2: Pin Assignments Interface Pin Connection Usage -SENDCLK CLOCK -SYNC SYNC DATA DATA DATA -STATUS STATUS RESERVED RESERVED VOLTAGE VOLTAGE GROUND VOLTAGE VOLTAGE +SENDCK CLOCK MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... - Page 16 3 Installation 3.3 Installation Instructions Interface Pin Connection Usage +SYNC SYNC DATA DATA DATA +STATUS STATUS RESERVED RESERVED VOLTAGE GROUND GROUND VOLTAGE MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03...
-
Page 17: Electrical - Power Supply Requirements
• Never stare into the laser’s beam, place any parts of your body in the beam path, or expose yourself to reflections of beams. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... - Page 18 Laser Safety Officer (LSO), Radiation Safety Officer (RSO), or safety department of your business or institution. Follow the laser manufacturer’s instructions to perform the rough alignment of the laser to the scan head. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03...
-
Page 19: Install The F-Theta Lens And Required Lens Spacer
• Never stare into the laser’s beam, place any parts of your body in the beam path, or expose yourself to reflections of beams. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... - Page 20 The controller uses information in the correction table to pre-process the command data to remove these distortions. Contact Cambridge Technology for correction tables that provide common scan head and lens configurations and are compatible with many commercial MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03...
-
Page 21: 3.4 Set Up For Initial Use
Table 3: Recommended Delay Settings for Initial Use MOVIA 10mm Scan Head 130 µs Mark Delay 260 µs Jump Delay 65 µs Poly Delay Laser On Laser-dependent Laser Off Laser-dependent MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... -
Page 22: Troubleshooting And Maintenance
• Verify that all cables and spot in the center of is going to the head. wires are connected. the field. • Check continuity and verify pinout of power/data cable. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... - Page 23 Verify transmission of optics with incorrect coating. a laser power meter. IMPORTANT Operating temperature out of specification reduces MOVIA’s optimum performance. • Keep the scan head enclosure at 50 °C or below. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03...
-
Page 24: 4.2 Optic Care
Mirrors or lenses that are damaged while cleaning will not be covered under warranty. It is recommended that you return the unit to Cambridge Technology for cleaning. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... -
Page 25: Warranty Statement
All orders are subject to the Cambridge Technology Terms and Conditions and Limited Warranty. Please visit our website www.novantaphotonics.com for the latest version of these documents and other useful information. MOVIA, 2-Axis Scan Head – User Manual, 1040–0004 Rev. 03... - Page 26 Engineered by Cambridge Technology, Novanta product brand Novanta Head Quarters 125 Middlesex Turnpike Bedford, MA 01730, USA Phone: +1-781-266-5800 Email: photonics@novanta.com Website: www.novantaphotonics.com MOVIA, 2-Axis Scan Head – User Manual 1040–0004 Rev. 03 © 2021, Novanta Corporation. All rights reserved.
