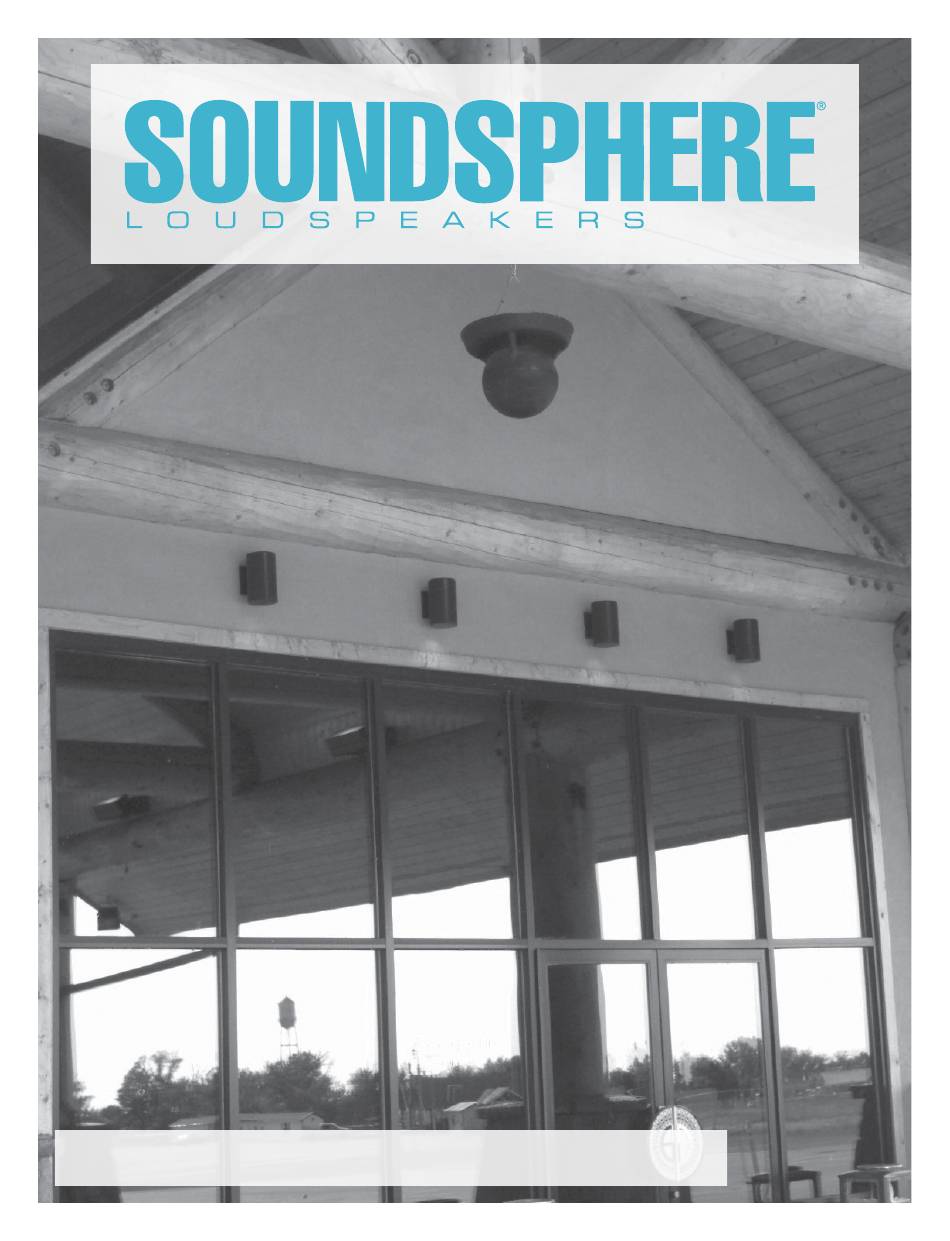

- Page 1 110B, 110 PAGE, Q-6 OWNER’S MANUAL Rev 7.11.2018...
- Page 2 Please read the following instructions carefully before installing your Soundsphere ® speaker. If you have any questions regarding installation that are not answered in the following directions, please contact your local sound contractor or the Soundsphere ® MSE Audio ®...
- Page 3 TX-60 Transformer Installation Instructions The TX-30 is designed for use with the Model 110B or Q-6 loudspeakers. Power taps are provided for 100V, 70V, and 25V The TX-80 is designed for use with the Model 110 Page loudspeaker. Power taps are provided for 70V and 100V systems:...
- Page 4 Wire runs between the amplifier(s) and loudspeaker(s) must be of the appropriate gauge to insure the full audio performance capabilities of the Soundsphere loudspeakers. This applies to all loudspeaker impedances (4 or 8 Ohms) or audio line voltages (50, 70.7 or 100 Volts). For more information, please see the ‘Downloads” section at www.soundsphere.com, or call our Customer Service at 913.663.5600.
