Summary of Contents for Atmos HAZE 700i

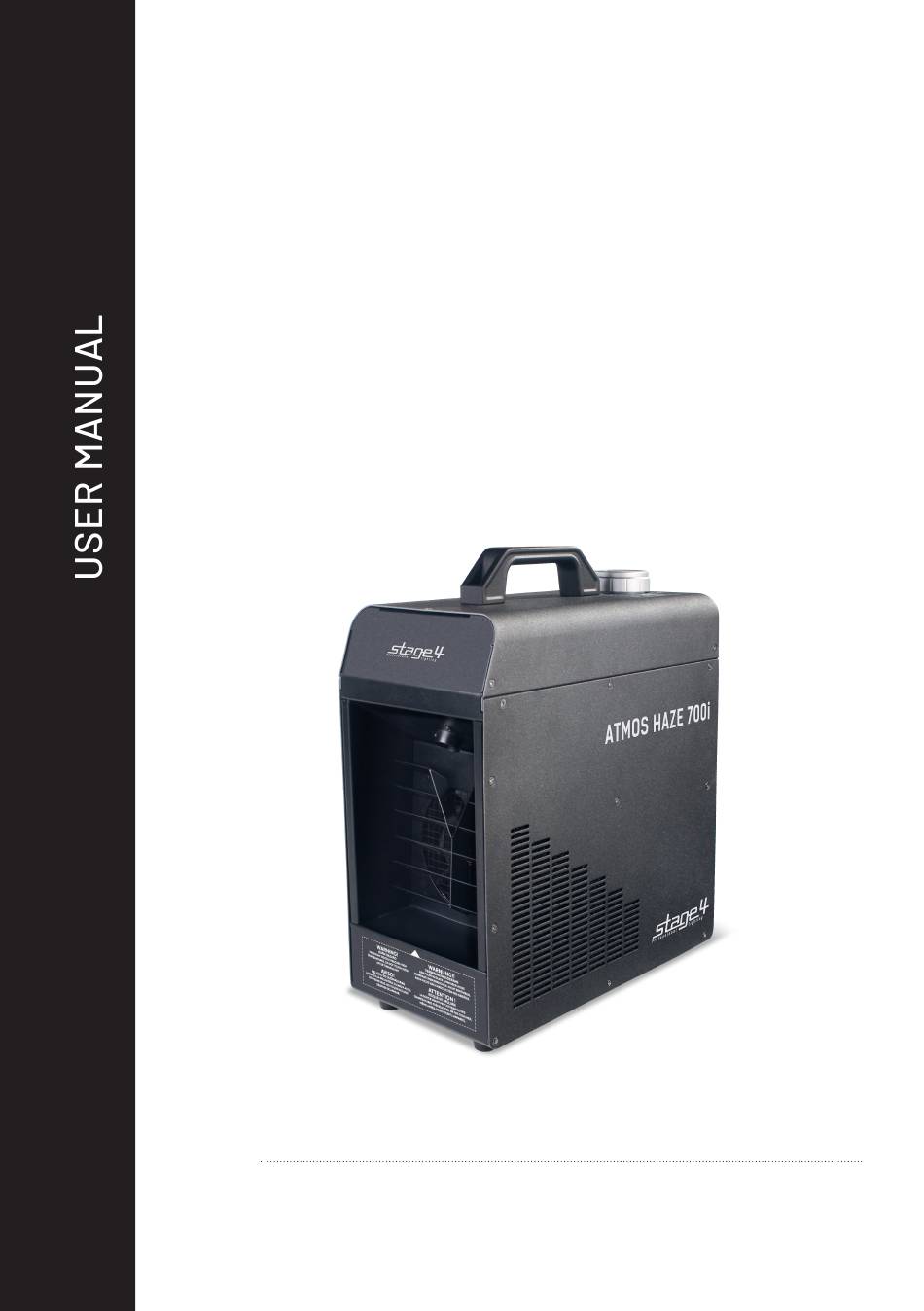

- Page 1 ATMOS HAZE 700i English V 1.1...
-
Page 2: Table Of Contents
Warning Contents Caution Please note: Important Figure1 Functions Description Getting ready Set Up DMX Connector Pin Assignment Intelligent touch display screen Message icon description System Menu Special Operation Operation Figure 2 DMX CHART Remote device management (RDM) Troubleshooting Power Connected but No Smoke is Emitted: Power Connected, Haze Blasts not Smooth: Maintenance Appendix –... -
Page 3: Warning
Thank you for selecting our DMX Faze machine, you already own the high-tech, professional DMX Faze! Better read the manual thoroughly before operation, follow instruction will help you have a smooth handling with DMX Faze machine to achieve the most satisfactory faze effect, it will also assist unit to further prolong lifetime as a whole. - Page 4 • Keep faze machine away from flames and flammable items. Never aim the nozzle at open flames or sparks. Use only high-quality water-based fluid. Never put flammable substances into the tank. • Machine must cool down before cleaning, servicing, or storing. •...
-
Page 5: Caution
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact your local dealer. Particular Warning! Please install the product correctly according to the instruction of the user manual. - Page 6 Figure1 --> Functions A . Handle I . Remote In B . Cap J . DMX 5 pin XLR Input C . Nozzle K . DMX 5 pin XLR Output D . Air Deflector L . Power Input (powerCON True 1) E .
-
Page 7: Description
Description • Drying, stable and smoothly smoke output control from 1-100%. In accordance with different fan speed, the smoke can be adjusted from minimum to 100%. Suitable for operation in any locations. • 20-100% fan speed adjustment. Quiet and smooth fan let the smoke disperse unknowingly. -
Page 8: Getting Ready
If damage has occurred during shipping, or if components are missing, please contact your local dealer immediately. Your package should include: 1. One ATMOS HAZE 700i 2. One powerCON True 1 cable 3. One product user manual Set Up 1. -
Page 9: Dmx Connector Pin Assignment
DMX Connector Pin Assignment The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below indicates pin assignment information. 5 pin XLR 3 pin XLR XLR Male Socket XLR Male Socket 1. Ground 2. Cold 1. Ground 5. -
Page 10: Intelligent Touch Display Screen
Intelligent touch display screen The product includes a system menu and an intelligent touch panel with easy navigation, which allows for all necessary settings and adjustments to be made directly on the panel. When the product is first opened, the main menu screen of the product will be displayed (see the main menu screen below). -
Page 11: Message Icon Description
Message icon description ICON Description After inserting the Wireless DMX module, an icon will be displayed. Please note that this icon will only be displayed when a Wireless DMX signal is received. After inserting the RF module, an icon will be displayed. Please note that this icon will only be displayed when the RF signal is received. -
Page 15: Special Operation
>>>>MESSAGE SMALL ICON INDUCTION>>>> Show icon after inserting From left to right, the signal Wireless DMX module is weak to strong 0-4 Show icon after inserting From left to right, the signal App module is weak to strong 0-4 Show icon after inserting If there is an RF signal, RF module the RF mark is displayed... -
Page 16: Operation
Operation Plug mains power cord from the haze machine into appropriate power supply socket; Display brand logo and main menu screen upon startup. Panel Manual Operation Please lightly click the “Manual” icon on the main menu to manually operate the machine. Press the triangle icon to start or stop. Panel Timing Operation Please lightly click the “TIMER”... - Page 17 Follow the same procedure to link more fog machines, if desired; whole link is daisy chain. 4. Down. Refer to DMX channel chart in Figure 2 make related settings. Now start operating ATMOS HAZE 700i with DMX console. DMX IN DMX OUT...
- Page 18 Figure 2 --> DMX CHART DMX Value Volume 6-255 1%-100% ***** Fan setting on touch screen DMX Value DMX Value Volume DMX Value 6-255 0-255 1%-100% 0-255 20%-100% Volume Duration Interval Value Value Value Value Value 6-255 0-255 1%-100% 0-255 20%-100% 6-255 1S-250S...
-
Page 19: Remote Device Management (Rdm)
Remote device management (RDM) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the fixtures to be modified and monitored remotely. -
Page 20: Troubleshooting
Troubleshooting This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the problem persists, refer servicing to a qualified technician. -
Page 21: Maintenance
Maintenance Before doing maintenance, please make sure that the power is cut, the power cord is unplugged, and the machine itself has cooled down. The maintenance must be done by qualified person. The fluid is not allowed to get dirty. Please clean or replace the filter under the tank regularly, and tight the cap of the faze machine tank immediately after filling. - Page 22 2. Prolonged use, please clean the air inlet regularly. Clean the filter screens of air inlets on both sides. Step 1: Remove the side panel. Step 2: Loosen the screws on both sides. Step 1 Step 2 Filter 3. Clean the metal cover with dry cloth. P [20]...
-
Page 23: Product Specifications
Product Specifications Name ATMO HAZE 700i Heater Power 700W Consumption 720W DMX512 CH. 1CH, 3CH, or 5CH • Timing Fogging • Manual continuous Fogging Built-in Function Fuse (120V) NFB9A Fuse (230V,240V) NFB5A Display LCD Touch Screen Tank (liters) 1.3L Fog Output (cu.ft/min) - Page 24 Accessory Installation Instructions OPTIONAL WIRELESS DMX CARD AND RF WIRESS CARD This device features 2 Function card slots for optional Wireless DMX receiver cards and RF wireless card. These card slots are located behind the device. 1. Locate the card input slots on the device. Use a screwdriver to remove the slot cover for one of the input slots;...
-
Page 25: Appendix - A Wired Controller
Appendix – A Wired Controller Please use a wired Remote controller in conjunction to achieve the best haze effect. 1. Firmly plug the controller connector into the controller connector of the machine (Figure 1-I); 2. After connecting the wired controller to the machine, the red LED above the button lights up when powered on, and goes off when powered off;... -
Page 26: Appendix - B Wireless Rf Contoller
Appendix – B Wireless RF contoller 1. Insert the receiver into any functional module slot on the machine (Figure 1-F or G) ; 2. At this point, the RF icon will appear above the intelligent touch screen of the machine; 3. - Page 27 ATMOS HAZE 700i Save this instruction properly All the information is subject to change without prior notice...
