Atmos HAZE 1400 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ENGLISH
ATMOS HAZE 1400
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAZE 1400 and is the answer not in the manual?

Questions and answers

Related Manuals for Atmos HAZE 1400

Summary of Contents for Atmos HAZE 1400

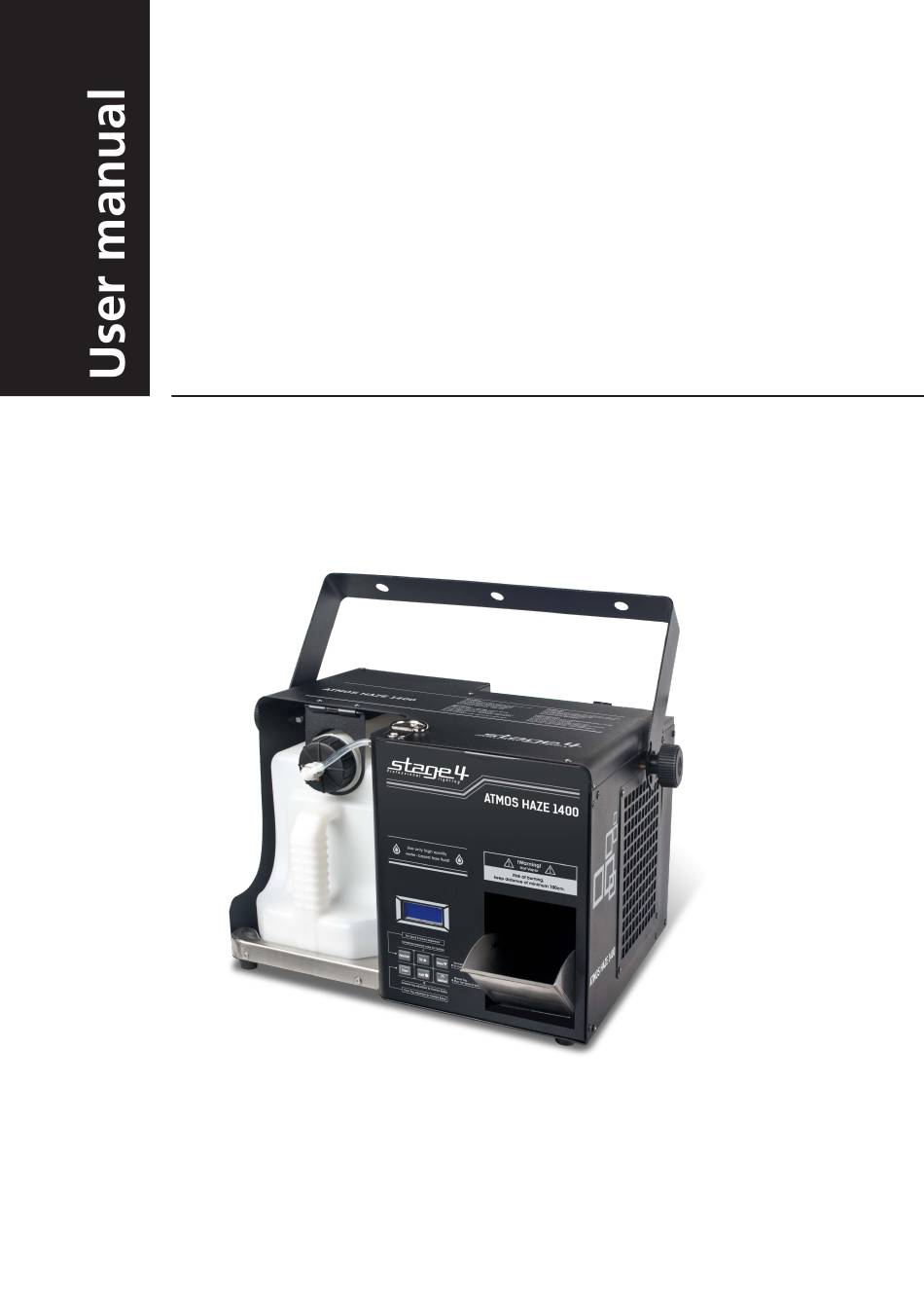

  • Page 1 ENGLISH ATMOS HAZE 1400 Version 1.0...
  • Page 2 Warning CONTENTS Important safeguards Caution Particular waring Important Please note: ATMOS HAZE 1400 Functions Description Getting ready Set Up DMX Connector Pin Assignment Functions of the buttons Operation DMX Chart Troubleshooting Power Connected but No Smoke is Emitted Power Connected, Fog Blasts not Smooth...
  • Page 3 Thank you for selecting our Atmos serials DMX Haze machine, you already own the high-tech, professional DMX Haze!Better read the manual thoroughly before operation, follow instruction will help you have a smooth handling with Atmos serials DMX Haze machine to achieve the most satisfactory Haze effect, it will also assist unit to further prolong life time as a whole.
  • Page 4 • Without user-serviceable parts in the package, please contact your local agent or qualified technician for servicing. • Without changeable structure by non- qualified user, please do not open the up cover or have any change at will, otherwise, it may cause accident! • Haze machine is for adult use. Keep out of reach of children. Never leave the unit running unattended.

  • Page 5: Important Safeguards

    • Keep sufficient fluid in tank. Operating the unit without sufficient fluid, the pump will slowdown the power. • If any abnormal running occurs, stop it immediately, empty the fluid, and bring the done up unit (recommend original box) to your agent or dealer for servicing. Make sure all fluid is empty from the tank before moving or shipping.
  • Page 6 Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact your local dealer. Particular Warning : Please install the product correctly according to the instruction of the user manual.
  • Page 7 Figure1 ATMOS HAZE 1400 Functions A. Hanging Bracket B. Unique Anti-Spill Tank C. Quick Connector D. Blue LCD screen E. 6 Buttons F. DMX 5 pin XLR Output G. DMX 5 pin XLR Input H. DMX 3 pin XLR Output DMX 3 pin XLR Input J.
  • Page 8 Description • Smooth and stable smoke output control from 5-100%. In accordance with different wind power, the smoke can be adjusted from minimum to 100%. Suitable for operation in any locations. • 5-100% fan speed adjustment. Quiet and smooth fan let the smoke disperse unknowingly. 100% high fan speed let the smoke be thin and even, and expand more quickly throughout the location. • Primary heating up takes very short time, only about 60 seconds, shorter than general Haze machines. • The machine can be installed for up spray or forward spray. • Unique design of 5.6 liter liquid tank let have no worry of oil leaking when being operated up spray or side spray. Quick connector makes replacement direct and easier when performance is ongoing.

  • Page 9: Getting Ready

    All products are thoroughly tested at the factory and shipped in perfect condition. If damage has occurred during shipping, or if components are missing, please contact your local dealer immediately. Your package should include: 1.One Atmos 1400 DMX Haze 2.One Power Cord 3.One product user manual Set Up 1.

  • Page 10: Dmx Connector Pin Assignment

    DMX Connector Pin Assignment The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below indicates pin assignment information. 5 pin XLR 3 pin XLR 1. Ground 2. Cold 1. Ground 5. N/A 2. Cold 4. N/A 3. Hot 3. Hot 2. Cold 1. Ground 5. N/A 1.

  • Page 11: Functions Of The Buttons

    Functions of the buttons Fan Speed & Volume Adjustment Increasing numerical value for Function Decreasing numerical value for Function Manual Fog, Max. Fan Speed & Volume Constant Fog, adjustable by Function Button Timer Fog, adjustable by Function Button FUNCTION:Function switching button; then have the numerical value changed by using UP and DOWN buttons. DMX Mode: DMX mode selection.
  • Page 12 UP: Button for increasing numerical value DOWN: Button for decreasing numerical value TIMER: Starting button of timing fogging. HOLD: Starting button of continuous fogging. MANUAL: Starting button of manual fogging. Press “Manual” (without releasing), maximum output and maximum fan speed fogging. Release “Manual” to recover previous status. This function can be started forcedly under any status.

  • Page 13: Operation

    Operation 1. Plug mains power cord from the Haze machine into appropriate power supply socket; Version: Primary power on; Warming 2 seconds after, switches to working status: heating up; Up…… 4. Wait about 60 seconds for heating element to heat up; After heating up, displays the previous functions DMX set list before the last power off; The picture shows Addr- xxx the new machine default state; 6. After the heating up is complete, Please do follow the required operating modes;...
  • Page 14 Timing Fogging Operation .............. DUR. xxx Press “ Timer” to enter timing fogging status; INT. xxx 2. Under this status, press “ Function” to get into timing setting menu, please note timing fogging stops at the same moment; --> Dura xxx Press “Up” or “Down” to adjust the value of continuous time (3s – 250s); Intv xxx 4. Press again “Function” to switch to adjust the value of Interval, please note timing fogging still stops at the same moment;...
  • Page 15 Continuous Fogging Operation ............Press “Hold” to enter continuous fogging --> Vol xxx status, please note continuous fogging starts at Fan xxx the same moment; --> Vol xxx Press “Up” or “Down” to adjust smoke volume value(5 – 100%); Fan xxx 3. Press “Function” to switch to adjust the speed of fan, please note continuous fogging still works at the same moment;...
  • Page 16 Manual Fogging Operation ............. As long as heating is completed, under any Manual status, press “ Manual” (without releasing), the V100 F100 machine with maximum output and maximum fan speed fogging; 2. Release “Manual” to recover previous status. Other Operation Tips ............... In previous status, it is allowed to press DMX set •...
  • Page 17 9. Please switch the DMX mode 1ch, 2ch or 4ch by Function. If desired, connect another Haze machine: Plug one end of another signal cable in to the output socket (F or H of figure 1) on the back of the first ATMOS; plug the other end of the signal cable to the input socket (G or I of figure 1) on the back of the second ATMOS. Follow the same procedure to link more fog machine, if desired;...
  • Page 18 Figure 2 DMX Chart 1 CH 5-255 Volume 5%-100% Fan 100% 0-4 Volume 0% Fan 5% 2 CH Volume 5-255 5%-100% 16-255 6%-100% 0-4 Off 0-15 5% 4 CH Volume Duration Interval 5-255 5%-100% 16-255 6%-100% 8-255 3-250(s) 10-255 5-250(s) 0-4 Off 0-15 5% 0-7 3(s) 0-9 0(s) **Interval =0 means constant fog.

  • Page 19: Troubleshooting

    Troubleshooting This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the problem persists, refer servicing to a qualified technician.

  • Page 20: Maintenance

    Other Abnormal Situations: Heater Flashing and showing this status, means heater is too hot or thermos sensor is cut; Overheat Flashing and showing this status, means unable heating; Heating Flashing and showing this status, means fluid runs out or pumping no fluid; at this moment, speed Fluid of the fan will reduce to minimum, and pump will stop working.
  • Page 21 3. Prolonged use, flight case side air filter can accumulate dust, periodically remove the flight case side cover and remove the air filter to do the cleaning, after cleaning, be sure to dry the air filter after replacing the flight case again. Be sure to dry the air filter after replacing the flight case again! 4.
  • Page 22 5. Periodically check the connections among the oil tube, the pump and the heater to see if there’s oil leaking. If positive, lock tight the connections carefully with proper tool. 6. PC board should be kept from being dirtied with oil. In case this happened, dismantle carefully the PCB, and have it brushed clean both sides with dilute alcohol. Leave it dry itself, then install it back. Make sure all wires are well connected. 7. Clean the metal cover with dry cloth.

  • Page 23: Product Specifications

    Product Specifications Atmos DMX Haze machine Name ATMOS HAZE1400 Item No. Housing configuration No flight case, black iron casing Heater Power 1400W Consumption 1500W DMX512 CH. 1CH, 2CH, or 4CH • Timing Fogging Built-in Function • Continuous Fogging • Manual Fogging Fuse (120V) NFB 16A Fuse (230V,240V)
  • Page 24 Save this instruction properly All the information is subject to change without prior notice...
