RAK7391 Quick Start Guide
Powering on the Device
The
RAK7391
can be powered via 10-28 V
user has two options. Make sure you power either using one or the other not both at the same time.
The device also supports IEEE 802.3 at/bt active PoE in combination with a specialized PoE HAT module. Mount
the PoE Hat module then you can power the board through the 1 GB Ethernet port.
NOTE
The PoE board is specialized. A general Raspberry Pi 40-pin PoE HAT cannot be used.
. There is one Barrel Jack and one Phoenix Connector, so the
DC

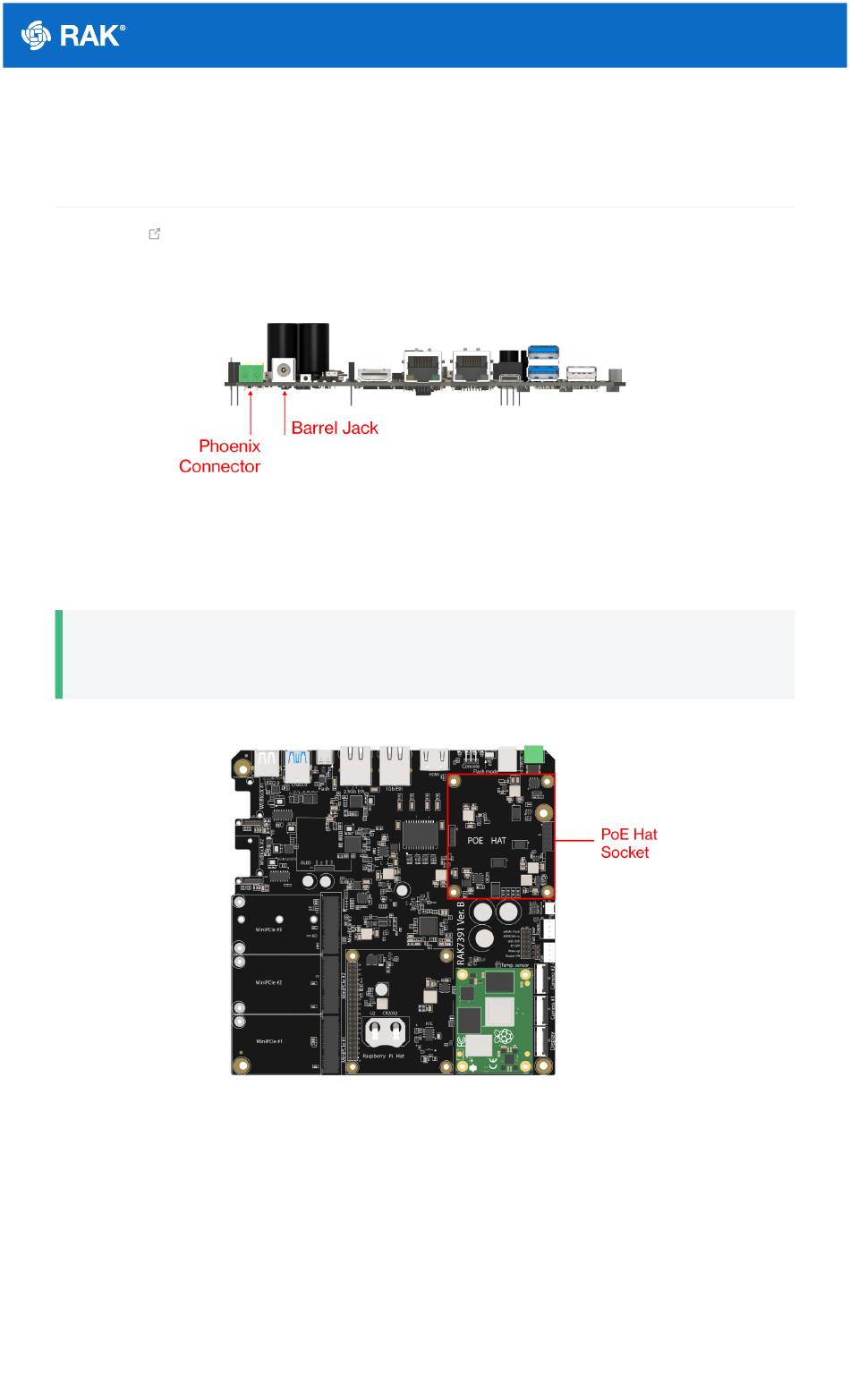

Figure 1: DC power connectors
Figure 2: PoE HAT socket
