Connection to CAN Bus using TX-TO-CAN

P N
LEASE OTE
first
Always turn off the ignition before changes are made to the CAN Bus connection.
Squarell SOLID
In case no FMS interface is installed on the vehicle, the TX-TO-CAN modules can be used to
DIRECTLY connect to the vehicle CAN Bus.
Connection to On-Board Computer

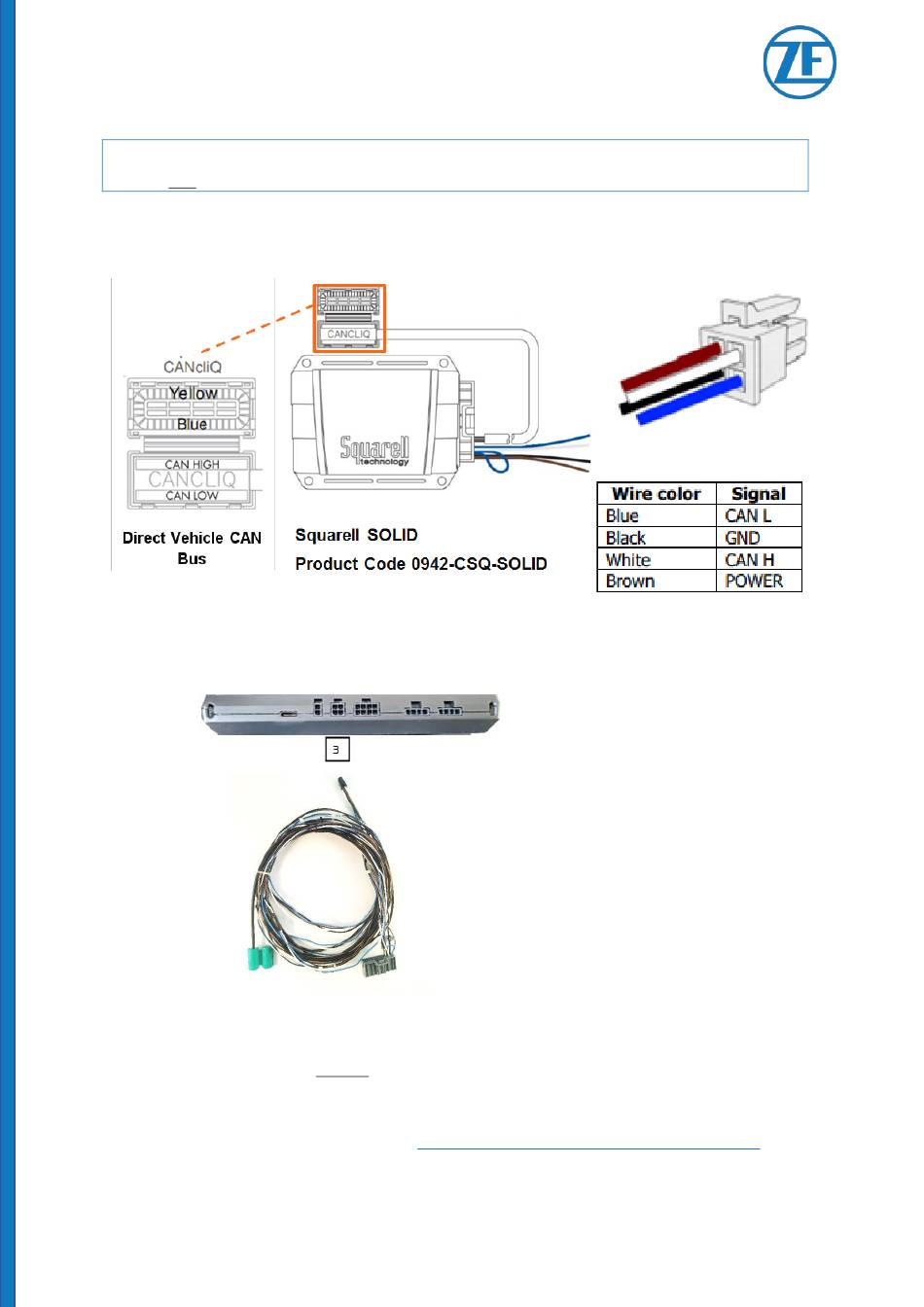

Use the Squarell Solid CANcliQ cable (551 081 011 0) to connect the Squarell unit to the CAN port (3)
on the side of the main unit.
Squarell Solid CANcliQ cable (551 081 011 0)
Connection to CAN Bus
Connect the CAN wires to the correct location in the truck using the CANcliQ. The CAN Bus wire
colors depend on the vehicle type. As a result, we refer to the vehicle passports (provided by your ZF
Project Engineer) to find the location of the CAN Bus wires in the truck.
For more vehicle-specific information, go to
consult these instructions:
Squarell installation instructions - heavy commercial vehicles part 1 (a-l)
Squarell installation instructions - heavy commercial vehicles part 2 (m-z)
SCALAR EVO Flow Installation Guide
https://www.mytransics.com/mydocsandtools
