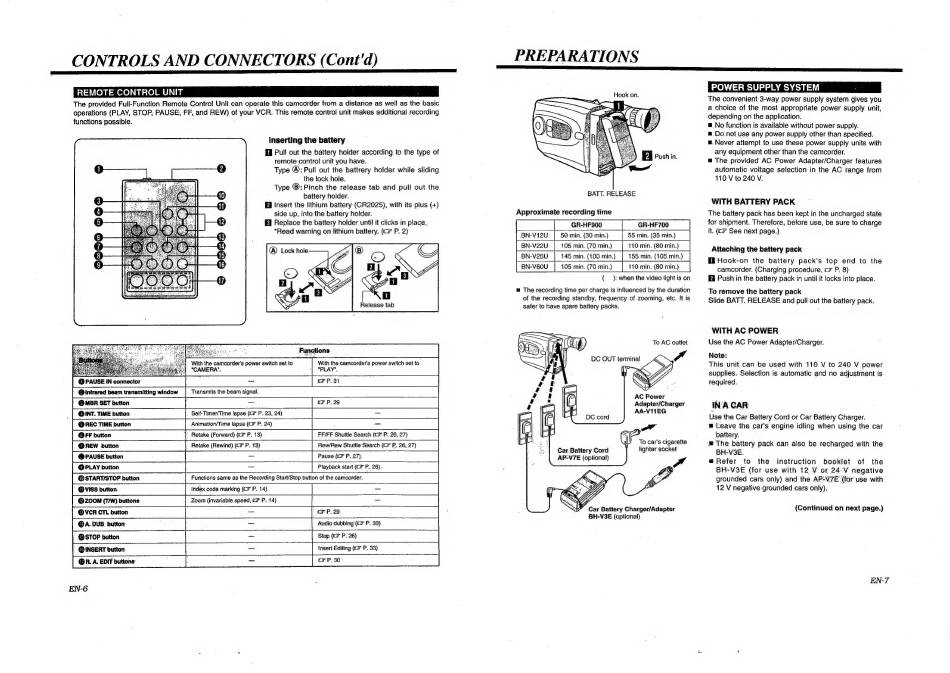

CONTROLS AND CONNECTORS (Cont'd)
a an
REMOTE CONTROL UNIT
The provided Full-Function Remote Contro! Unit can operate this camcorder from a distance as well as the basic
operations (PLAY, STOP, PAUSE, FF, and REW) of your VCR. This remote contro! unit makes additional recording
functions possible. .
inserting the battery
HI Pull out the battery holder according to the type of
remote control unit you-have.
Type ®: Pull out the 'battrery holder while sliding
the lock hole.
Type ®:Pinch the release tab and pull out the
battery holder.
Insert the lithium battery (CR2025), with its plus (+)
side up, into:the battery holder.
Replace the battery holder until it clicks in place..
*Read warning on lithium battery. («<> P. 2)
Release tab
Afr "CAMERA'. ' | "PLAY".
a
With the camcorder's power switch set to With the camcorder's power switch set to.
ee
is
@PAUSE IN connector f _ FP. 31
@ infrared beam transmitting window
@MBR SET button <p - FP. 29
ONT. TIME button Self-Timer/Time lapse (c# P. 23, 24) _
@REC TIME button Animation/Time lapse (7 P. 24) _
OFF button }) Retake (Forward) (7 P. 13) FF/FF Shuttle Search (cP: 26, 27)
@new button | , Retake (Rewind) (cP, 13) Rew/Rew Shuttle'Search (G7 P. 26,27)
@ PAUSE button : — Pause (> P. 27)
© PLAY button - Playback start (CP. 26)
@STARTISTOP button
@ViISS button.
(ZOOM (TW) buttons
@VCR CTL button = FP. 29
@A. DUB. button =
{®BSTOP button
Q@INSERT button
@R. A EDIT buttons: oT , EF P, 30
Transmits the beam signal.
Functions same as the Recording Start/Stop button of the camcorder.
lndex code marking (> P. 14)
Zoom {invariable speed, CF P; 14)
Audio dubbing'(cz" P. 33)
Stop (ic P. 26)
Insert Editing (CF P. 33)
EN-6
PREPARATIONS
Hook on.
BATT. RELEASE
Approximate recording time
| GR-HF900 GR-HF700
| BN-V12U 50 min. (30 min.) 55 min, (35 min.)
BN-V22U 105 min. (70 min.) 110 min. (80 min.} |
BN-V25U 145 min. (100 min.) 155 min. (105 min.) |
BN-V60U 105 min. (70 min.) 110 min. (80 min.) |
{__ ): when the video light is on
™ The recording time per charge is influenced by the duration
of the recording standby, frequency of zooming, etc. It is
safer to have spare battery packs.
Car:Battery Cord
AP-V7E (optional)
To AC outlet
Adapter/Charger
AA-VITEG
To car's cigarette
lighter socket
Y Car Battery Charger/Adapter
BH-V3E (optional)
POWER SUPPLY SYSTEM =
The convenient 3-way power. supply system gives you
a choice of the most appropriate power supply unit,
depending on the application.
® No function is available without power supply.
ws Do.not use any power supply other than specified.
=. Never attempt to use these power supply units with
any equipment other than the camcorder.
™ The provided AC Power Adapter/Charger features
automatic voltage selection in the AC range from
110-V to 240 V.
WITH BATTERY PACK
The battery pack has been kept in the uncharged state
for shipment. Therefore, before use, be sure to charge
it. (C7 See next page.)
Attaching the battery pack
HB Hook-on the battery pack's top end to the
camcorder. (Charging procedure, rc P. 8)
Bi Push in the battery pack in until it locks into place.
To remove the battery pack
Slide BATT. RELEASE and pull out the battery pack.
WITH AC POWER
Use the AC Power Adapter/Charger.
Note:
This unit can be used with 110 V to 240. V power
supplies. Selection is automatic and no adjustment is
required.
INA CAR
Use the Car Battery Cord or Car Battery Charger.
™ Leave the car's engine idling when using the car
battery.
= The battery pack can also be recharged with the
BH-V3E.
= Refer to the instruction booklet of the
BH-V3E (for use with 12. V or 24 V negative
grounded cars only) and the AP-V7E '(for-use with
12 V negative-grounded cars only).
(Continued on next page.)
