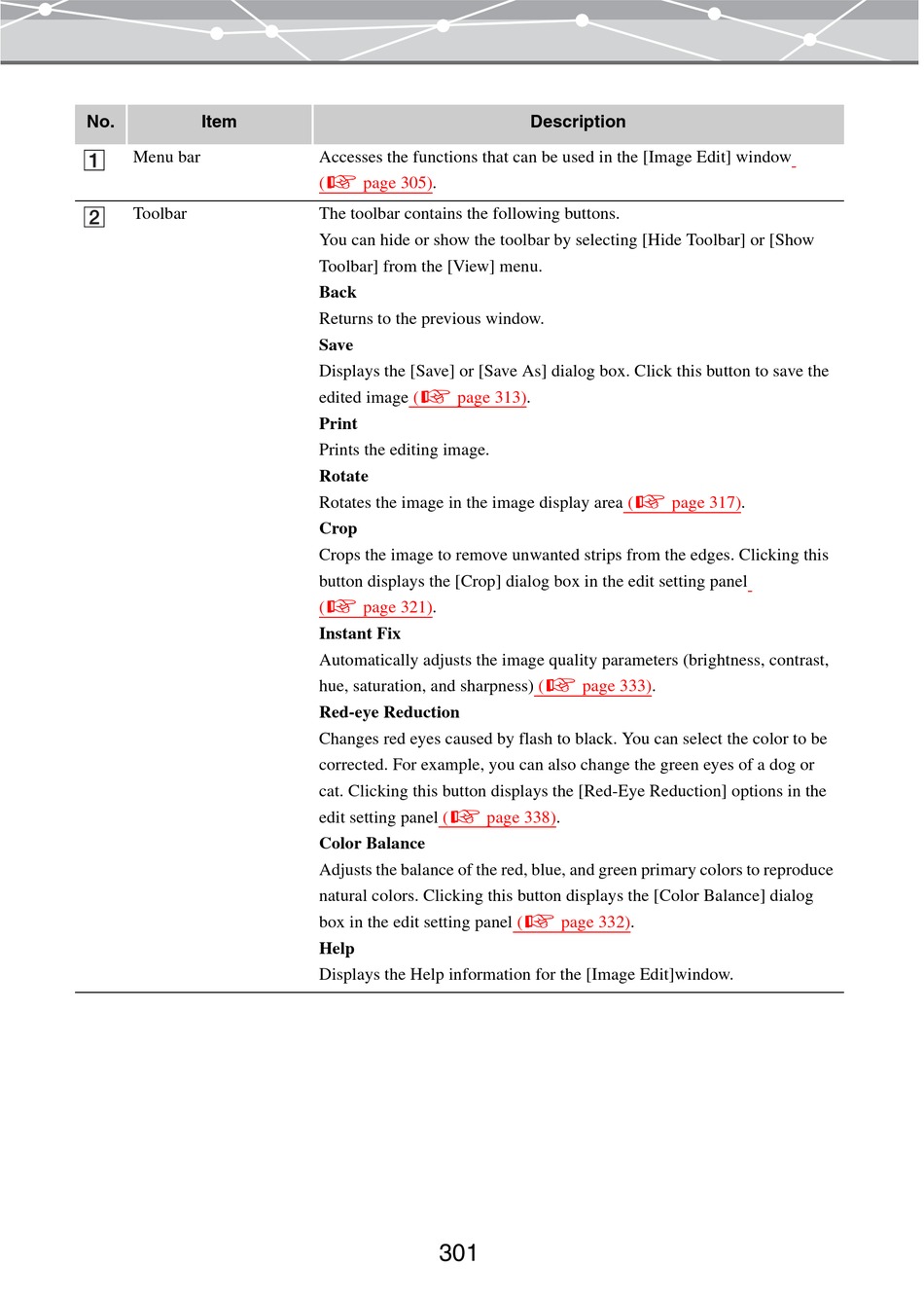

No.
Item
Menu bar
Toolbar
Accesses the functions that can be used in the [Image Edit] window
(g page
305).
The toolbar contains the following buttons.
You can hide or show the toolbar by selecting [Hide Toolbar] or [Show
Toolbar] from the [View] menu.
Back
Returns to the previous window.
Save
Displays the [Save] or [Save As] dialog box. Click this button to save the
edited image
(g page
Print
Prints the editing image.
Rotate
Rotates the image in the image display area
Crop
Crops the image to remove unwanted strips from the edges. Clicking this
button displays the [Crop] dialog box in the edit setting panel
(g page
321).
Instant Fix
Automatically adjusts the image quality parameters (brightness, contrast,
hue, saturation, and sharpness)
Red-eye Reduction
Changes red eyes caused by flash to black. You can select the color to be
corrected. For example, you can also change the green eyes of a dog or
cat. Clicking this button displays the [Red-Eye Reduction] options in the
edit setting panel
(g page
Color Balance
Adjusts the balance of the red, blue, and green primary colors to reproduce
natural colors. Clicking this button displays the [Color Balance] dialog
box in the edit setting panel
Help
Displays the Help information for the [Image Edit]window.
301
Description
313).
(g page
(g page
333).
338).
(g page
332).
317).
