Marconi Instruments TF 2702 Instruction Manual

EB 2702
el - 7/ 67

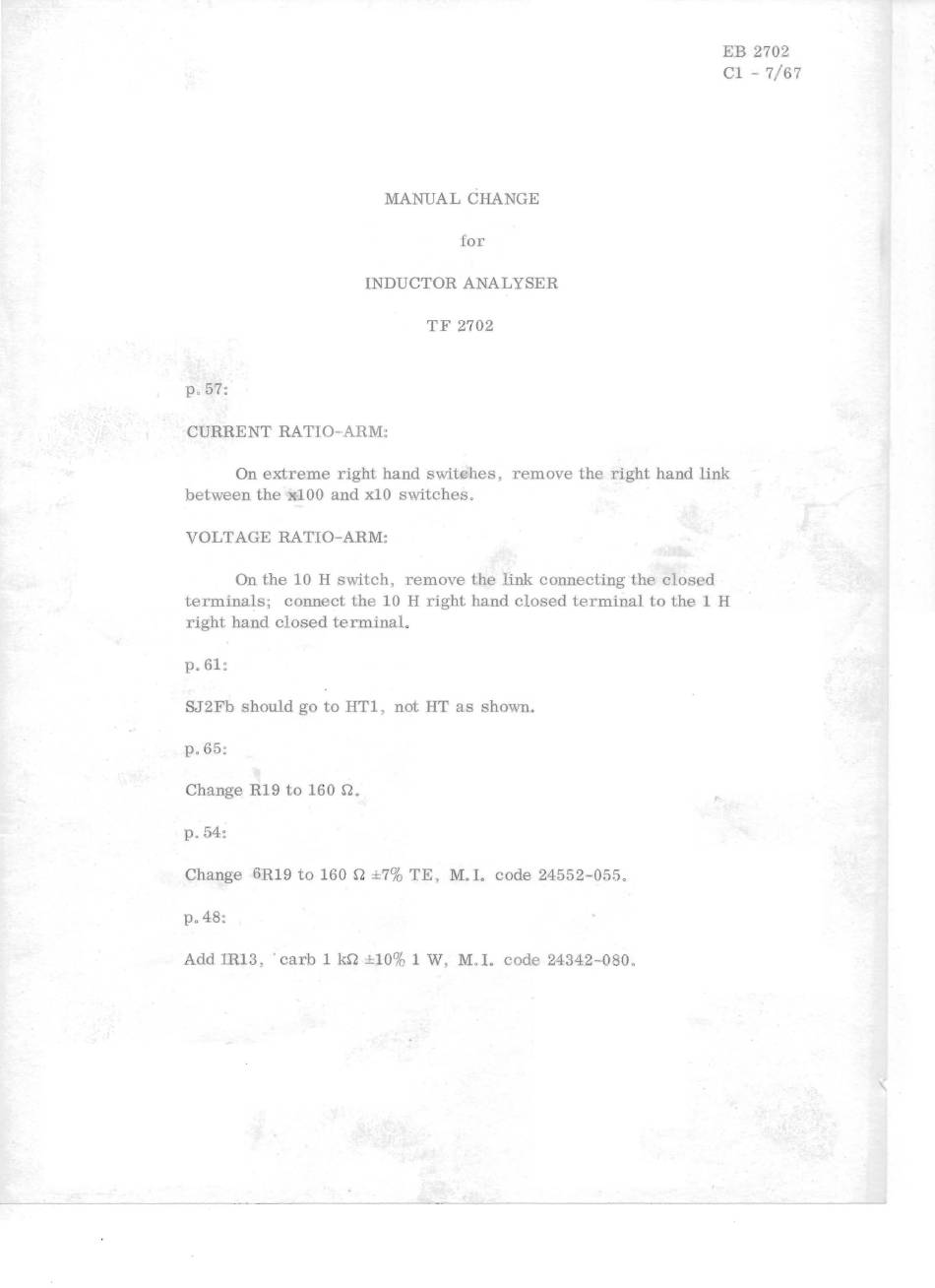

MANUAL CRANGE
for
INDUCTOR ANALYSER
TF 2702
p . 57 :
CURRENT
RATJ O-ARM~
On extreme right hand s\'vi.tches , TemOVe the Tight hand link
between the xl00 and xlO switches.
VOLTAGE RATIO- ARM:
On the 10 H switch, Temove the hnk connecUng the cloRed
terminals ; connect the 10 H right hand closed terminal to the l H
right hand cl osed terminal.
p.61 :
SJ2Fb should go to HT1 , not HT as shov.lJl.
p.65:
Change
R19
to
160
Q.
p . 54:
Change
6R19
to
160
Q
±7% TE , M. L code
24552 - 055.
p.48:
Add lR13
,
carb 1 kQ ;!:10S0 l
W, M.
l. c ode
24342 - 080.
