JVC KD-V100 Service Manual

JVC

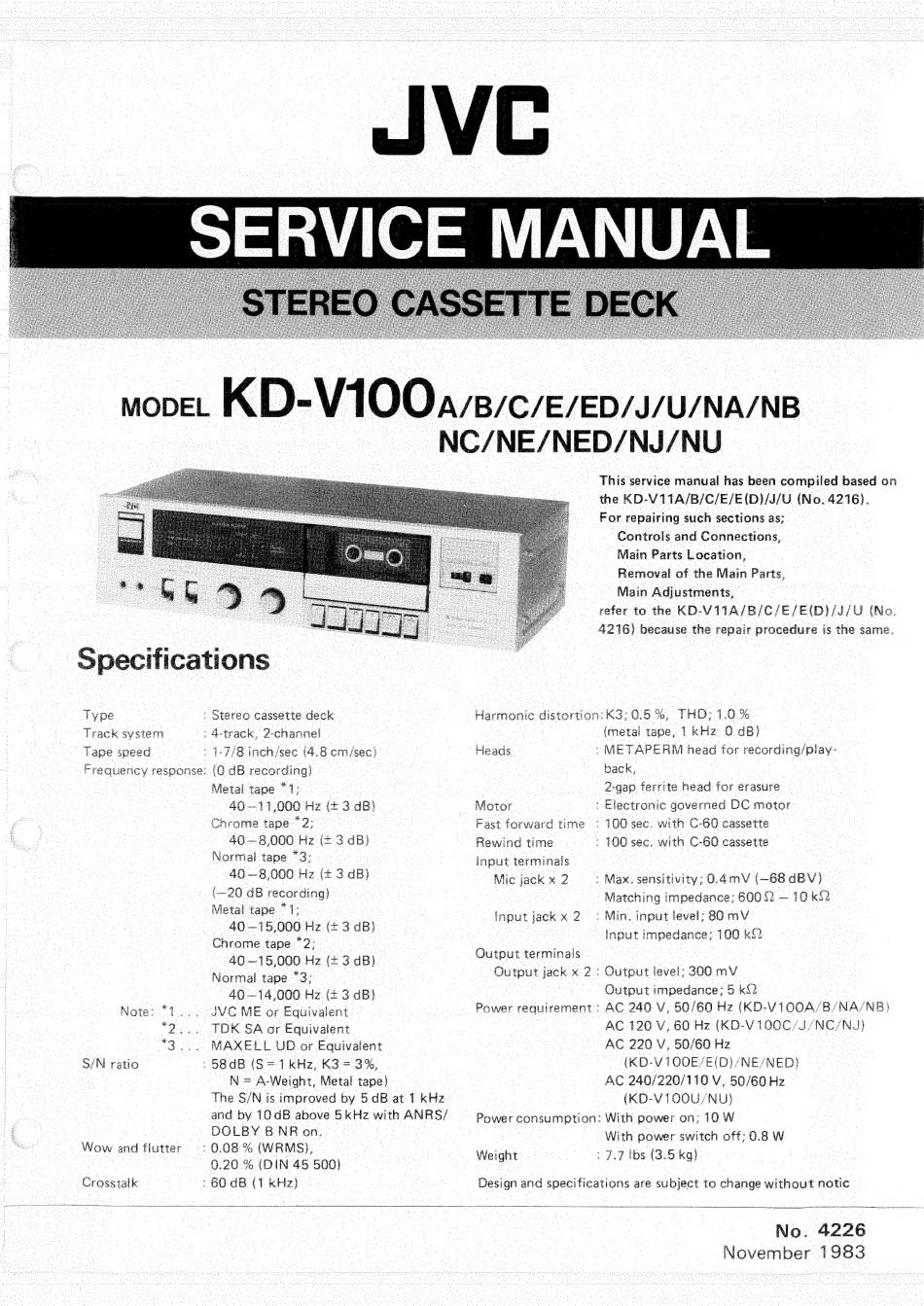

SERVICE MANUAL
move. AD-V10Q0.«/8/c/E/ED/J/U/NA/NB
NC/NE/NED/NJ/NU
This service manual has been compiled based on
the KD-V11A/B/C/E/E(D)/J/U (No. 4216).
For repairing such sections as;
Controls and Connections,
Main Parts Location,
Removal of the Main Parts,
Main Adjustments,
refer to the KD-V11A/B/C/E/E(D)/3/U (No.
4216) because the repair procedure is the same.
Specifications
Type » Stereo. cassette deck Harmonic distortion: K3:.0.5.%,. THD; 1.0 %
Track system :-4-track, 2-channe! (metal tape, 1 kHz. 0-dB)
Tape speed : 1-7/8 inch/sec (4.8 cm/sec} Heads » METAPERM head for recording/piay-
Frequency response: {0 dB recording) back,
Metal tape." 1; 2-gap ferrite head. for erasure
40--11,000 Hz (+ 3 dB) Motor. : Electronic governed DC motor
Chrome tape" 2:
40—8,000 Hz (=
Normal tape "3;
40—8,000 Hz (+ 3 dB}
(~20 dB recording}
Metal.tape. "1:
40 —15,000 Hz (+3 dB}
Chrome tape *2; —
40—15,000 Hz {£3-dB)
Normal tape "3;
40~—714,000 Hz (+3 dB}
3 dB).
rast forward time
Rewind time
input terminals
Mic jack x 2
input jack x 2
Output terminals
Output jack x 2::
> 100 sec. with C-60 cassette
: 100 sec. with C-60 cassette
: Max. sensitivity; O.4mV (-68 dBV)
Matching impedance; 6002 — 10. k&2
: Min. input ievel: 80 mV
Input impedance; 100 kQ
Output level; 300 mV
Output impedance; 5 kQ
AC 240 V, 50/60 Hz (KD-V100A/B/NA/NB}
Note: *1.....JVC-ME or Equivalent Power requirement :
"2...
TDK SA or Equivalent
AC 120 V, 60 Hz (KD-V100C/J/NC/NJ}
"3... MAXELL.UD or Equivalent AC 220 V, 50/60 Hz
S/N ratio : §8dB (S =1 KHz, K3 = 3%, {KD-V100E/E(D)/NE/NED)
Wow and flutter
Crosstalk
N = A-Weight, Metal tape)
The S/N is improved by 5 dB at 1 kHz
and by 10dB above 5kHz with ANRS/
DOLBY B NR on.
: 0.08% (WRMS),
6.20.% (DIN 45 500)
: 60: dB (1 kHz)
Power consumption:
Weight
AC 240/220/110 V, 50/60 Hz
(KD-V100U/NU)
With power on; 10 W
With power switch off; 0.8 W
: 7.7 Ibs (3.5 kg)
Design and specifications are subject to change without notic
No. 4226
November 1983
