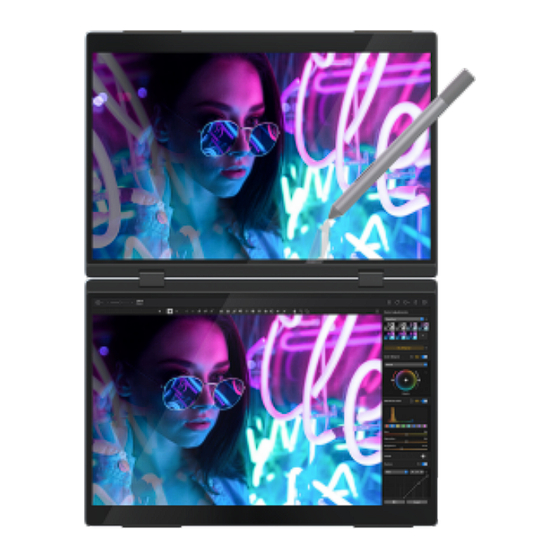

- Page 1 16 Inch Dual Monitor User Manual Email:help@uperfectmonitor.com In order to ensure your safe use of this product, please read this manual carefully before using this product and keep it properly. Email: help@uperfectmonitor.com...
-
Page 2: Table Of Contents
Chapter 01 Table of contents Preparations Chapter 01 Preparations Chapter 05 Screen Adjustment Checking the Package Contents Welcome! On-Screen Display Menu Introduction Checking the package contents OSD SETTING Monitor introduction Save settings 18.5" Dual Monitors Product Appearance & Interface Function Introduction The functions of the bracket &... -
Page 3: Monitor Introduction
Monitor Introduction Product Appearance & Interface Function Introduction A: Mini HDMI Port 2 Upper screen signal transmission. B: Type-C 2 Upper screen signal transmission. C: Mini HDMI Port 1 Two screen signal transmission, only one HDMI cable can connect two screens. D: Type-C 1 Two screen signal transmission, only one Type-C cable can connect two screens. -
Page 4: Chapter 02 Specifications
Chapter 02 1.The Stand supports 135°opening up Specifications Model M160T11 Screen Size 16 inches 2560*1600 Resolution 65° Aspect Ratio 16:10 Panel Type Color Gamut 100% sRGB 2.Dual screen supports 360° folding Color Depth 16.7M(8bit) Mini HDMI Port *2 Interfaces USB Type-C Port * 3 Built-in Speakers 8Ω... -
Page 5: Chapter 03 Connecting
Chapter 03 HDMI Connection Connecting 1.Please use the HDMI 1 port to achieve upper and lower screen display. TYPE-C Connection 2.If you are using the HDMI 2 port, only the upper screen can be displayed. 1.Please use the Type-C C1 port, which only requires one cable to achieve Note: Except for the HDMI cable, you also need connect a type-c cable for upper and lower screen display. -
Page 6: Two Different Devices Connection
Chapter 04 Setting Up(Windows10) Two Different Devices Connection Clone Mode / DPMST Mode / Link Mode / Stand Along Mode Device 1 is connected via Type-C C1 or HDMI 1. Device 2 is connected via You can use dual-screen monitors to connect different devices and achieve the desired Type-C C2 or HDMI 2 display effect through the monitor adjustment mode settings or computer display settings mode. -
Page 7: Mode Setting Display
Mode Setting Display MacOS (Thunderbolt 3 or later) Samsung (Support Dex Mode) Dex Mode Off Dex Mode On Mirror Mode Mirror Displays Extend Mode No Mirror Displays Link Mode No Mirror Displays Mirror Mode Mirror Mode MacOS (HDMI) iPhone 15 Series (Type-C) HDMI to Lightning Cable Gaming Console Mirror Mode Mirror Displays... -
Page 8: Chapter 05 Screen Adjustment
Chapter 05 Screen Adjustment On-Screen Display Menu Introduction Rotate the Screen 1: Verify that your cables are connected properly to the new monitors. 2: Right-click anywhere on your desktop and select Display settings to open the Display PICTURE COLOR EFFECT page. -
Page 9: Osd Setting
Chapter 06 OPTION Q&A Option Standard Source Auto Important Tips: Language English If you find any issues with your monitor, please contact us at support@newsoul.store Wide AspectRatio before returning it. We will help you solve your problems and try our best to make Volume you satisfied. -
Page 10: Chapter 07 Service Support
Chapter 07 please add a Mini HDMI to HDMI cable for signal transmission. 2. Please make sure to use the original cables. Service Support 3. Please try another device. If it still fails, please tell us for a replacement. Q: Touch operation on the monitor, but applied to the computer. Q: Why does my monitor turn off when I turn up the brightness? Dear Customer, This is caused by insufficient power supply.
