Summary of Contents for UPERFECT UXbox X2

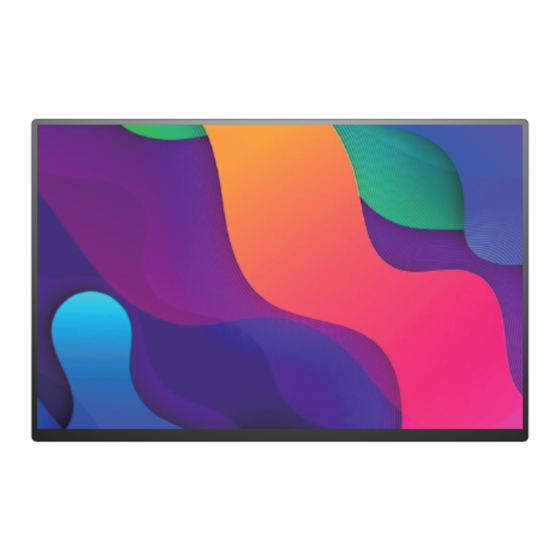

- Page 1 16 Inch 2K 144HZ Portable Monitor User Manual Email: help@uperfectmonitor.com In order to ensure your safe use of this product, please read this manual carefully before using this product and keep it properly. help@uperfectmonitor.com PDS-1190-M160E02-NE...
-
Page 2: Table Of Contents
Chapter 01 Table of contents Preparations Chapter 01 Preparations Chapter 05 Screen Adjustment Checking the Package Contents Welcome! BRIGHTNESS Checking the package contents IMAGE Monitor introduction COLOR TEMP. Product Appearance & Interface Function Introduction OSD SETTING RESET Chapter 02 Speci cations MISC. -
Page 3: Monitor Introduction
Monitor Introduction Product Appearance & Interface Function Introduction A & B: Full Featured Type-C Ports For power & signal transmission C: Mini HDMI Port For signal transmission D: 3.5mm Audio Jack For earphones E: Pulley Button Scroll the Pulley button up on the main interface to open the volume menu, then scroll up and down to adjust the volume. -
Page 4: Chapter 02 Speci Cations
Installing the stand case Chapter 02 Speci cations Step1: Place the holster as shown above,part “1” is magnetic. Color Black Model M160E02 Resolution 2560*1600 Color Gamut 100%sRGB 500 cd/m² Brightness Step2: Place the monitor as shown above,part “1” can be sticky. 1200：1 Contrast Ratio... -
Page 5: Chapter 03 Connecting
Chapter 03 Supported Devices & Models（Type-C ） Connecting Laptop Model Brand Model TYPE-C signal transfer Macbook 12"、Macbook 13" 2017、MacbookPro 2016/2017/2018、New Apple Macbook Air 2018、iPad Pro 2018 Google ChromeBook Pixels、PielBook Pen、MagicBook For a more stable power supply, it is recommended to use our Note: YogaC930、Yoga 5 Pro、Yoga 6 Pro、ThinkPad XI Carbon2017、Miix 720、... -
Page 6: Hdmi Signal Transfer
HDMI signal transfer For a more stable power supply, it is recommended to use our Note: original power adapter to power. Note: If the Type-C port of your phone is not a full-featured Type-C port, or your phone is micro USB port,Lightning port, for example: Google Pixel 3, you need to buy the adapter as below. -
Page 7: Chapter 04 Setting Up(Windows10)
Chapter 04 Way2: Set via Windows key + P keyboard shortcut Setting Up(Windows10) A: Verify that your cables are connected properly to the new monitors. B: Enter the “Windows” key and “P”keyboard at the same time. C: select an option from the drop-down list to determine how your desktop will display across Extend Mode /Duplicate Mode/Display Mode your screens. -
Page 8: Rotate The Screen
Chapter 05 Screen Adjustment Rotate the Screen 1: Verify that your cables are connected properly to the new monitors. 2: Right-click anywhere on your desktop and select Display settings to open the Display page. On-Screen Display Menu Introduction 3: Under the "Select and rearrange displays" section, select the monitor that you want to adjust. 4: Under the "Scale and layout"... -
Page 9: Osdsetting
RESET LANGUAGE Chapter 06 Option Reset Q&A Source Auto Reset AutoColor Adjust Language English Abnormal conditions occurred - like the splash screen or spots when using the Autolmage Adjust AspectRatio Auto Volume monitor. 1. This situation is generally caused by insu cient voltage; Please check whether the OSDSetting Advance factory-packed cables are used, and then check whether an external PD power supply is... -
Page 10: Chapter 07 Service Support
Chapter 07 My camera and monitor are used together, but there is no display. What can I Service Support ① Not all cameras can be directly connected to the monitor, it is determined by the camera model. ② Please tell us your camera model and interface, we will help you solve it within Dear Customer, Thank you for purchasing the Portable USB Monitor! 12 hours.
