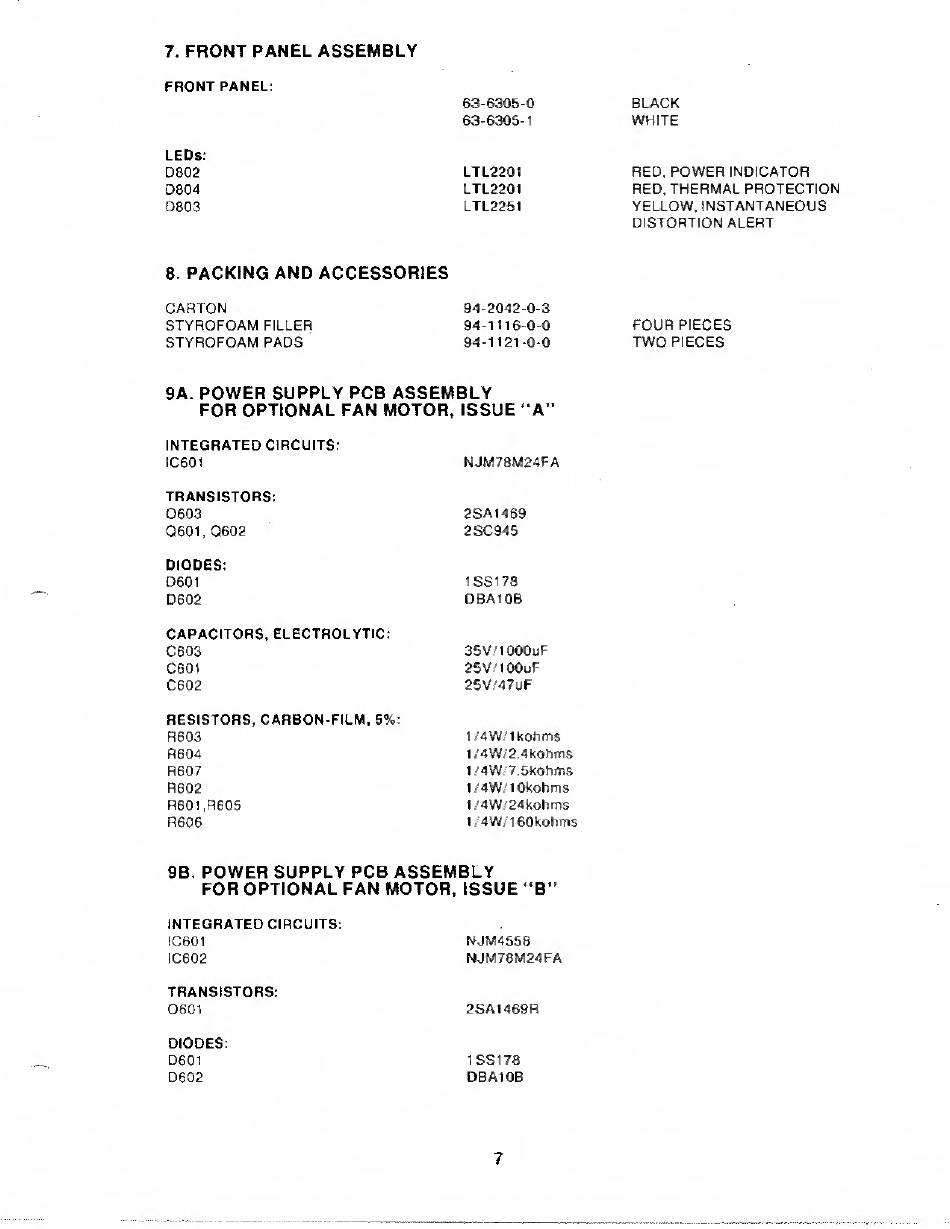

7. FRONT PANEL ASSEMBLY
FRONT PANEL:
63-6305-0 BLACK
63-6305-1 WHITE
LEDs:
D802 LTL2201 RED, POWER INDICATOR
D804 LTL2201 RED. THERMAL PROTECTION
D803
LTL2251 YELLOW, INSTANTANEOUS
DISTORTION ALERT
8. PACKING AND ACCESSORIES
CARTON
94-2042-0-3
STYROFOAM FILLER
94-1116-0-0
FOUR PIECES
STYROFOAM PADS
94-1121-0-0
TWO PIECES
9A. POWER SUPPLY PCB ASSEMBLY
FOR OPTIONAL FAN MOTOR, ISSUE "A "
INTEGRATED CIRCUITS;
IC601
NJM78M24FA
TRANSISTORS:
Q603 2SA1469
Q601,0602 2SC945
DIODES;
D601
1 SSI 78
D602 OBA10B
CAPACITORS. ELECTROLYTIC:
C603
35V/1000uF
C601
25V'l00uF
C602
25V/47uF
RESISTORS, CARBON-FILM. 5%:
R603 1/4W.'lkohtns
R604 l/4W/2.4kohms
R607
1/4W 7.5kohms
R602
1/4W/10kohnris
R601,R605
1/4W/24kohms
R606 1/4W.'l60kohms
9B. POWER SUPPLY PCB ASSEMBLY
FOR OPTIONAL FAN MOTOR, ISSUE ' B '
INTEGRATED CIRCUITS:
IC601 NJM4556
iC602
NJM78M24FA
TRANSISTORS;
0601 2SA1469R
DIODES:
D601
1 SSI 78
D602 DBA10B
7
