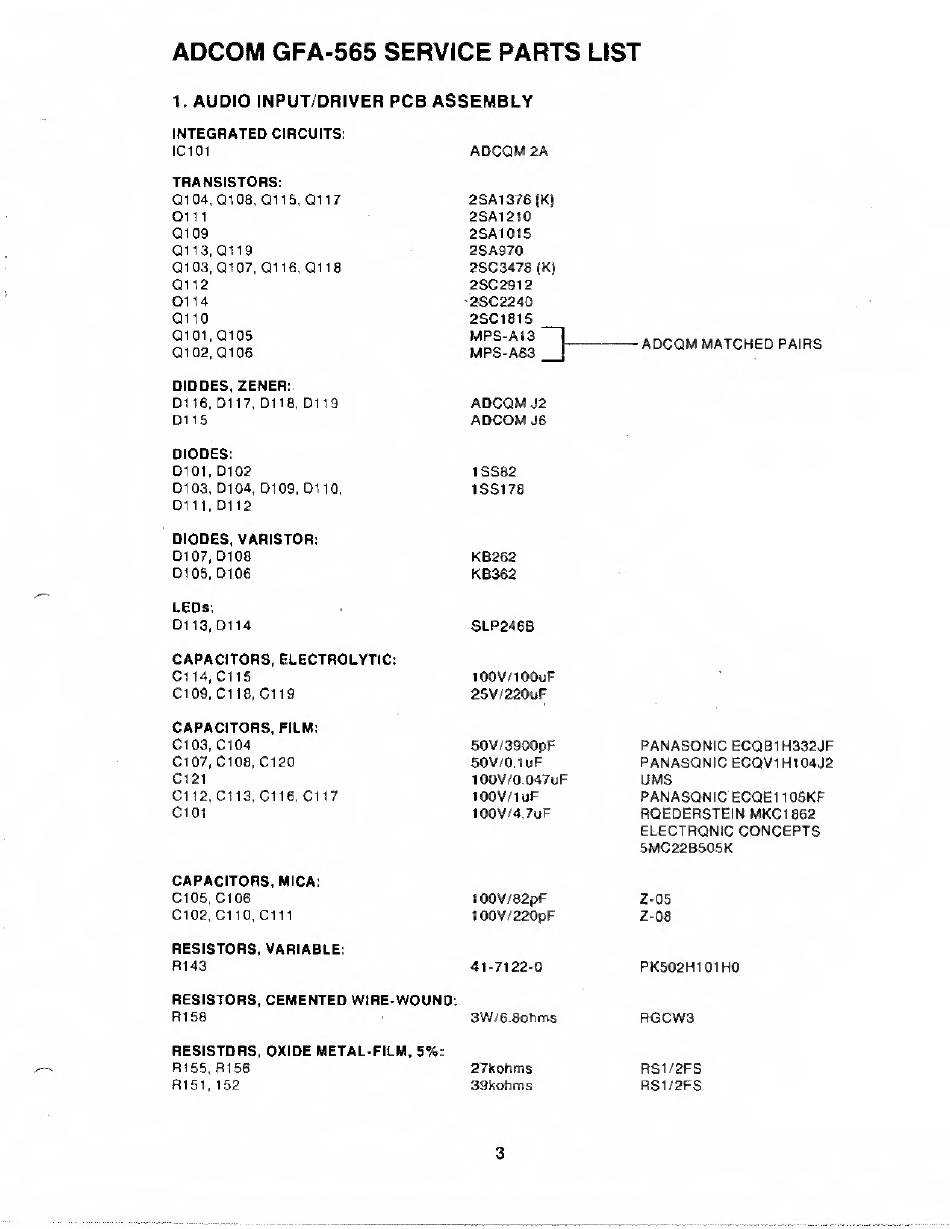

ADCOM GFA-565 SERVICE PARTS LIST
1. AUDIO INPUT/DRIVER PCB ASSEMBLY
INTEGRATED CIRCUITS:
IC101 ADCOM 2A
TRANSISTORS;
Q104, QlOa, 0115, 0117
0111
0109
0113,0119
0103,0107,0116,0118
0112
0114
Olio
0101,0105
2SA1376 |K)
2SA1210
2SA1015
2SA970
2SC3478 (K)
2SC2912
•2SC2240
2SC181S
MPS-AI3 1
0102,0106 MPS-A63 _j
AUOL/M fviAlwricU rMlnw
DIODES, ZENER;
D116, D117, D118, D119
□ 115
ADCOM J2
ADCOM J6
DIODES:
D101, D102
D103, D104, D109, 0110,
Dili, D112
1SS82
1 SSI 78
DIODES. VARISTOR:
0107, 0108
0105, 0106
KB262
KB362
LEDs;
0113,0114
SLP246B
CAPACITORS, ELECTROLYTIC:
C114,C115
C109,C118,C119
lOOV/IOOuF
25V/220uF
CAPACITORS, FILM:
C103, C104
C107, C108, C120
C121
C112,C113,C116,C117
ClOl
50V/3900pF
50V/0.1UF
100V/0.047uF
100V/luF
100V/4.7uF
PANASONIC ECQB1H332JF
PANASONIC ECQV1H104J2
UMS
PANASONIC ECQE1105KF
ROEDERSTEIN MKC1862
ELECTRONIC CONCEPTS
5MC22B505K
CAPACITORS, MICA:
C105, C106
C102, Cl 10, cm
100V/82pF
100V/220pF
Z-05
Z-08
RESISTORS, VARIABLE:
R143
41-7122-0
PK502H101HO
RESISTORS, CEMENTED WIRE-WOUND:
R158
3W/6.8ohms RGCW3
RESISTORS, OXIDE METAL-FILM, 5%:
R155, R156
R151,152
27kohms
39kohms
RS1/2FS
RS1/2FS
3
