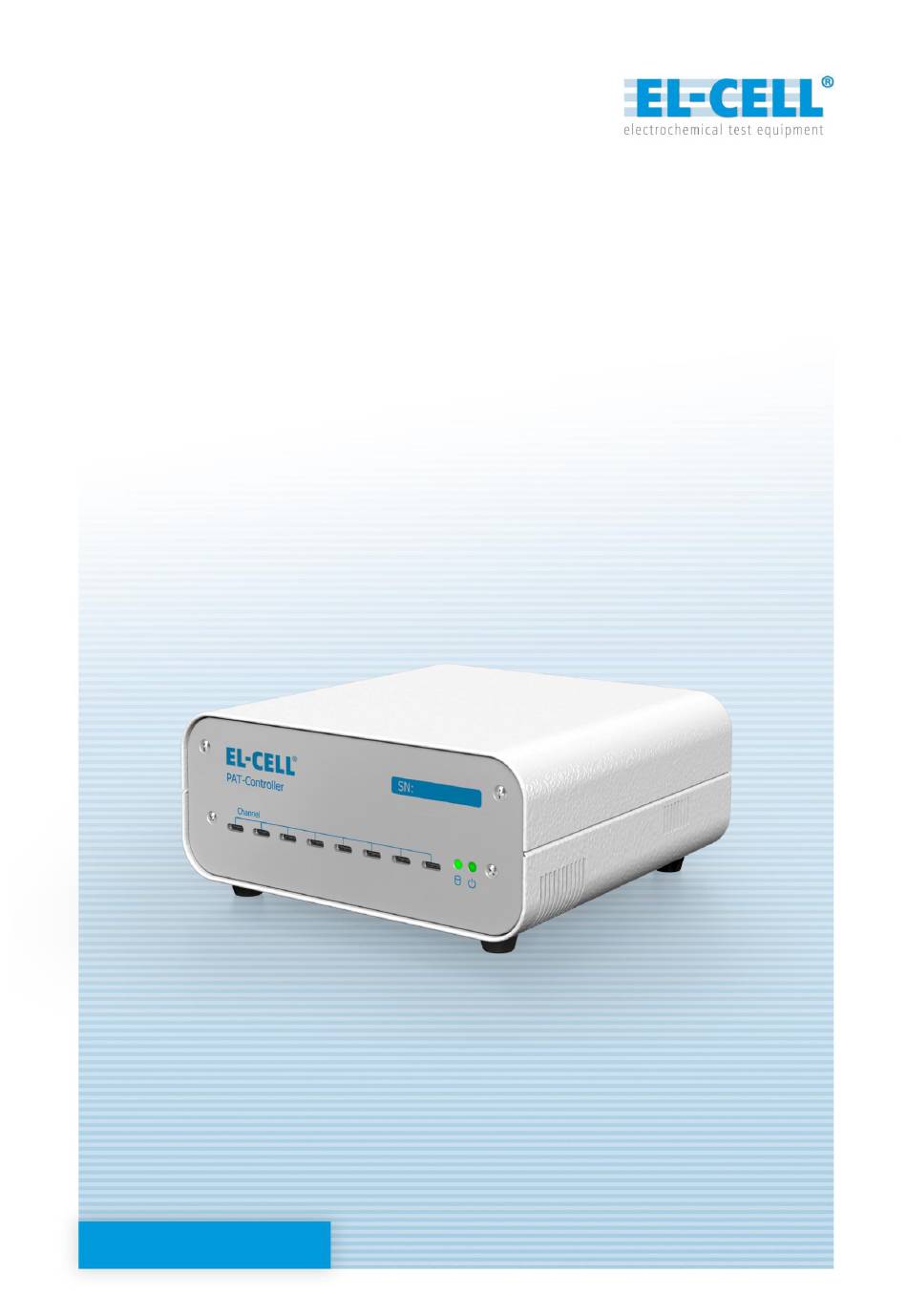

- Page 1 User Manual Release 1.21 PAT-Controller-8 Control box for up to 8 test channels © 2024 EL-CELL GmbH...
- Page 2 PAT-Controller-8 Disclaimer EL-Cell GmbH makes no assurances or warranties with respect to this manual and, to the extent permitted by law, limits its liability for violation of any implied warranty to the substitution of this manual for another. In addition, EL -Cell GmbH reserves the right to revise this publication at any time without notice to anyone.
- Page 3 User Manual PAT-Controller-8 Manufacturer and customer service EL-Cell GmbH Tempowerkring 8 21079 Hamburg – Germany Telephone: +49 40 79012-734 Telefax: +49 40 79012-736 Email: info@el-cell.com Website: el-cell.com Technical support Telephone: +49 40 79012-734 Email: support@el-cell.com Website: el-cell.com/support/technical-support/ Please always quote the serial number on the nameplate when contacting customer service.
-
Page 4: Table Of Contents
User Manual PAT-Controller-8 Content 1 Product Description ........................... 5 2 Features ................................ 6 3 Technical Data ............................6 4 Connections and Display .......................... 7 5 Safety Precautions ............................. 8 6 Installation ..............................9 7 Cleaning ..............................10 Unpacking .............................. 10 9 EC Declaration of Conformity ....................... -
Page 5: Product Description
PAT-Controller-8 1 Product Description The PAT-Controller-8 is a core component of each PAT-Tester-x. It manages the connected test channels and enables data traffic to the EL-Software server. The PAT-Controller features a network port for server communication and USB ports for connecting to up to 8 PAT-Channel-1 or PAT-Terminal-1 devices. -
Page 6: Features
User Manual PAT-Controller-8 2 Features LAN Port (RJ45) for server connectivity ▪ 8 USB 2.0 Hi-Speed, type C ports for connecting PAT-Channel-1 or PAT-Terminal-1 ▪ 3 Technical Data Height: 78 mm ▪ Length: 168 mm ▪ Width: 170 mm ▪... -
Page 7: Connections And Display

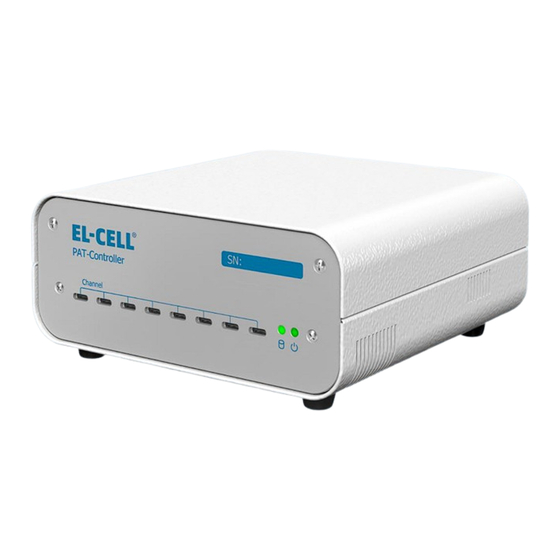

User Manual PAT-Controller-8 4 Connections and Display Front: USB 2.0 Hi-Speed, type C ports for PAT-Channel-1 connection HDD-LED (yellow): Indicates hard drive (SSD) access. Power-LED (green): Indicates deivce is powered on. Power-LED (red): ): Indicates a fan fault or over-temperature fault. -
Page 8: Safety Precautions
Risk of fire or electric shock when using a mains plug adapter that is not specified. Only the EL-Cell-provided power supply is approved for use with this device. Page 8 of 14... -
Page 9: Installation
3. Connect the PAT-Controller-8 to the network via LAN cable. 4. Follow the necessary steps to add the PAT-Controller-8 as a new device in EL-Software (see EL-Software manual for details). 5. You can now connect PAT-Channel-1 or PAT-Terminal-1 devices by plugging them into the front panel of the PAT-Controller via a USB cable. -
Page 10: Cleaning
User Manual PAT-Controller-8 7 Cleaning Wipe the PAT-Controller-8 with a moist tissue. Do not use aggressive chemicals for cleaning. Protect the device from dust and moisture. 8 Unpacking Please check the packages' contents against the list below to verify that you have received all of the required components. -
Page 11: Ec Declaration Of Conformity
User Manual PAT-Controller-8 9 EC Declaration of Conformity Page 11 of 14 Release 1.21... - Page 12 User Manual PAT-Controller-8 The products described conform with the following harmonized standards: EN 61010-1:2010 Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte – Teil 1: Allgemeine Anforderungen (DIN EN 61010-1, VDE 0411-1:2011-07) Safety requirements for electrical equipment for measurement, control and laboratory use - Part 1: General requirements (IEC 61010-1:2010 + Cor.
- Page 13 User Manual PAT-Controller-8 EN 61326-2-3:2013-07 Elektrische Mess-, Steuer-, Regel- und Laborgeräte - EMV- Anforderungen - Teil 2-3: Besondere Anforderungen - Prüfanordnung, Betriebsbedingungen und Leistungsmerkmale für Messgrößenumformer mit integrierter oder abgesetzter Signalaufbereitung (DIN EN 61326-2-3:2013-07, VDE 0843-20-2-3:2013-07) Electrical equipment for measurement, control and laboratory...
-
Page 14: Warranty
User Manual PAT-Controller-8 10 Warranty For a period of one year from the date of shipment, EL -Cell GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option, demand return...
