GE JX9153 Installation Instructions Manual

Installation
Instructions
Questions? Call GE Appliances Answer Center at 800.626.2000 or Visit our Website at: GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
•
for local inspector's use.
IMPORTANT
•
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time – 1 to 3 hours
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is not
covered under the Warranty.
• This kit is for use on models:PCWK15C1, PEB9159,
CEB1599
• This kit and microwave are approved for installation
alone or above any single electric wall oven. Do
not mount adjacent (within 2 feet) to any range,
cooktop, gas oven, or other microwave.
• This product is to be installed 3 feet above floor
level.
• Do not alter or modify any part of this kit or the
oven.
• For easier installation and personal safety, we
recommend that two people install this microwave
oven.
• Unplug the microwave oven before attempting
installation of this kit.
WARNING
This oven must be plugged into a
properly grounded 3-hole, 120 volt receptacle as
required by the National Electrical Code.
WARNING
Before beginning the installation,
switch power off at service panel and lock the
service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
READ CAREFULLY. KEEP THESE INSTRUCTIONS.
— Save these instructions
—
Observe all governing
Microwave Oven
Built-In Trim Kits
JX9152 and JX9153

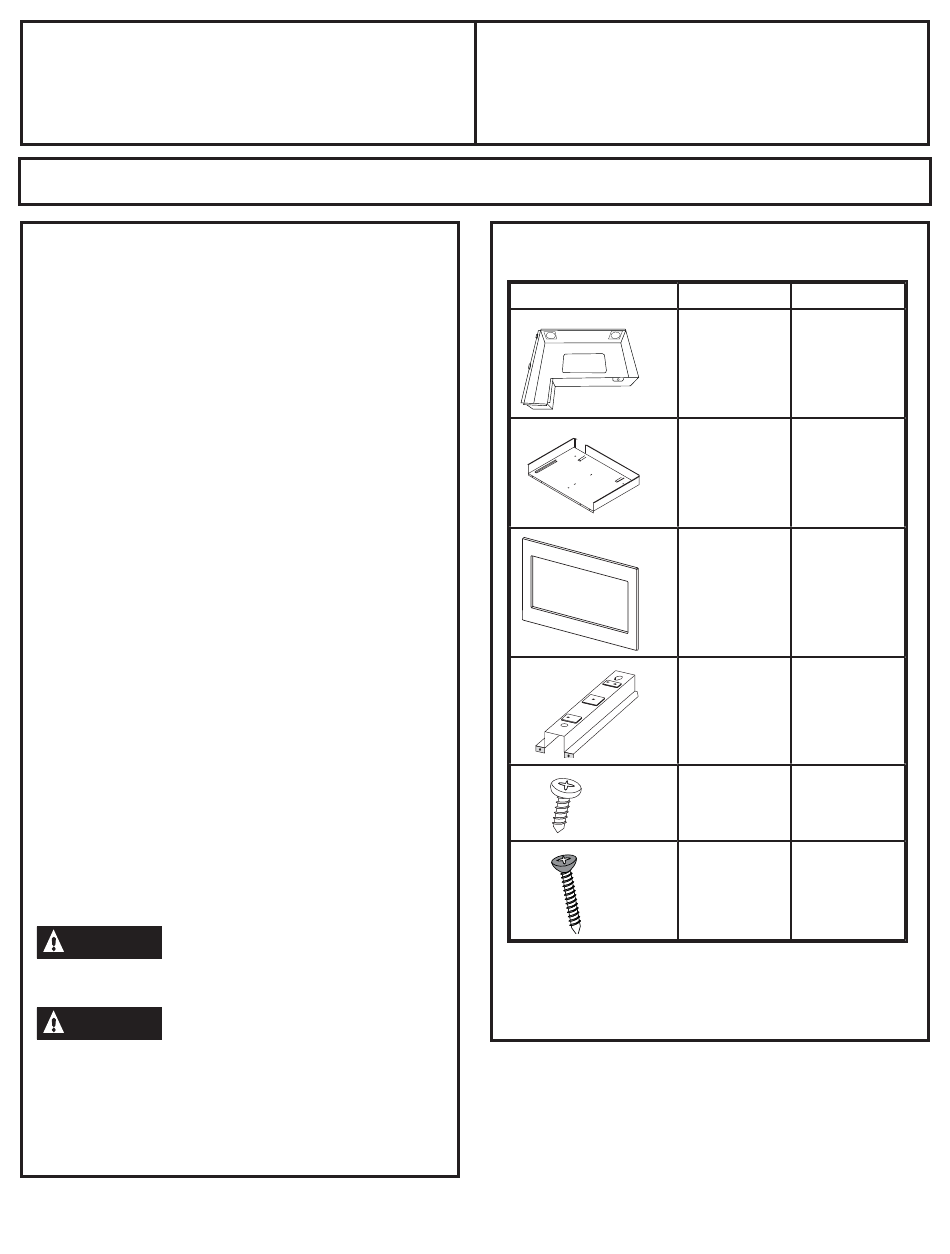

PARTS INCLUDED
PART
NOTE: This kit has extra screws to prevent the
technician from spending extra time locating a
replacement in case they lose one during installation.
QUANITY
Rear Duct 1
Bottom Duct 1
Trim Kit Frame 1
Rail 2
16 required
Short Screws
3 extra
Long Wood 4 required
Screws 2 extra
31-7000308 Rev. 0 08-24
