CARVIN SHARKJET Owner's Manual
  1. Manuals
  2. Brands
  3. CARVIN Manuals
  4. Water Pump
  5. SHARKJET
  6. Owner's manual

CARVIN SHARKJET Owner's Manual

Above ground pool pump
Hide thumbs Also See for SHARKJET:
1
2
3
4
5
6

Advertisement

Table of Contents

Above Ground Pool Pump
Use Only Genuine Replacement Parts
WARNING -
READ THIS MANUAL BEFORE INSTALLING AND OPERATING SHARKJET PUMP. IT INCLUDES IMPORT-
ANT INFORMATION ABOUT SAFE USE OF THIS PRODUCT.
M22904246A
Owner's Manual
WWW.CARVINPOOL.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHARKJET and is the answer not in the manual?

Questions and answers

Related Manuals for CARVIN SHARKJET

Summary of Contents for CARVIN SHARKJET

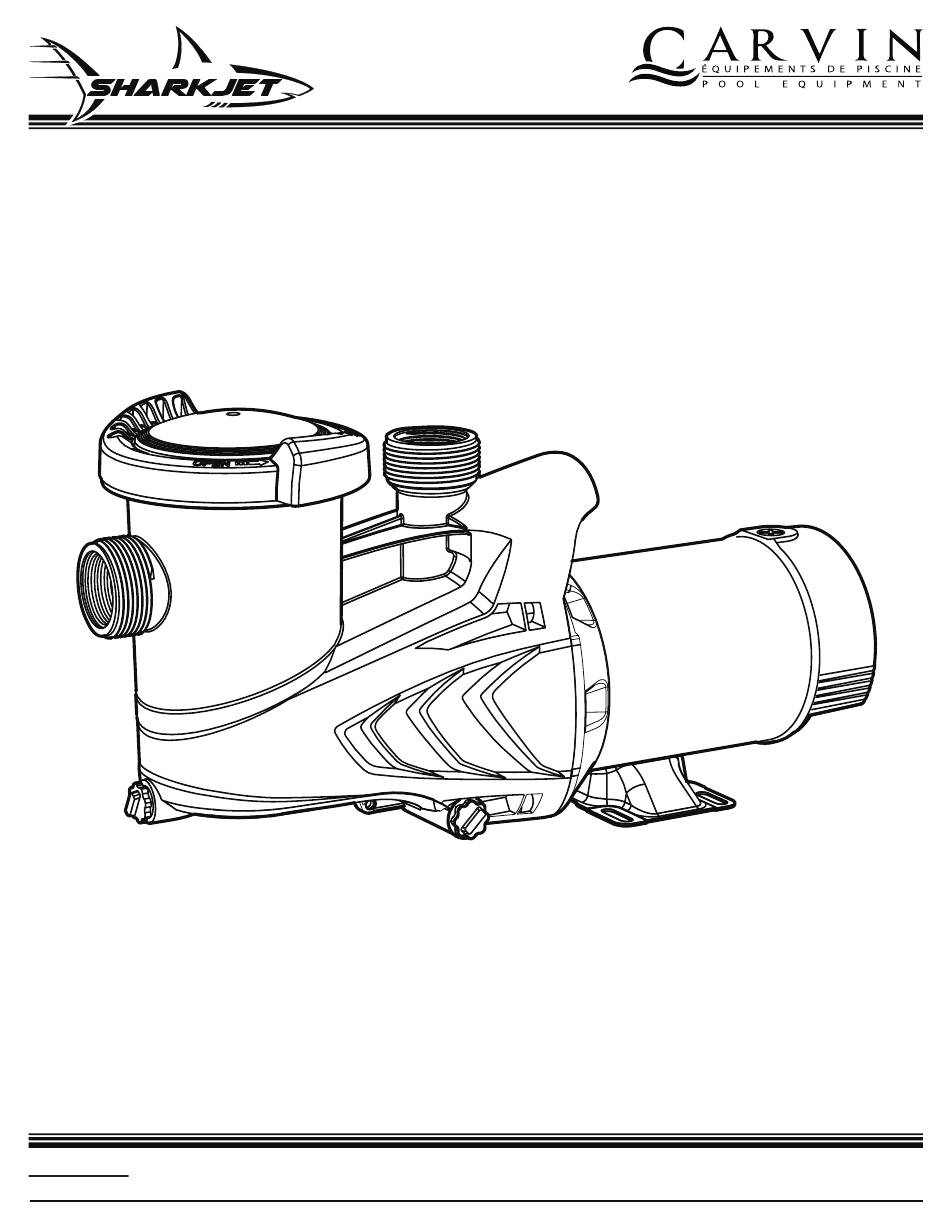

  • Page 1 Above Ground Pool Pump Owner’s Manual Use Only Genuine Replacement Parts WARNING - READ THIS MANUAL BEFORE INSTALLING AND OPERATING SHARKJET PUMP. IT INCLUDES IMPORT- ANT INFORMATION ABOUT SAFE USE OF THIS PRODUCT. WWW.CARVINPOOL.COM M22904246A...

  • Page 2: Important Safety Instructions

    PLEASE read this manual before installing the pump Before installation, be sure to read all instructions and warnings carefully. Refer to product dataplate(s) for additionnal operation instruction and specifications Important Safety Instructions When installing and using this electrical equipment, basic safety precautions should always be followed , including the following: R R I I S S K K O O F F S S U U C C T T I I O O N N E E N N T T R R A A P P M M E E N N T T H H A A Z Z A A R R D D To reduce risk of injury, do not permit WARNING!

  • Page 3: Installation

    For easy access to the working line. Locate and correct any leaks immediately. parts, the removal of four screws allows the motor, bracket, seal, impeller and diffuser to be withdrawn as a unit. SharkJet assemblies were simpli- Never run the pump without water in CAUTION! fied for ease of maintenance and repair.

  • Page 4: Frequently Asked Questions

    STRAINER NUT INSTALLATION (Fig.1) 2.TIGHTENING TURN STRAINER NUT 1/4 TURN CLOCKWISE 1.INSERTION TO TIGHTEN ALIGN MARKERS OF THE STRAINER BODY AND INSERT. TO DISMANTLE THE PUMP SHAFT SEAL REPLACEMENT IMPORTANT: BE SURE THE ELECTRICAL POWER IS DISCON- Take great care while handling the shaft seal (12) to avoid damage to its NECTED BEFORE YOU CONTINUE.

  • Page 5: Diffuser Removal

    DISMANTLING (Fig. 3) (Fig. 4) 1. BOLT REMOVAL 2. DIFFUSER REMOVAL INSERT A SMALL SCREWDRIVER BETWEEN THE TWO SNAPS ON USING A 9/16’’ SOCKET, THE MOTOR BRACKET. lIFT REMOVE THE FOUR GENTLY THE DIFFUSER’S TAB TO NUTS/BOLTS HOLDING THE RELEASE. MOTOR TO THE BODY (REPEAT ON THE OTHER SIDE) (Fig.

  • Page 6: Replacement Parts

    47-0214-06-R liability for any unauthorized warranties made in connection 06-0517-39-R Sharkjet Diffuseur with the sale of its products. ‘’CARVIN’’ will not be responsible 10-1462-07-R Floating eye seal for any statements that are made or published, written or oral, Impeller for 3/4 hp motors...
