brena TWW03PTZ User Manual

Dual lens baby/pet/home/business wifi camera
Hide thumbs Also See for TWW03PTZ:

Advertisement

Quick Links

Download this manual
Brena Dual Lens Baby/Pet/Home/Business
Wifi Camera
User Manual
Model: TWW03PTZ

Advertisement

loading
Need help?

Need help?

Do you have a question about the TWW03PTZ and is the answer not in the manual?

Questions and answers

Related Manuals for brena TWW03PTZ

Summary of Contents for brena TWW03PTZ

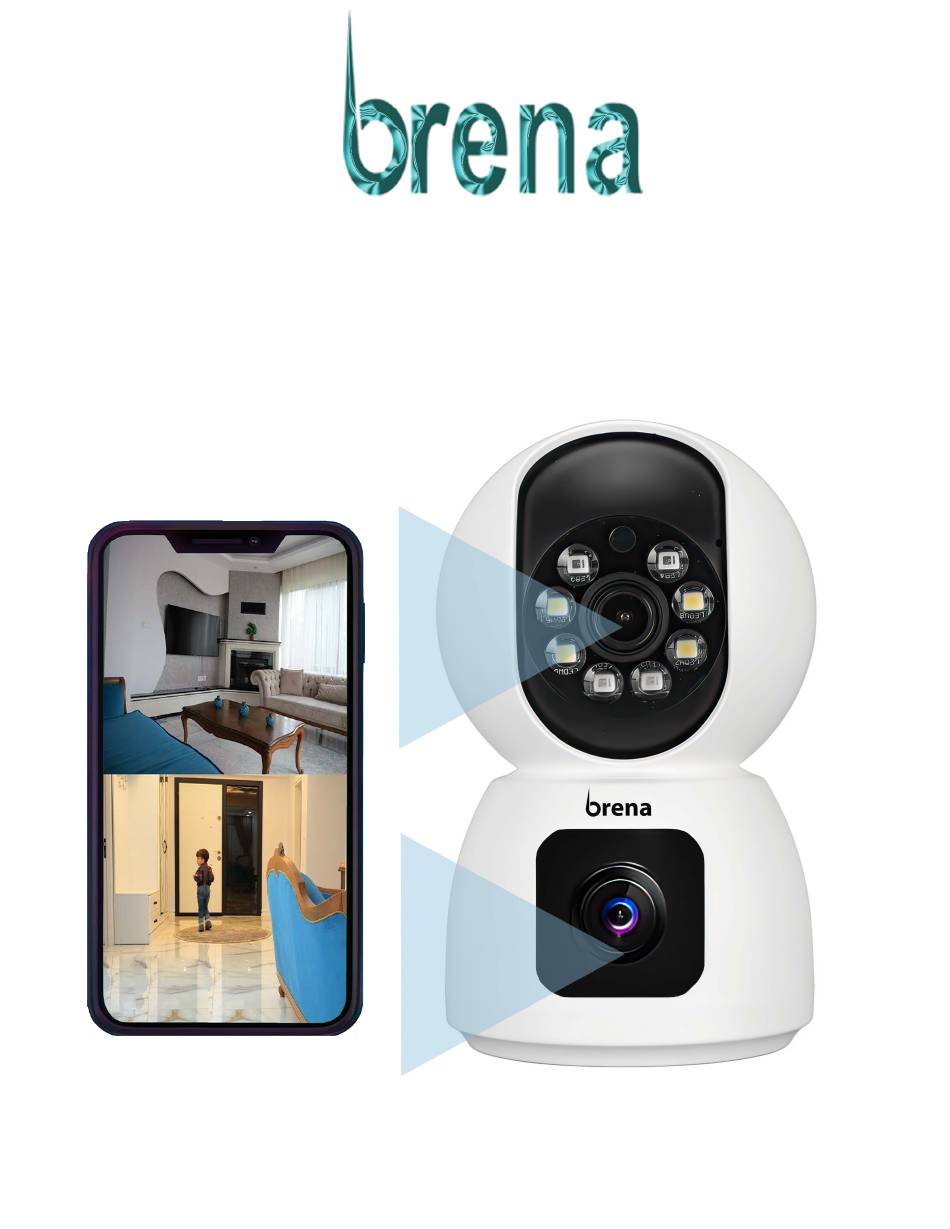

  • Page 1 Brena Dual Lens Baby/Pet/Home/Business Wifi Camera User Manual Model: TWW03PTZ...
  • Page 2 Brena. The end user is responsible for all freight charges incurred to send the product to Brena's repair center. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
  • Page 3 Power Adapter Safety Information • Please note the charger can become warm during operation • Do not open the charger • Keep the charger in a dry place (indoor use only) • Do not use the charger if there is any sign of damage to the enclosure or pins •...
  • Page 4 SPECS: Main Processor: Dual-core 32-bit DSP, Pure Hard Compression Image Sensor: 2 x 3mp 1/2.8" GC1084 High Performance CMOS Sensors Operating System: Embedded LINUX Operating System System: Video Compression: Smart H.265X Focal Length Of Lens: 4MM High Definition: 2x3MP Image Resolution: Main Code Stream: 2048*1536@12fps; Substream: 640*720@12fps Video: Minimum Illumination: 0.01 LUX/Pro Series...
  • Page 5 Camera Connection: If you need local Reset Button storage please install the memory card into this slot Connect one end of the usb cable to the power adapter and the other end into the back of the camera...
  • Page 6 Camera Installation: Multiple Installation Methods Desktop Wall Ceiling...
  • Page 7 Quick Operation Guide : Step 1 Download and install the App Option 1: Scan the QR code below to download the "okam pro" app. Option 2: Search "okam pro" in the App or Play store. Step 2 Turn on the power After powering on the camera you will hear the prompt "Please use App to configure Wifi".
  • Page 8 Step 3 Configure the network of the camera 1. Connect your phone to a WIFI network and turn on the Bluetooth on your phone. (Figure 1) This camera can connect to both 2.4ghz & 5ghz networks 2. Open the "OKAM" app, click on "Agree" for Privacy Policy. (Figure 2) Figure 1 Figure 2...
  • Page 9 3. Click on "Register Now". (Figure 3) 4. Enter the preferred email address that you want to register with, tick the user agreement and finally tap on the "Get verification code" button. (Figure 4) Figure 4...
  • Page 10 5. You will be prompted to enter the verification code sent to your email address. (Figure 5) Open the email received by the app service to obtain your code. (Figure 6) Figure 6 Figure 5...
  • Page 11 6. After verifying your email you will be notified that you have Registered Successfully and will be asked to enter a password of your choice for your account, once completed click on the Done button. (Figure 7) 7. The app will automatically add your account details onto the screen for you to continue to login, Click on the Login button.
  • Page 12 8. Allow Okam to access the devices location. (Figure 9) 9. Allow Okam to find, connect to and determine the relative position of nearby devices. (Figure 10) Figure 9 Figure 10...
  • Page 13 10. Allow Okam to send you notifications. (Figure 11) 11. If you switched your Bluetooth on, the app will automatically find your new device and will ask you to connect. (Figure 12) (If the camera is not found automatically please close the app completely where it is not running in the background and then reopen the app, try to search for the device again.
  • Page 14 12. From the drop-down menu select the Wi-Fi network you want to connect the camera to and enter your networks password. (Figure 13) 13. You will be prompted to confirm whether your Wi-Fi name and password are correct, click on the Confirm button.
  • Page 15 14. Please wait while the camera connects to the app & network. (Figure 15) 15. Name your camera with a preferred name or select from the options listed, then click on Started. (Figure 16) Figure 15 Figure 16...
  • Page 16 16. If you wish to receive Mobile Notifications when abnormality is detected then switch Notification push function on and click on Started. (Figure 17) 17. The device is displayed in the device list interface. Click to open the real time preview screen and carry out relevant operations and settings.
  • Page 17 Adding Camera Manually If the app did not find the device with Bluetooth, please follow the next steps. 1. Click on the +Add button. (Figure 19) 2. Allow Okam to take pictures and record videos. (Figure 20) Figure 19 Figure 20...
  • Page 18 3. Scan the barcode located on the bottom of the camera or select Wireless camera and follow on screen directions. (Figure 21) 4. Confirm that the device is ready for network connection by plugging in the power and selecting " I heard the prompt tone or see the indicator light flashing"...
  • Page 19 5. From the drop-down menu select the WiFi network you want to connect the camera to and enter your networks password. (Figure 23) 6. You will be prompted to confirm whether your WiFi name and password are correct, click on the Confirm button.
  • Page 20 7. Point the QR Code on your phone at the device lens and keep it 15-30cm away until the device makes a beep sound. (Figure 25 & 26) Figure 25 Figure 26...
  • Page 21 8. Please wait while the camera connects to the app and network. (Figure 9. Name your camera with a preferred name or select from the options listed, then click on Started. (Figure 28) Figure 27 Figure 28...
  • Page 22 10. If you wish to receive Mobile Notifications when abnormality is detected then switch Notification push function on and click on Started. (Figure 29) 11. The device is displayed in the device list interface. Click to open the real time preview screen and carry out relevant operations and settings.
  • Page 23 Homepage Silencing mobile notifications, Sharing your device, Playback of recorded footage and further Settings can be performed from the homepage. Silence mobile notifications Share your device with others Watch recorded video via cloud or SD card Change settings of device...
  • Page 24 App Interface There are 2 pages of functions on the App interface, swipe left & right to switch between pages.
  • Page 25 App Functions Use this function to switch between definitions, Super HD, SD Tap the speaker to listen to the audio coming from camera Tap on the intercom microphone to speak Tap to go full screen, once you are in full screen tap once on the camera you wish to view to enlargen picture...
  • Page 26 Motion Detection 1. Tap on the Motion Detection section. 2. Click on Motion Detection. 3. If you want to receive mobile notifications when any kind of motion is detected then select Motion Detection. If you want to receive mobile notifications only when humans are detected then select Human Detection...
  • Page 27 Motion Detection Continued Human Frame 1. Tap on Human frame. 2. Switch on if you would like to frame people automatically on live viewing, this option helps you filter out other objects and quickly follow the persons movements.
  • Page 28 Motion Detection Continued Person Tracking 1. Tap on Person tracking. 2. Switch on if you want the camera to track and follow peoples movement in real time. This option will cause the camera to rotate left, right, up & down and follow according to the persons actions.
  • Page 29 PTZ Function (Pan, Tilt and Zoom) 1. Tap on the PTZ Section. 2. Long-press the arrow keys to control the rotation direction of the PTZ. 3. When you press - the camera pans in and the scene zooms in. When you press + the camera pans out and the scene zooms out.
  • Page 30 Quick Actions Tap to sound the siren and scare people away Tap to take a screenshot of live view Tap to record a video of live view Screenshots and Recordings can be found in your album on the app. To access go to the Homepage of app and select the "Mine"...
  • Page 31 Night Vision 1. Tap on Night Vision 2. Set the light settings according to your needs from the options below. 1. Black and white night vision: Will use infrared lights which are not too visible however picture at night will be black & white. Full color night...
  • Page 32 Activity Zone Tap on the Activity Zone section This function only works if you have activated Motion/Human detection 1. Using your finger, Smear the areas that are unnecessary to you and which you do not want to receive mobile notifications for when motion is detected 2.
  • Page 33 2 Way Audio Settings By default the 2 way audio is set to Phone mode which supports two way calls where you can speak and listen at the same time making the operating experience more convenient. For clearer and louder sounds we recommend you use the Intercom mode This function supports only one way (press to speak, then press to listen) 1.
  • Page 34 2 Way Audio Continued 3. Scroll down to Call mode and tap on the option 4. Select the call mode you wish to use 5. Click on the Save button...
  • Page 35 Recording & TF /SD Card Settings 1. Go to Settings 2. Tap on TF Record Settings...
  • Page 36 Recording & TF/Sd Card Settings Continued 1. From the TF Card Settings you can choose which resolution to record in.(Super HD, HD or SD) 2. From the Recording Mode option you can choose how you want to record. (No recording, Recording, Schedule Recording Motion...
  • Page 37 Playback 1. Tap the TF Card section located at bottom right of app interface. 2. From the date drop down menu select the date you want to watch footage from. 3. Scroll down or use the time bar to search for a recording, then tap on it to play.
  • Page 38 Image Flip (when camera installed on ceiling) When you install the camera upside down or on a ceiling, the image will be the wrong way up. To correct this follow the next steps: 1. Go to Settings 2. Select Device Settings...
  • Page 39 Image Flip Continued 3. Scroll down to Video Management 4. Select the option Flip Upside Down...
  • Page 40 Share Device You can share the device with Friends & Family members, The invitee needs to install the Okam Pro App and register an account to scan the shared QR code to add a camera. 1. Go to the Homepage of App and click on Share (You can also find the share function through the settings page)
  • Page 41 Share Device Continued The QR code is valid for 30 minutes and each QR code can only be added by one user, additional user will need a new QR code. 2. Choose whether you want to share with permissions or without permissions, then tap on the share button located at top right of screen.
  • Page 42 Q: How does the camera store video? A: 1. The camera comes with an external SD Card Slot. By inserting an SD card into the slot, the video can be saved. It is recommended to use an SD card larger than 8GB to avoid running out of storage. The camera supports SD cards from 8GB to 256GB in size.
  • Page 43 Once again at Brena we would like to thank you for your purchase and hope to provide you with every solution possible in any trouble you may have. Please visit our website for detailed instruction videos, support and further products or contact us at: Web: brena.uk...
  • Page 44 61 Bridge Street Kington Herefordshire HR5 3DJ...
