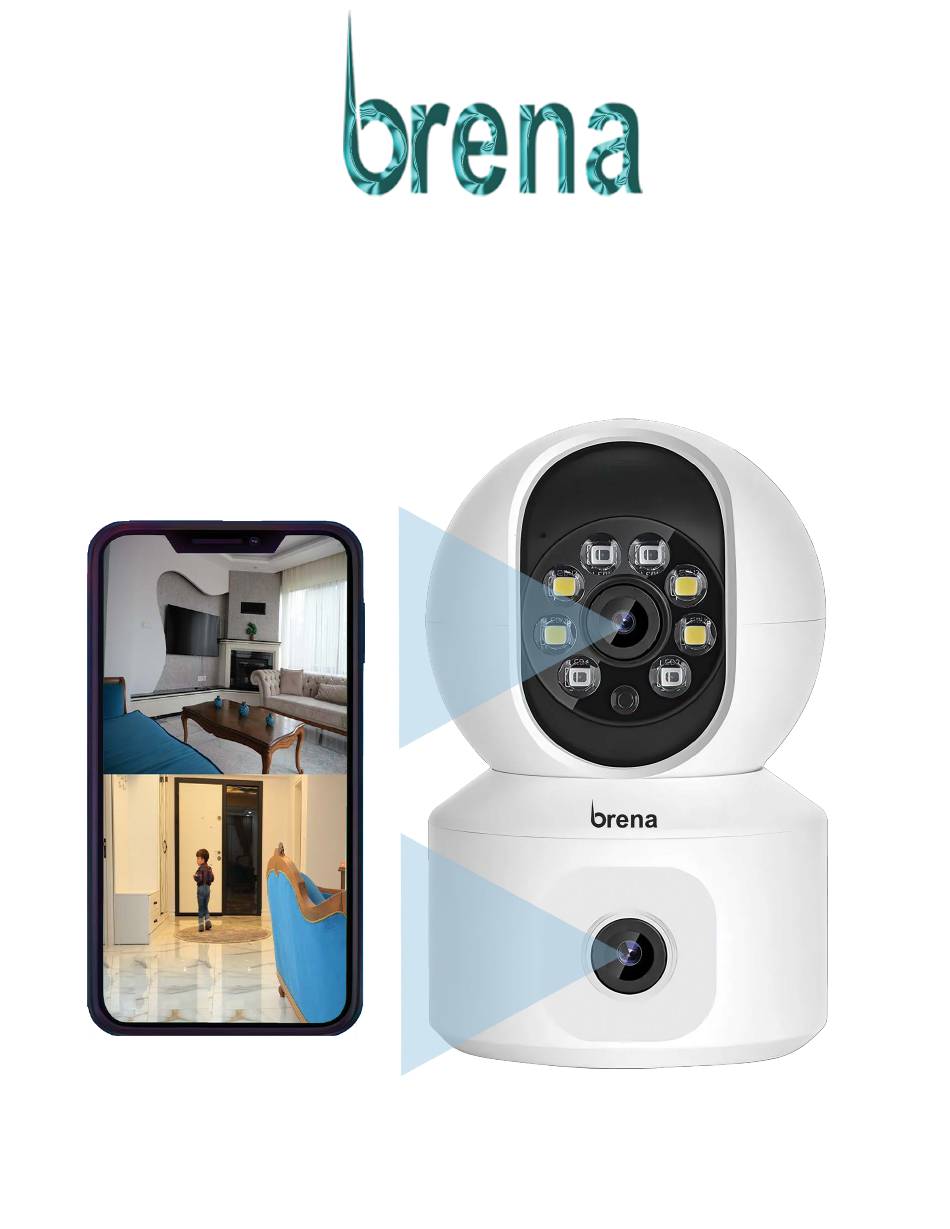

- Page 1 Brena Dual Lens Baby/Pet/Home Wifi Camera User Manual Model: TWW03PTZ...
- Page 2 Brena. The end user is responsible for all freight charges incurred to send the product to Brena's repair center. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
- Page 3 Power Adapter Safety Information • Please note the charger can become warm during operation • Do not open the charger • Keep the charger in a dry place (indoor use only) • Do not use the charger if there is any sign of damage to the enclosure or pins •...
- Page 4 SPECS: Main Processor: Dual-core 32-bit DSP, Pure Hard Compression Image Sensor: 2 x 3mp 1/2.8" SC233A High Performance CMOS Sensors Operating System: Embedded LINUX Operating System System: Video Compression: Smart H.265X App: ICSEE (Android and IOS Support) High Definition: 2x3MP Image Resolution: Main Code Stream: 2048*1536@12fps;...
- Page 5 Camera Connection: If you need local storage please Reset Button install the memory card into this slot Connect one end of the usb cable to the power adapter and the other end into the back of the camera...
- Page 6 Camera Installation: Multiple Installation Methods Desktop Wall Ceiling...
- Page 7 Quick Operation Guide : Step 1 Download and install the App Option 1: Scan the QR code below to download the "icsee" app Option 2: Search "icsee" in the App or Play store Step 2 Turn on the power After powering on the camera you will hear a prompt "waiting for connection, please configure the network according to the instructions"...
- Page 8 Step 3 Configure the network of the camera 1. Connect your phone to a WIFI network and turn on Bluetooth (Figure 1) 2. Open the icsee app, Register an account (Figure 2) Figure 1 Figure 2...
- Page 9 3. Enter the email address you want to register with and create a password of your choice,click on the NEXT button (Figure 3) You will be sent an email verification to the email entered at registration, please check your inbox (Figure 4) Figure 4...
- Page 10 4. Open the email received by the app service and click on the Verify button(Figure 5) Figure 5 5. After verifying your email you will be notified with the following message (Figure 6), and the app will automatically add your account details onto the screen for you to continue and login Figure 6...
- Page 11 Login (Figure 7) 7. Allow While using the app (Figure 8) Figure 7 Figure 8...
- Page 12 8. Allow icsee to find, connect to and determine the relative position of nearby devices (Figure 9) 9. Click on the I Know button (Figure 10) Figure 9 Figure 10...
- Page 13 10. After successful login, Click the button in the center or top right of the screen (Figure 11) 11. The app will automatically find your connected device due to Bluetooth being turned on, Click on (Figure 12) (if the camera is not found please turn the phone bluetooth off for 5 seconds and turn it back on, then search again.
- Page 14 12. Enter the wireless router password and click on (Figure 13) 13. Wait for the camera network configuration, when you hear the prompt "connect router successfully" the router setup is now complete (Figure 14) Figure 13 Figure 14...
- Page 15 14. Name your device with one of the options or use a custom name and click on the Save button (Figure 15) 15. Select your preferred Storage Method if required and click on the Next button (Figure 16) Figure 15 Figure 16...
- Page 16 16. After the configuration is complete, if you want to receive app notifications to your phone when camera detects movement etc, allow Alarm push On or Off (Figure 17) This option along with many more app notification settings can also be found in Settings - Smart Alarm The device is displayed in the device list interface.
-
Page 17: Wifi Network Configuration
Wifi Network Configuration If your device does not support bluetooth or the bluetooth configuration fails, please configure the camera as follows. 1. Connect your phone to a Wifi network 2. Login to the icsee App, click on the button in the center or top right of the screen (Figure 19) and select Wifi Camera (Figure 20) 3. - Page 18 Modify Device Password We strongly advise you to change the device password to avoid being misappropriated by criminals. Step 1. Click on Settings (Figure 21) Step 2. Click on About Device (Figure 22) Figure 21 Figure 22...
- Page 19 Step 3. Click on Device password (Figure 23) Input a Device Login Name and Password of your choice and click on Confirm Change button (Figure 24) • • Figure 23 Figure 24...
- Page 20 Q: How does the camera store video? A: 1. The camera comes with an external SD Card Slot. By inserting an SD card into the slot, the video can be saved. It is recommended to use an SD card larger than 8GB to avoid running out of storage. The camera supports SD cards from 8GB to 256GB in size.
- Page 21 Once again at Brena we would like to thank you for your purchase and hope to provide you with every solution possible in any trouble you may have. Please visit our website for detailed instruction videos, support and further products or contact us at: Web: brena.uk...
- Page 22 61 Bridge Street Kington Herefordshire HR5 3DJ...
