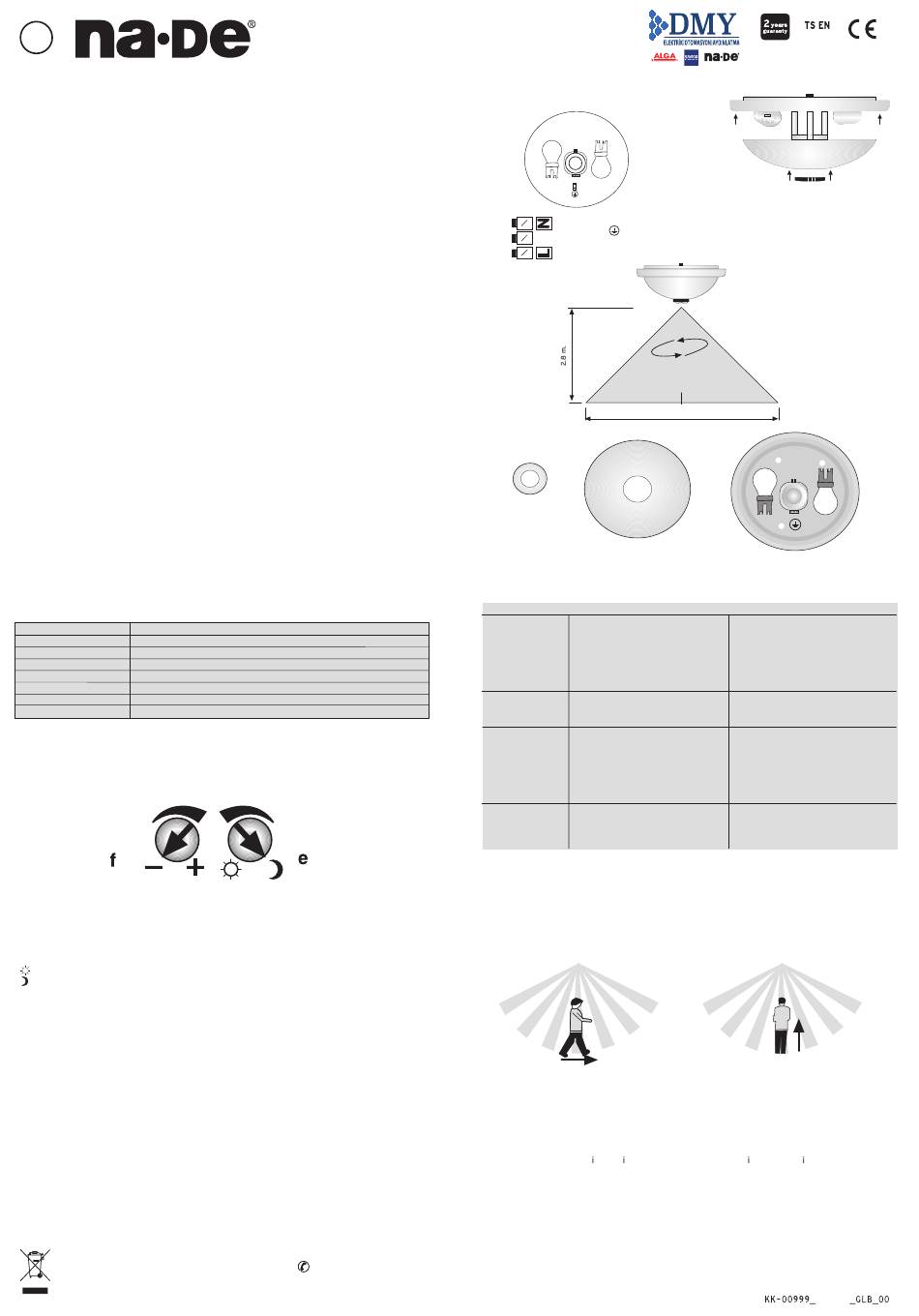

NA-DE 00999 Quick Start Manual

Ceiling armature with 360 motion sensor

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

GB
CEILING ARMATURE WITH 360° MOTION SENSOR
USAGE AREAS
• At the building entrances, stair vestibules.
• At the long halls within the flats.
• At the places required within the flats.
• At the parking garage.
• At the requisite locations within the hotels.
• At the schools, hospitals and oil filing station.
"OFFERS ENERGY SAVING FEATURE''
GENERAL SECURITY CAUTIONS
• Take off the original package and control if there is any damage of transportation and general
view of the product.
• Do not use the product at cross purposes.
• Keep it away from water and moist areas.
• Do not use the product at dusty, dirty and rusty places.
• Do not supply high voltage.
• Do not apply any liquid.
• Protect from any stroke.
• Using ~230-240V voltage is so dangerous that only the specialist electricians must install
and apply.
CAUTIONS FOR INSTALLATION AND USAGE
• Installing must be carried out professionally in accordance with applicable national wiring and
electrical operating conditions.
• Turn of the network before mounting.
• Do not mount the product near the radiator and moist areas.
• Place the product horizontal to the ceiling.
• Fix the bulbs before operating.
• Use 6A fuse the supply input.
• Factory setting; daylight adjustment is at darkness, time adjustment is at the shortest.
• Setting can be made 10 - 15 second after the releasing of the power.
• Time and daylight setting can be made during the day or night.
• Do not change the time and daylight settings abruptly.
• Do not make a second adjustment before you get a result from the first setting of the time
and daylight.
• After you determine the right setting of the daylight, you can arrange the time as you need.
• The best result for the daylight setting can be obtained by adjusting the minimum. And that
you can find the correct setting for sensitivity incrementally.
• When a cleaning needed for the glass, take of carefully and clean with a dry rag.
• Avoid mounting the detector close to objects that can cause rapid temperature changes such
as heaters, fans, refrigerators and ovents etc, and prevent the detector from point-blank
sunshine.
• It can cause the device operate inaccurately if there is tree, brushes etc. in the coverage area.
• The product has Y type connection.
SPECIFICATIONS
Operating voltage
~230-240V / 50-60 Hz
Angle of coverage
360°
Mounting Height
2.8 m.
Detection Range
9 m.
10 sec. ± 1 sec. / 5 min. ± 10 sec.
Time setting
Lighting load
Max 2x10W E27 Led bulb
Protection class
IP20
Opr. temperature
-20 °C ~ +40°C
The sensing distance is provided according to the +20 °C ambient conditions.
SETTING
(e) Daylight setting
The sensor's response threshold can be infinitely varied from 2-2000 lux. If you turn the knob
clockwise device will operate at dark.
Control dial set = daylight operation approx. 2000 lux.
Control dial set = night-time operation approx. 2 lux.
(f) Time setting
Light ON time can be adjusted continuously from "10 sec. ± 1 sec. / 5 min. ± 10 sec." If you turn
the knob anticlockwise device will operate at minimum time. (10 seconds)
Control dial set to - = Shortest time (10 sec. ± 1 sec.)
Control dial set to + = Longest time (5 min. ± 10 sec.)
NOTE: Device will automatically make its own offset by checking environment for approximately
5 minutes after the first installation. After this period device will operate normally. If you think
the device does not operate normal in first installation, please wait for 5 minutes and start to
test again. Be sure that there is no motion by this period.
www.dmyeoa.com info@dmyeoa.com. tr
Emek Mah. Ordu Cad. No:. 49, 34785
Sancaktepe/İSTANBUL - TÜRKİYE
00999
Class l
444 6 233
ELECTRICAL CONNECTION
Neutral line
Phase line
DETECTING RANGE
SYSTEM COMPONENTS
(a)
(b)
(a) Clamping washer
(b) Glass Cover
(c) Ceiling mount
(d) Ceiling mount screw
(e) Daylight setting nobe
(f) Time setting nobe
(g) Lamp holder (E27 porcelain)
TROUBLESHOOTING
MALFUNCTION
00999
• Lamp is off
• Daylight adjustment set to
night-time mode during daytime
operate
• Bulb faulty or there is no
connection
• Power switch off or no electricity
• Fuse faulty
• There is no
• Fuse switch off or fuse faulty
electricity on the
device
• Connection faulty.
• Continuously
• Continuously movement in
lamp is on
detection zone
• Cars on the streets are being
detected.
• Wind, rain, snow is moving to the
trees & bushes or open windows in
detection zone.
• Change
• Sudden temperature changes due
perception
to weather(wind, rain, snow) or the
area in device
air expelled from fans.
• Different ambient temperatures.
DETECTION AREA :
Detection area of motion sensors depends on the angle between PIR detector and moving
direction, temperature (power of lamps changes this temperature), mounting style and mounting
place. Temperature is very important for operation for motion sensor like all electronic devices.
Using higher value of loads written on manuals and packages will decrease temprature inside
the device when using Ceiling Armatures with Motion Sensor. As a result detection range will
decrease and may cause defect of electronic components. Environment temperature will also
cause decrease of detection range. Detection range give is determined at +20°C. If the weather
is hot, it will decrease.
Walking targential to the sensor
(normal detection range)
The maximum detection range can be realized when walking tangential to the sensor (figure1)
When walking directly to the sensor detection range will be low. Because you will not be able
to cut vertical areas. Detection range of Motion Sensors is 9 meters as diameter, 4,5 meters
as radius.
NOTE: When the product s used n narrow spaces (such as corr dors), detect on range may decrease.
GUARANTY
We will remedy defects caused by material flaws or manufacturing faults. The warranty will be
met by repair or replacement at our own discretion. The warranty shall not cover damage to
wear parts, damage or defects caused by improper treatment or maintenance. Further
consequential damage to other object is excluded.
Claims under the warranty will only be accepted if the unit is sent fully assembled and well
packed complete with a brief description of the fault, a receipt or invoice (date of purchase and
dealer's stamp) to the appropriate Service Center.
Regulation Directive 2002/95/EC
As shown in figure, firstly open the string by
turning counter clockwise and take off the
glass. Mount the ceiling from places which
(L) = Line conductor
shown in figure (c) and figure (d). And first
(N) = Neutral conductor
will connect ground connection, than connect
connector as shown in electrical connection
= GND conductor
part. Then lay the glass its place and fasten
Lamps must be connecte
up the glass byconstricting the string.
before power is turned-ON.
360°
4,5 m.
4,5 m.
9 m.
(c)
(d)
(g)
SOLUTION
CAUSE
• Control daylight setting and
re-adjust
• Fit the bulb into the lamp holder,
if it still does not operate, change
the bulb.
• Check the electricity and power on.
• Change the fuse.
• Check the fuse if necessary use
a new fuse.
• Check the connection cables.
• Check the detection zone.
• Avert it is being detection.
• Change detection zone, change
site of installation.
• Change site of installation or
keep the reasons away.
• Change site of installation.
Figure 1
Walking directly to the sensor
(lower detection range)
60598-2-1
Complies with ROHS
(e)(f)
210223
