Table of Contents
What's in the box?.......................................................01
Product Overview.............................................................02
Device Installation............................................................03
Specifications....................................................................04
Momento Dashcam App
Main Page..........................................................................05
Connection........................................................................ 06
Angle Adjustment.............................................................07
Streaming...........................................................................08
Download...........................................................................09
Playback.............................................................................10
Export.................................................................................11
Settings..............................................................................12
Video Exposure.................................................................13
Voice Control.....................................................................14
Buttons...............................................................................15
Compliance Statements...................................................16
1
Advertisement
Table of Contents
Related Manuals for Momento M8
Summary of Contents for Momento M8
-
Page 1: Table Of Contents
English Table of Contents What’s in the box?............01 Product Overview…………………………………………………….02 Device Installation……………………………………………………03 Specifications…………………………………………………………..04 Momento Dashcam App Main Page……………………………………………………………..05 Connection……………………………………………………………… 06 Angle Adjustment…………………………………………………….07 Streaming…………………………………………………………………08 Download…………………………………………………………………09 Playback…………………………………………………………………..10 Export………………………………………………………………………11 Settings……………………………………………………………………12 Video Exposure………………………………………………………..13 Voice Control……………………………………………………………14 Buttons…………………………………………………………………….15 Compliance Statements……………………………………………16... -
Page 2: Start Guide
Please do not be distracted using this device while driving • MOMENTO is not responsible for any data loss and will not compensate for any loss. Also, based on the user’s setting and environment, please be informed that the device may NOT record videos of all accidents. -

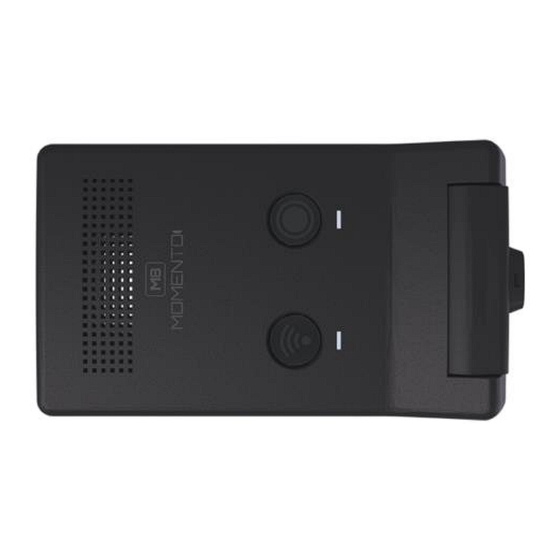

Page 3: Product Overview
Product Overview Mark Description ① Wi-Fi Wi-Fi ON/OFF Button ② LED Wi-Fi / REC LED (White) ③ REC Manual Recording Button ④ Camera Lens Front camera for video recording ⑤ MIC Microphone for voice and audio recording ⑥ Micro SD Memory card slot ⑦... -
Page 4: Device Installation
Device Installation Caution - Make sure to install the device in a safe area and that the engine is OFF. - Make sure the installation area is clean. - Disconnect the power cable if you are not using the device for a long period of time. Caution when inserting Micro SD card - An SD card is pre-installed for your convenience. -
Page 5: Specifications
Specifications Item Description Micro SD Car d Capacity Up to 256GB Front 129°(D) x 112°(H) x 96°(V) Cam era FO V Rear 146°(D) 116°(H) 62°(V) ECO Mode O peration 24GHz Radar Sensor Motion detection GNSS Support GPS, BEIDOU Built-In S upport Input Power Source DC 12V / 24V Operation Temperature... -
Page 6: Main Page
Using Dashcam’s Mobile Application 1. Main Page M8 supports dual band Wi-Fi 2.4 & 5GHz (Default) which can be used to establish connection between the camera and the app. Description ① Switch Dashcam Model (M8 or M7 Wi-Fi) ② Select dashcam’s model (M7 Wi-Fi or M8) ③... -
Page 7: Connect Manually
Wi-Fi button to activate the Wi-Fi. 2.1 Connect Manually Manual Connect is required for the initial setup. Find the M8’s Wi -Fi network on your phone’s Wi-Fi network list and connect by using the password “12345678”, then return to the App. - Page 8 2.2 Easy Connect After you’ve done the manual setup successfully, you can connect dashcam through the “Easy Connect" menu moving forward. If you want to connect new dashcam, use the “Connect Manually” menu. Please ensure the app’s location sharing setting is set to “Always.” This is necessary to suppor t video download data transfer when the app is running in the background.
-
Page 9: Angle Adjustment
2.3 Angle Adjustment After connecting to the dashcam, you can adjust the front camera's viewing angle by sliding it up or down. Note that exported videos will include the full angle, even beyond your selected view. You can change the angle later in the settings. -
Page 10: Streaming
The live page offers several video control options, but remember, the dashcam won’t record while live view is Description Select video channel (Front, Rear, Interior) ① M8 Max supports only 2 channels Video control options 1. Video Ratio (4:3, 16:9) 2. Zoom In ②... -
Page 11: Download
Description ① Video thumbnail (sorted by date & time) Select video channel (Front, Rear, Cam 1) ② M8 Max supports only 2 channels Video control options 1. Video Ratio (4:3, 16:9) 2. Download 3. Zoom In ③ 4. Zoom Out 5. - Page 12 4. Gallery (Download) The gallery page supports thumbnails to help you find recorded videos. You can select multiple video files you want to download. The download feature can also work in background mode on your mobile. Description ① Edit menu ②...
-
Page 13: Playback
5. Saved (Playback) You can play back saved video files even in offline mode, meaning when the dashcam is disconnected. The playback feature also supports audio. Additionally, you can export or delete saved files as needed. Description ① Video thumbnail (sorted by date & time) ②... -
Page 14: Export
5. Saved (Export) You can export saved video files to your phone’s gallery. Once the files are exported, you can easily share your videos as supported by your mobile device. Description ① Export saved video file ② Video channel selection ③... -
Page 15: Settings
6. Settings (Main) You can change dashcam’s settings through the mobile application. Description ① Dashcam Settings ② Sensitivity Settings ③ Sound Settings ④ Memory Settings ⑤ System Settings ⑥ Mobile App’s Version ⑦ Register Warranty ⑧ Firmware Version ⑨ Dashcam’s Model Number Firmware Update ⑩... - Page 16 6. Settings (Dashcam) You can change dashcam’s parking mode, low power voltage level, travelapse on/off, angle adjustment, and factory reset. Description Parking Mode ① 1. ECO On (Radar) 2. ECO Off (Motion) 3. Timelapse 4. Off ② Low Voltage Cut Level (11V ~ 24.3V) ③...
- Page 17 6. Settings (Sensitivity & Sound) You can change dashcam’s sensitivity and sound. Description ① Driving Impact Sensitivity (0 ~ 5) ② Motion Sensitivity (0 ~ 3) ③ Radar Sensitivity (1 ~ 3) ④ Audio Recording On/Off ⑤ Speaker Volume (0 ~ 5)
- Page 18 6. Settings (Memory) You can change dashcam’s memory partitions. Description Parking Mode Capacity Selection 1. Parking 0% ① 2. Parking 25% 3. Parking 50% ② SD Card Format...
-
Page 19: Settings (System)
6. Settings (System) You can change dashcam’s system. Description ① Select English or French ② Security LED On/Off ③ Wi-Fi Password ④ Speed Unit (mp/h or km/h) ⑤ Wi-Fi Band (2.4GHz or 5GHz) ⑥ Wi-Fi Auto On/Off ⑦ Privacy Mode On/Off ⑧... -
Page 20: Voice Control
Please note, changes require a dashcam restart and won’t affect previously recorded videos. 8. Voice Control You can conveniently control essential functions of the M8 using Voice Control. Just say "Hi Momento" or "Hi Dashcam," wait for the chime, and then state your command. Function Audio Alert... -
Page 21: Compliance Statements
English Compliance Statements Canadian Compliance Statements: This devic e complies with Industry Canada’s lic ence-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interfere nce, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003.
