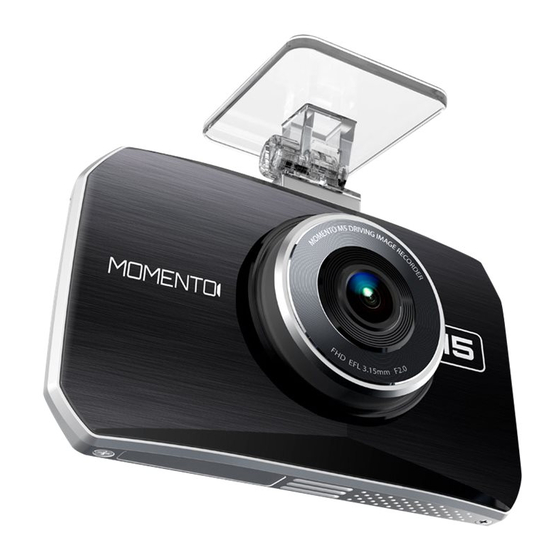

Momento MD-5200 User Manual

For car full hd driving image recorder
Hide thumbs Also See for MD-5200:
Table of Contents

Advertisement

Quick Links

MD-5200 USER'S MANUAL
Full HD Driving Image Recorder
www.momentocam.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD-5200 and is the answer not in the manual?

Questions and answers

Related Manuals for Momento MD-5200

Summary of Contents for Momento MD-5200

  • Page 1 MD-5200 USER’S MANUAL Full HD Driving Image Recorder www.momentocam.com...
  • Page 2 ■ The contents in this manual can be changed or modified due to technical errors or improvements therefore we cannot guarantee the manual’s precise information. ■ MOMENTO has the right to change or modify the product and manual contents at anytime without prior notice for improvements or customization.

  • Page 3: Table Of Contents

    Table of Contents 1. Warning and Caution .....5 2. Product Features .....9 3. Product Overview ....12 4. Device Installation ....17 5. Basic Operation ....23 - Using the Touch Screen - Device Control - LED Indicator Light - File List Management - Firmware Update 6.

  • Page 4: Warning And Caution

    Warning and Caution...
  • Page 5 Warning and Caution These cautions are provided for user’s safety and prevent damages in the device. Please take the time to read the manual for proper product usage. Warning Information to prevent factors that can cause physical damage Caution Information to prevent service errors or system damage Warning ■...
  • Page 6 Warning and Caution Caution ■ Always keep the camera lens cleaned. ■ Make sure the device is firmly mounted during installation as it has a tendency to shift when driving over speed bumps or unpaved roads. ■ If the device breaks, call or bring it to a service center. Do not touch the device as your hands might get hurt from the broken parts.
  • Page 7 Warning and Caution Caution ■ Do not use a pin or a nail to push the LCD. ■ Do not use excessive force when using the control buttons. ■ Do not use chemicals to clean the device. ■ Keep the product away from children and pets.

  • Page 8: Product Features

    Product Features...
  • Page 9 Product Features ■ Sony Exmor R Sensor Provides clean and clear video quality ■ Full HD Resolution FHD (1920x1080) resolution for both Front / Rear cameras ■ 3.5” TFT LCD Provides high clarity and extreme brightness ■ Format Free Technology Provides automatic memory format and maximizes the stability and minimizes file errors of Micro SD Card Automaticlly overwrites files when storage capacity is needed ■...
  • Page 10 Product Features ■ Operation Temperature Sensor Automatically senses over heating and high temperature of the devices and shuts off the power for protection ■ PC Viewer PC Viewer for Windows is used to watch recorded videos. ■ Location and Speed Limit Sensor Provides information about the vehicle’s location and speed Compatible with Google Map and allows to check travel routes ■...

  • Page 11: Product Overview

    Product Overview...
  • Page 12 Product Overview ■ Package Components 32GB Quick Start Hardwire Cable Main Unit Windshield Mount Micro SD Card Guide Rear Camera Rear Camera GPS Module Cable ※ Check for any missing components. ※ The product and manual contents can be changed or modified at anytime without prior notice for improvements or customization.
  • Page 13 Product Overview ■ Main Unit (Front Camera)
  • Page 14 Product Overview ① R-CAM Rear camera port ② GPS Port GPS module port ③ MIC Microphone for voice and audio recording ④ DC-IN Power cable port ⑤ Mount Installation mount ⑥ RESET Reset button ⑦ Camera Lens Front camera for video recording ⑧...
  • Page 15 Product Overview ■ Rear Camera ⑤ ② ③ ① ④ ① Mount Installation mount Rear camera for video recording ② Camera Lens ③ LED Indicates vehicle is equipped with dash cam Mini USB port to connect the main (front camera) unit ④...

  • Page 16: Device Installation

    Device Installation...
  • Page 17 Device Installation < CAUTION > ■ It is dangerous to operate this device while driving. ■ Please check if the Micro SD card is inserted correctly before connecting to power. ■ Make sure the installation area is clean. ■ Disconnect the power cable if you are not using the device for a long period of time. ■...
  • Page 18 Device Installation 1) Main Unit Installation Insert / Remove Micro SD Card Insert Remove Do not apply excessive force to the Micro SD card or insert it in the wrong direction. ▶ Refer to the above image and check the direction before inserting the Micro SD card into the slot. ▶...
  • Page 19 Device Installation 1) Main Unit Installation Rear Camera Cable Hardwire Cable Module 1. Select and clean the area where the product will be installed. 2. Connect the main device and the mount. 3. Remove the double sided tape and attach the device. 4.
  • Page 20 Device Installation 2) Rear Camera Installatio 1. Select and clean the area where the product will be installed. 2. Remove the double sided tape and attach the device. 3. Connect the rear camera and the cable. ※ Make sure the installation area doesn’t interfere with the window’s infrared signals. ※...
  • Page 21 Device Installation 3) External GPS Module Installation 1. Connect the external GPS module to the right connector in the device. 2. Organize the cable lines across the car’s ceiling. 3. Remove the double sided tape and attach the module. ※ Before installation, make sure the engine is turned o . ※...

  • Page 22: Basic Operation

    Basic Operation...

  • Page 23: Using The Touch Screen

    1. Using the Touch Screen 1) Live View 2016/11/27 Current Date and Time MIC ON ① Main Menu → System Settings → Time Settings * Automatic setting if GPS is connected GPS Status ② GPS ON / OFF Voice & Audio Record ③...

  • Page 24: Using The Touch Screen

    1. Using the Touch Screen 2) Screen Saver Recording Status ① REC: continuous record EVENT: incident / manual record Voice & Audio Recording Status ② MIC ON: recording / MIC OFF: not recording GPS Signal Status ③ GPS ON / OFF 2016.11.27 SUN Current Time and Date ④...

  • Page 25: Using The Touch Screen

    1. Using the Touch Screen 3) Main Screen Settings ① Main menu settings → System Settings / Dashcam Settings / F/W version ADAS ② ADAS menu settings → FVMA File List ③ List of recorded files LCD Time Out ④ LCD screen off...
  • Page 26 1. Using the Touch Screen 4) System Settings Language ① Language setting → English / Francais Time Settings ② System’s time setting * Automatic setting if GPS is connected Touch Calibration ③ Resetting touch screen SD Card Format ④ Micro SD Card Format * Saved files will be deleted.

  • Page 27: Using The Touch Screen

    1. Using the Touch Screen 5) Dashcam Settings Video Quality Able to select the recording video quality ① → Low / Normal / High ※ If the Video Quality is changed, the SD card will be formatted. Impact This feature senses incidents while driving and records them ②...

  • Page 28: Using The Touch Screen

    1. Using the Touch Screen 6-1) File List Continuous ① Continuous record Motion Detection ② Motion detection record during parking Incident ③ Incident record during driving, Incident record during parking Manual ④ Manual record ▶ Main Menu → File List...

  • Page 29: Using The Touch Screen

    1. Using the Touch Screen 6-2) File List Front / Rear Camera File List REC2_20161125_150543 ① Sorting the file list according to front / rear recordings File List : Up REC2_26161125_150643 ② Moving file list up File List : Down ③...

  • Page 30: Using The Touch Screen

    1. Using the Touch Screen 6-3) Main Menu - File List REC2_20161125_150543.avi HOME ① Go back to Main Menu PREVIOUS ② Play previous file PLAY ③ Play file STOP ④ Pause Next ⑤ Play next file BACK ⑥ Back to previous screen...

  • Page 31: Using The Touch Screen

    1. Using the Touch Screen 7) FVMA(Front Vehicle Move Alert) FVMA (Forward vehicle move alert) If the front vehicle starts to move from a complete stop, ① “GO” message is shown on the screen. → ON / OFF ※ FVMA may not operate correctly if the distance between the front car is more than 9ft (3m).

  • Page 32: Device Control

    2. Device Control Control Function Description Power ON - Main power ON button - Once the device is connected it will automatically turn ON / OFF by vehicle’s ignition. Green LED light means the device will start to record. A voice guide will alert the driver “continuous recording mode”. - The device will be set at continuous recording mode when the power is connected.

  • Page 33: Led Indicator Light

    3. LED Indicator Light Recording Type Rear Green LED Front Blue LED Meaning Driving Continuous Continuous record during driving Driving Incident  Blink every 1 sec Incident record during driving Parking Motion Detection Blink every 1 sec Blink every 0.5 sec Motion Detection /Incident ...

  • Page 34: File List Management

    4. File List Management ▶ Recorded files are saved in Micro SD card. ▶ Files are saved in the same sizes due to format free technology. Continuous : 80MB / Parked, Motion, Incident, Manual : 40MB ▶ In order to use the format free technology at best, a folder is not created in the Micro SD card. ▶...

  • Page 35: File List Management

    4. File List Management ▶ Recording Time : Format Free Technology allows the file sizes to be preset. Recording time may vary based on the video quality. (refer below) Front Camera Resolution Type High Continuous 38 sec 51 sec 1min 16sec Incident-Continuous Incident-Parking 19 sec...

  • Page 36: File List Management

    4. File List Management ■ Storage Partition by Parked Storage Priority Directory Percentage SD Card Driving 5.62GB Parking (motion) 5.47GB Parked Storage Priority : 50% Manual 740MB Event 2.22GB Driving 8.43GB Parking (motion) 2.66GB Parked Storage Priority : 25% Manual 740MB Event 2.22GB...

  • Page 37: Firmware Update

    5. Firmware Update ▶ Turn the device off and remove Micro SD card ▶ To format Micro SD card, connect PC and Micro SD card (File System : FAT 32 / Allocation Unit Size : 64KB) ▶ After format is completed, copy the updated file on Micro SD card ▶...

  • Page 38: Pc Viewer

    PC Viewer...
  • Page 39 PC Viewer 1) Viewer Installation Download the setup.exe file at www.momentocam.com ① ② ③ ④ ⑤ ※ System Requirements - Windows XP or higher - Dual Core 2.8GHz or Intel i5 2.0GHz or higher - IE 9.0 or higher - Direct3D 9 graphic...
  • Page 40 PC Viewer 2) Main Screen Overview Front Camera Rear Camera Recording List Coordinates Driving Speed...
  • Page 41 PC Viewer 2) Main Screen Overview ① Settings ② Save As : saving recorded files ③ Screen Capture : allows to capture screen during playback ④ Front Camera : playback front camera’s files ⑤ Front - LEFT/RIGHT | UP/DOWN | FULL SCREEN | CHANNEL CHANGE ⑥...
  • Page 42 PC Viewer 3-1) Settings – System Setting Language ① English / Francais ② ON/OFF Volume ③ OFF / 1 / 2 / 3 / 4 / 5 LCD Timeout ④ 30sec / 1min / 2min / Clock / Always ON Time Setting ⑤...
  • Page 43 PC Viewer 3-2) Settings – Dashcam Setting Video Quality ① High / Normal / Low Impact Sensitivity ② 0 / 1 / 2 / 3 / 4 / 5 / 6 Front LED ③ OFF / ON Parking Storage Priority ④...

  • Page 44: Others

    Others...

  • Page 45: Product Specifications

    1. Product Spec 1. Product Specifications Item Description Item Description MD-5200 Size / Weight 104 x 65.5 x 30.25mm / 89g Model 4 x 2.6 x 1.2in / 3.14oz Supports external GPS port Capacity Micro SD Card 3.5” TFT LCD...

  • Page 46: Troubleshooting

    Touch Screen is not working Reset the feature in touch calibration menu. How do I view recorded files? Visit www.momentocam.com to download the latest Momento Viewer. How do I update the camera firmware? Visit www.momentocam.com to download the latest Momento Camera Firmware.
  • Page 47 MOMENTO provides a warranty to the original purchaser of a new Product against defects in workmanship and materials for a period of two (2) years. If a product covered by this warranty is determined to be defective within the warranty period, MOMENTO will either replace or repair the product at its sole option and discretion.

  • Page 48: Fcc Statement

    4. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 49 MD-5200 USER’S MANUAL...
