Intec CVC470HFM Quick Installation Manual

Quality First For Performance That Lasts
CVC470HFM
Quick Installation Guide
1
Determine a secure and suitable mounting location for your camera and cut an opening using the cam-
era as a template. Make sure the area you are cutting into is clear and free of electrical wires or other
objects that could be damaged. You should allow for a minimum of 2.25" depth behind the vehicles outer
surface for proper installation. The flush mount enclosure sets the camera to a 45° angle and as such should
be installed on a smooth vertical surface.
2
Secure the camera. The camera can be secured using several methods including silicone, RTV, adhesive
putty, as well as mechanical fasteners such as nuts and bolts or screws.
You may also call us toll free at 800-468-3254 (West) or 800-522-5989 (East) or e-mail support@intecvideo.com with any questions. Rev E 07/2024
Included in the box:

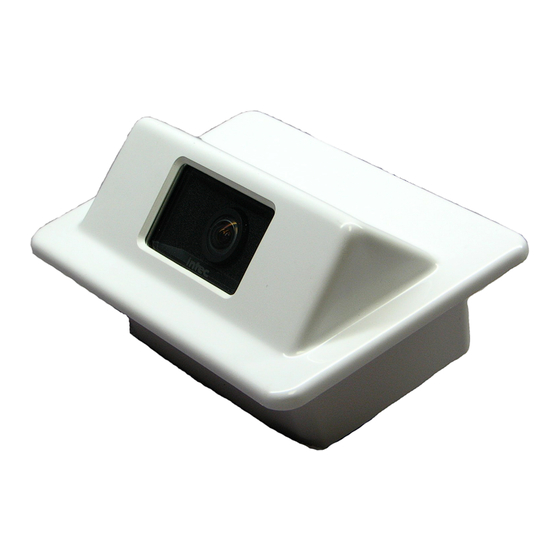

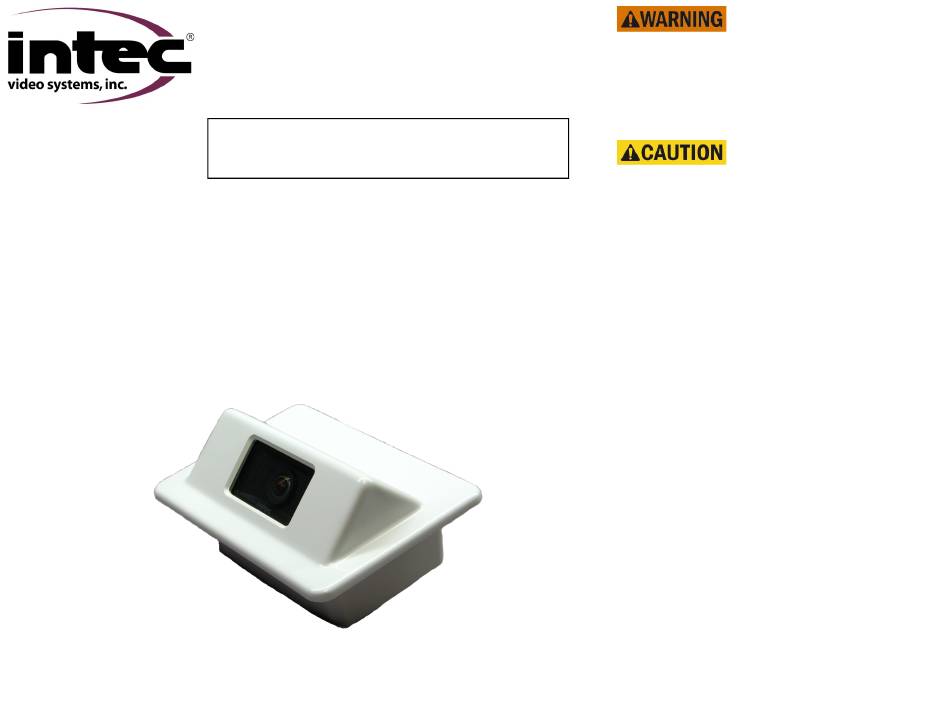

1—CVC470HFM Camera
! Please include this Quick Installation Guide with the other
vehicle documentation provided to the end user.
For more detailed installation instructions, please visit www.intecvideo.com/support.html
Use only INTEC supplied camera brackets. The INTEC camera
bracket provides the necessary required isolation from the
vehicle body. Failure to do so could result in system damage if
shorting occurs.
Be certain that all items are secure. Items that are not secure
or mounted in an unstable manner can come loose and cause
damage or personal injury.
Do NOT install the camera in any area that allows it to extend
out past the vehicle, as this can cause injury if it were to come
in contact with people walking around the vehicle.
Always verify the area being drilled into is clear of all wires and
other items around or underneath so as not to cause damage.
Always confirm proper image orientation before driving or op-
erating your vehicle. The orientation of the image displayed is
critical to safe vehicle operation. An object on the right side of
your vehicle needs to be seen on the right side of the display
screen.
Before you begin driving, be sure the display controls are ad-
justed properly. This will avoid unnecessary distractions while
driving.
