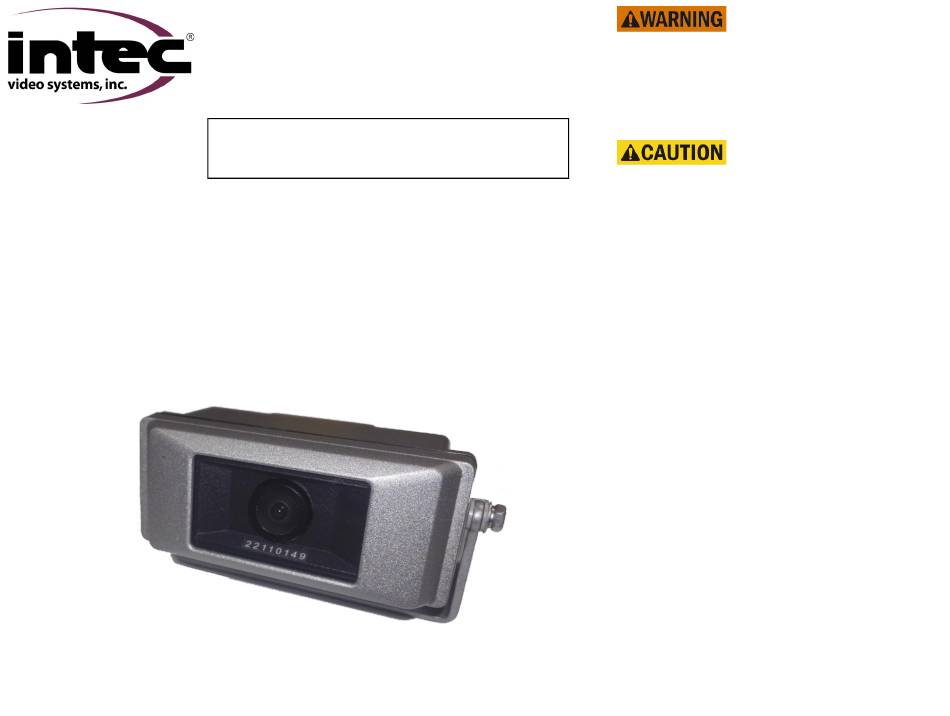

Intec CVC470H Quick Installation Manual

Quality First For Performance That Lasts
CVC470H
Quick Installation Guide
1
Determine a secure and suitable mounting location for your camera. The camera should be installed so
that the area you are trying to view is clearly seen on the display and a critical reference (leading edge)
of the vehicle is also visible. For example: Rear mounted cameras should be installed to give you the maxi-
mum viewing area behind the vehicle while still seeing the rear most part of the vehicle, typically the rear
bumper, or the leading edge at the bottom of the displayed image.
2
Install the camera bracket with the hardware provided. Use the bracket as a template for drilling the
required holes. The recommended mounting bolt torque specification is between 20 and 22 inch
3
Assemble the camera loosely to the bracket.
You may also call us toll free at 800-468-3254 (West) or 800-522-5989 (East) or e-mail support@intecvideo.com with any questions. Rev A 07/2024
Included in the box:

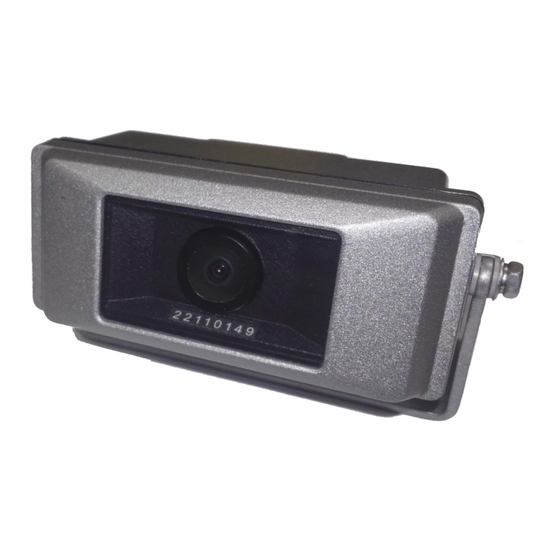

1—CVC470H Camera
1—Mounting Bracket
1—Mounting Bolt Set
! Please include this Quick Installation Guide with the other
vehicle documentation provided to the end user.
For more detailed installation instructions, please visit www.intecvideo.com/support.html
Use only INTEC supplied camera brackets. The INTEC camera
bracket provides the necessary required isolation from the
vehicle body. Failure to do so could result in system damage if
shorting occurs.
Be certain that all items are secure. Items that are not secure
or mounted in an unstable manner can come loose and cause
damage or personal injury.
Do NOT install the camera in any area that allows it to extend
out past the vehicle, as this can cause injury if it were to come
in contact with people walking around the vehicle.
Always verify the area being drilled into is clear of all wires and
other items around or underneath so as not to cause damage.
Always confirm proper image orientation before driving or op-
erating your vehicle. The orientation of the image displayed is
critical to safe vehicle operation. An object on the right side of
your vehicle needs to be seen on the right side of the display
screen.
Before you begin driving, be sure the display controls are ad-
justed properly. This will avoid unnecessary distractions while
driving.
