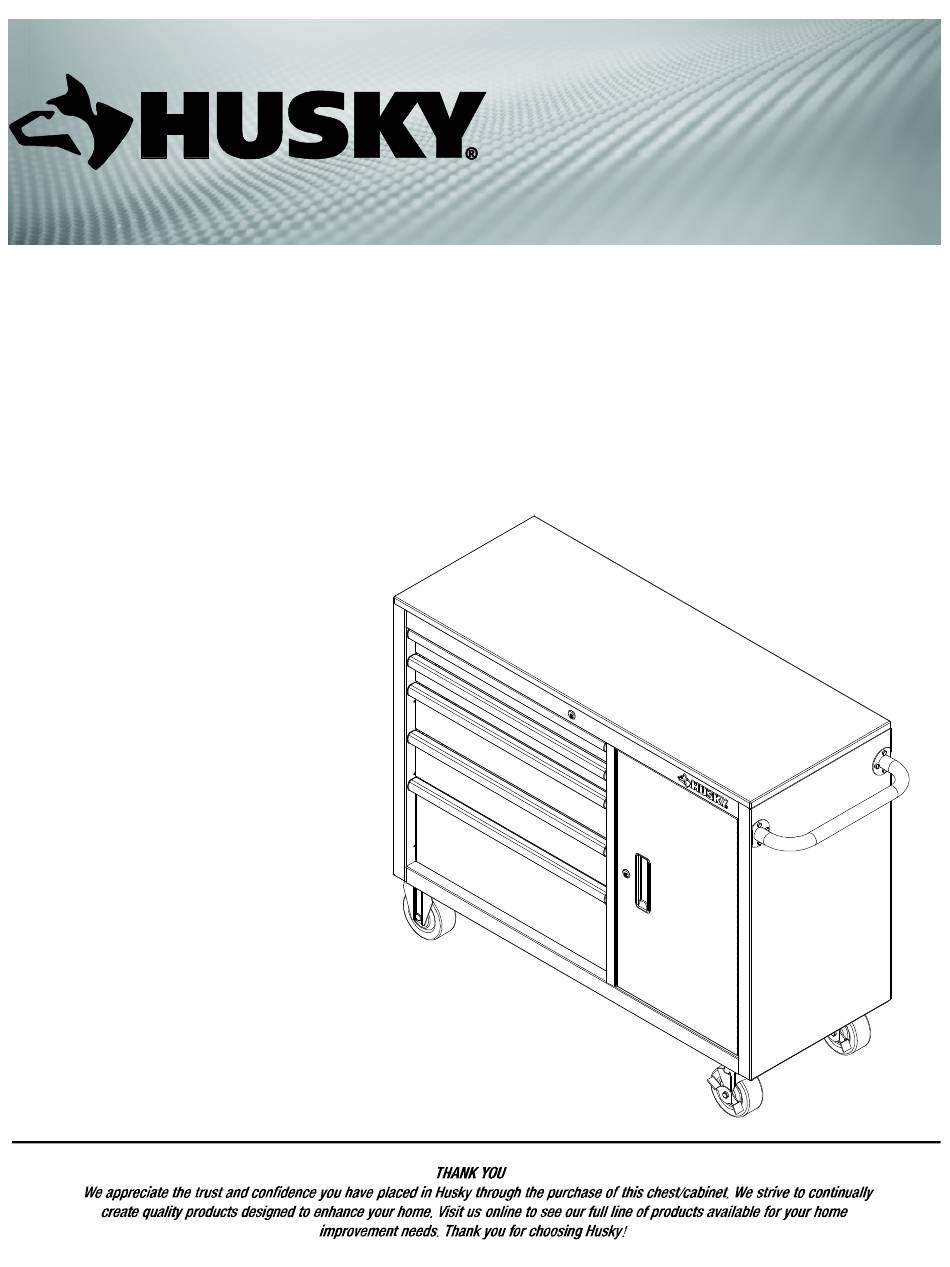

- Page 1 Model #HOTC4605J0AD USE AND CARE GUIDE 46 IN. 5-DRAWER STAINLESS STEEL MOBILE WORKBENCH Questions problems missing parts? Before returning to the store call Husky Customer Service 8 a.m - 6 p.m. EST Monday Friday 1-888-43-HUSKY HUSKYTOOLS COM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents..............2 Assembly..............6 Safety Information..............2 Operation..............7 Warranty..................3 Maintenance............8 Pre-Assembly................4 Care and Cleaning............8 Service Parts............9 Tools Required................4 Hardware Included..............4 Specifications.................4 Package Contents..............5 Safety Information Do not open more than one drawer at a time. DANGER: Do not stand on this product You Do not let children approach the product. -
Page 3: Warranty
Contact the Customer Service Team at 1-888-43-HUSKY or visit www huskytools com. HUSKYTOOLS COM Please contact 1-888-43- HUSKY for further assistance . -
Page 4: Pre-Assembly
Pre assembly TOOLS REQUIRED Safety goggles HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Bolt M6 x 15L Washer M8 Bolt M8 x 20L 10 mm/13 mm wrench SPECIFICATIONS Maximum capacity (drawer 1-4) 75 lbs Maximum capacity (bottom drawer) 100 lbs Maximum capacity (shelf) 120 lbs... -
Page 5: Package Contents
Part Description Quantity Wood top Side handle Rolling cabinet Shelf Shelf Clips Swivel caster with brake Door pull Drawer slide 75 lbs (pair) Rigid caster Drawer Key (set) Lock Husky badge HUSKYTOOLS COM Please contact 1-888-43-HUSKY for further assistance . -
Page 6: Assembly
Assembly Attaching the side handle Installing the casters □ Attach the side handle (B) to the rolling cabinet (C) CAUTION: Do not over tighten the bolts using six bolts (AA) . □ Tighten all bolts with the 10 mm wrench (DD). □... -
Page 7: Operation
Slightly insert one side and repeat for the other side. □ Slowly push the drawer until it is fully closed to engage the slide . □ Open the drawer and close it to verify proper operation . HUSKYTOOLS COM Please contact 1-888-43-HUSKY for further assistance . -
Page 8: Maintenance
Maintenance Maintaining the casters Maintaining the drawers □ Periodically clean the drawer trim and □ Grease the casters annually using high quality inside the drawers with a mild detergent and water . bearing grease . □ Remove grease and oil with a standard , nonflammable cleaning fluid . -
Page 9: Service Parts
Service Parts Part Description Quantity Wood top Side handle Shelf Shelf clips Swivel caster with brake Door pull Drawer slide 75 lbs (pair) Rigid caster Key (set) Lock Husky badge HUSKYTOOLS COM Please contact 1-888-43-HUSKY for further assistance . - Page 10 Questions, problems, missing parts? Before returning to the store, call Husky Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1 -888-4 3-HU S KY HUSKYT OOLS.COM Retain this manual for future use.
