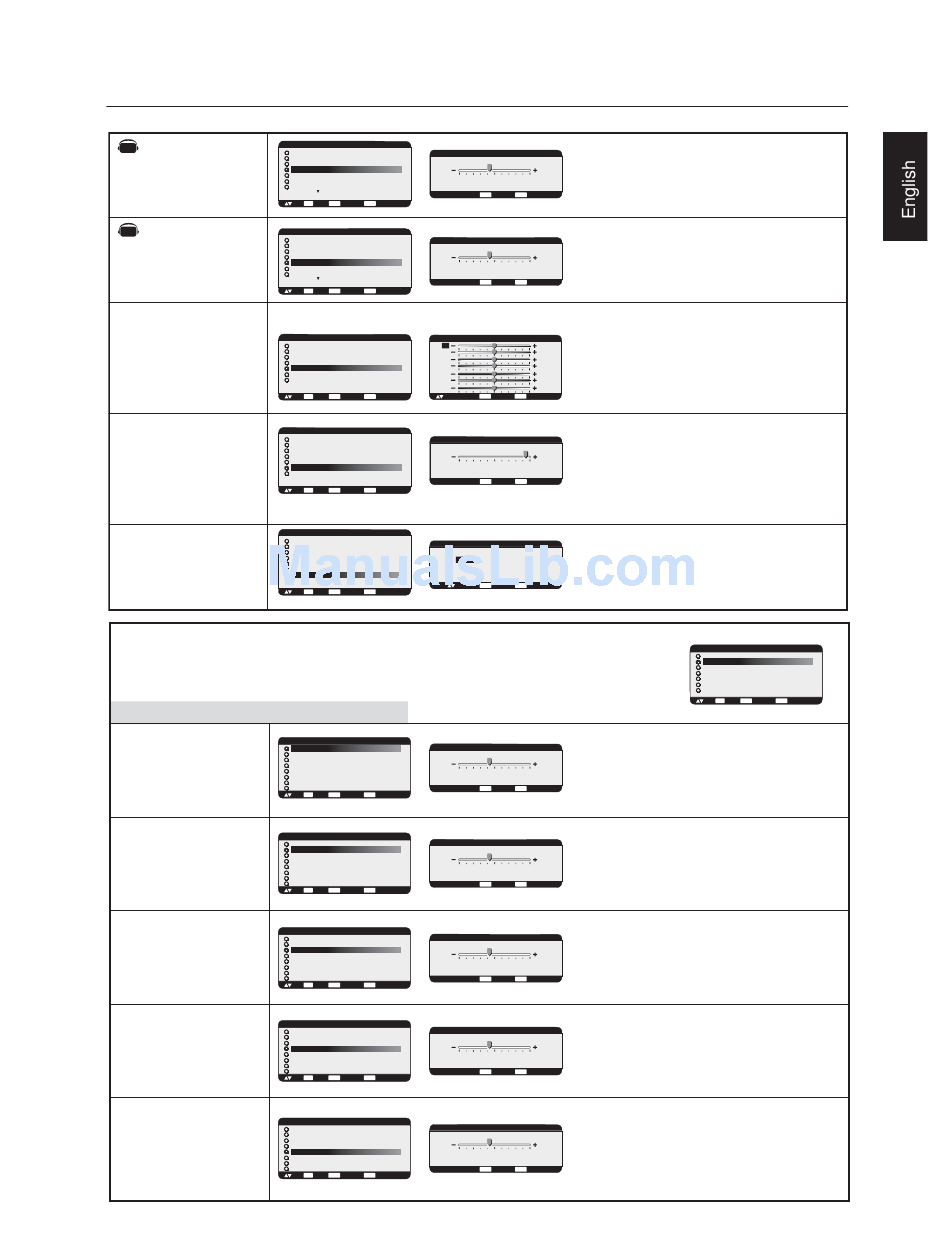

OSM Controls

AV
TINT
*:INPUT DVD/HD,VIDEO
only
AV
COLOR
*:INPUT DVD/HD,VIDEO
only

COLOR CONTROL

*:INPUT RGB1,2,3 only
COLOR
TEMPERATURE

PICTURE RESET

Main-Menu

SCREEN

Sub-Menu
H POSITION
V POSITION
CLOCK
*:INPUT RGB2/3 only

CLOCK PHASE

*:INPUT RGB2/3 only
H RESOLUTION
*:INPUT RGB1/2/3 only
-Screen
BRIGHTNESS
TINT
CONTRAST
SHARPNESS
TINT
COLOR
BLACK LEVEL
NOISE REDUCTION
+ -:ADJ
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
COLOR
BLACK LEVEL
NOISE REDUCTION
+ -:ADJ
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
COLOR CONTROL
BRIGHTNESS R
CONTRAST
Y
SHARPNESS
G
BLACK LEVEL
C
COLOR CONTROL
COLOR TEMPERATURE
B
PICTURE RESET
M
S
:SEL + -:ADJ
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
BRIGHTNESS COLOR TEMPERATURE
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
+ -:ADJ
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
BRIGHTNESS
PICTURE RESET
CONTRAST
SHARPNESS
BLACK LEVEL
NO
COLOR CONTROL
COLOR TEMPERATURE
YES
PICTURE RESET
:SEL
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
SCREEN
H POSITION
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
+ -:ADJ
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
SCREEN
V POSITION
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET + -:ADJ
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
SCREEN
CLOCK
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
+ -:ADJ
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
SCREEN
CLOCK PHASE
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
+ -:ADJ
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
SCREEN
H RESOLUTION
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET + -:ADJ
:SEL SET :NEXT :RETURN :EXIT MENU
EXIT MENU
English-21
Adjusts the tint of the screen.
32
Press + button the flesh tone color becomes greenish.
Press - button the flesh tone color becomes purplish.
EXIT :RETURN MENU :EXIT MENU
Adjusts the color depth of the screen.
32 Press + button to increase color depth.
Press - button to decrease color depth.
EXIT :RETURN MENU :EXIT MENU
R, Y, G, C, B, M, S: Increases or decreases Red, Yellow,
Green, Cyan, Blue, Magenta and Saturation depending upon
which is selected. The change in color will appear on screen
0
0
and the direction (increase or decrease) will be shown by the
0
0
color bars.
0
0
NOTE: sRGB picture mode is standard and cannot be
0
:RETURN :EXIT MENU changed.
EXIT MENU
Adjusts the color temperature of entire screen.
Choosing a lower color temperature will make the
9600K
screen reddish and a higher color temperature make
the screen bluish.
:RETURN :EXIT MENU
EXIT MENU
NOTE: sRGB picture mode is standard and cannot be
changed.
Selecting Picture Reset allows you to reset all OSM
settings within the PICTURE menu.
Select "YES" and press "SET" button to restore the
factory settings.
Press "EXIT" button to cancel and Press "EXIT" again to
EXIT :RETURN MENU :EXIT MENU
return the previous menu.
Controls Horizontal Image position within the display
area of the LCD.
700
Press + button to move screen to right.
Press - button to move screen to left.
EXIT :RETURN MENU :EXIT MENU
Controls Vertical Image position within the display
area of the LCD.
10
Press + button to move screen to UP.
Press - button to move screen to DOWN.
EXIT :RETURN MENU :EXIT MENU
Press + button to expand the width of the image on the
screen to the right.
1782
Press - button to narrow the width of the image on the
screen to the left.
EXIT :RETURN MENU :EXIT MENU
Adjusts the visual snow noise on the image.
18
EXIT :RETURN MENU :EXIT MENU
Adjusts the horizontal size by increasing or decreasing
the setting.
Press + button to expand the width of the image on the
1360
screen.
Press - button to narrow the width of the image on the
EXIT :RETURN MENU :EXIT MENU
screen.
