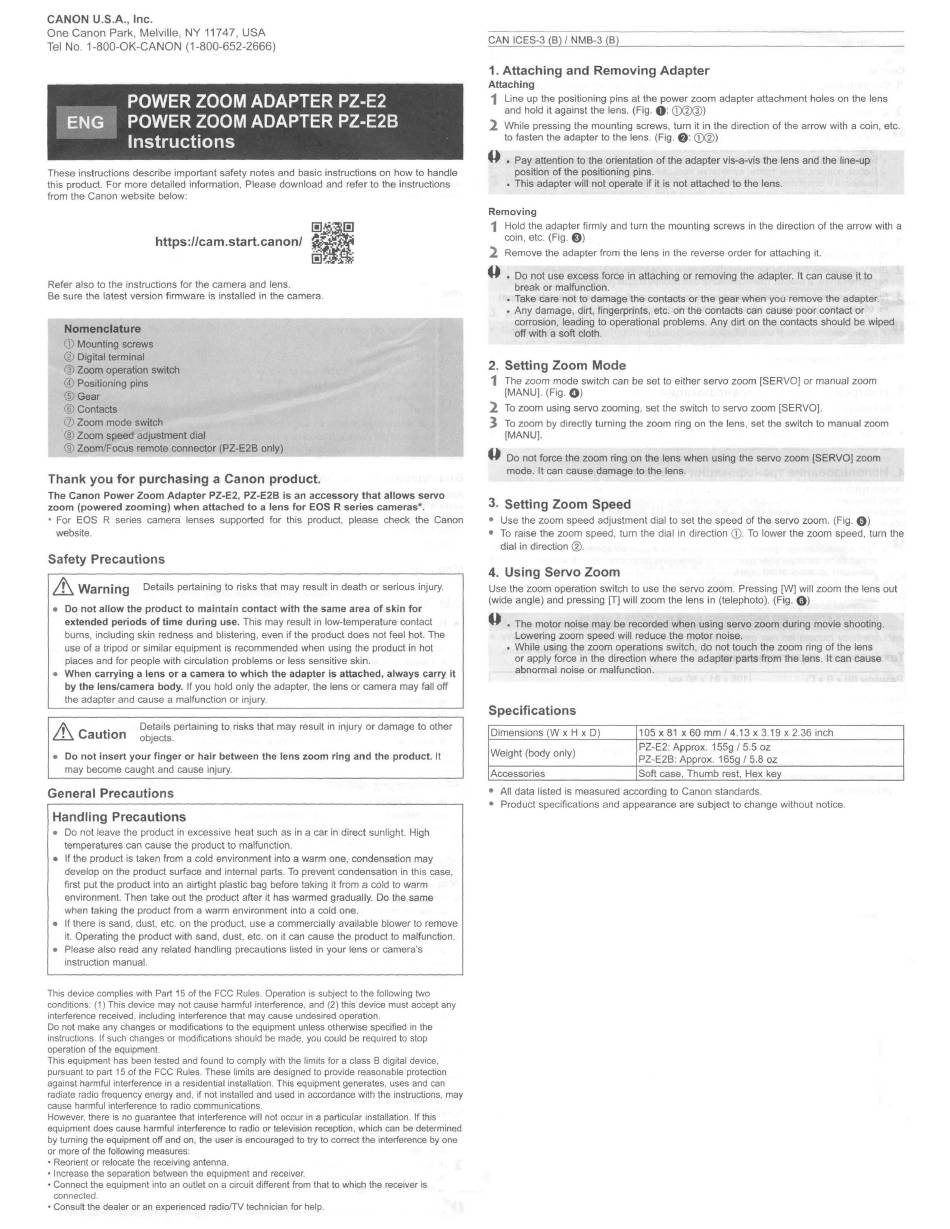

POWER ZOOM ADAPTER PZ-E2
ENG
POWER ZOOM ADAPTER PZ-E28
Instructions
These
instructions
describe
important
safety
notes
and basic
instructions
on
how to handle
this
product. For
more detailed
information,
Please download and
refer to the instructions
from
the Canon website below:
m
-
I!]
https://cam.start.canon/ ~
I!]
•
Refer
also to the instructions for
the
camera and
lens.
Be
sure
the latest
version
firmware is
installed in the camera
Nomenclature
CD
Mounting screws
®
Digital terminal
@
Zoom operation switch
©
Positioning pins
®Gear
®
Contacts
(j)
Zoom mode switch
®
Zoom speed adjustment dial
®
Zoom/Focus remote connector (PZ-E2B only)
Thank you for purchasing a Canon product.
The Canon Power Zoom Adapter PZ-E2, PZ-E2B is an accessory that allows servo
zoom (powered zooming) when attached to a lens for EOS R series
cameras*.
*
For EOS
R series camera
lenses
supported for this
product,
please check
the
Canon
website.
Safety Precautions
~
Warning
Details
pertaining
to risks that may
result
in death
or serious
injury.
•
Do not allow the product to maintain contact with the same area of skin for
extended periods of time during use.
This may result in
low-temperature
contact
burns
,
including skin
redness
and blistering,
even if the product does not feel hot. The
use
of a tripod or similar equipment
is recommended
when
using the product in hot
places and for people with circulation
problems
or less sensitive skin.
•
When carrying a lens or a camera to which the adapter is attached, always carry it
by the lens/camera body. If
you
hold
only
the
adapter,
the lens
or camera
may fall
off
the adapter and cause a malfunction or
injury.
~
Caution
Details
pertaining
to risks that may result
in injury or damage
to
other
objects
.
•
Do not insert your finger or hair between the lens zoom ring and the product. It
may become caught and cause injury.
General Precautions
Handling Precautions
•
Do not leave the product in excessive heat such as
in
a car
in direct
sunlight.
High
temperatures can cause the product
to
malfunction.
•
If the
product is taken
from
a cold environment
into
a warm
one,
condensation may
develop on the product surface and internal parts.
To
prevent condensation in this case
,
first put the product
into
an airtight plastic bag before taking it from a cold to warm
environment.
Then
take out
the
product after
it has warmed
gradually.
Do the same
when
taking
the product
from
a warm environment
into
a cold one.
•
If
there is sand,
dust,
etc. on
the
product, use a commercially available
blower to
remove
it. Operating the product with sand, dust,
etc.
on
it
can cause the product
to malfunction
.
•
Please also
read
any
related handling
precautions
listed
in your
lens
or camera's
instruction manual.
This device complies with Part
15
of
the
FCC Rules. Operation is subject to the following two
conditions:
(1)
This device
may
not cause
harmful
interference,
and
(2)
this device must accept any
interference
received
,
including
interference that may
cause undesired operation.
Do not
make
any
changes
or
modifications
to
the
equipment
unless
otherwise specified in the
instructions.
If such
changes
or modifications should be
made,
you could be
required
to stop
operation of the equipment.
This equipment has been tested and found to comply with the limits
for
a class B digital device,
pursuant to part 15 of the
FCC Rules. These
limits are designed
to
provide
reasonable
protection
against harmful interference in a residential installation.
This
equipment generates, uses and can
radiate radio frequency energy and
,
if not installed and
used in
accordance with the instructions, may
cause
harmful interference to radio communications.
However,
there
is
no guarantee that interference will
not
occur
in
a particular
installation.
If
this
equipment does cause
harmful interference
to
radio
or television
reception
,
which can
be determined
by
turning the
equipment off and
on,
the user
is encouraged
to
try to correct the interference by one
or more of
the following
measures:
•
Reorient or relocate the receiving antenna.
• Increase
the
separation between
the
equipment and
receiver.
• Connect the equipment
into
an outlet on a circuit different
from
that to which the
receiver
is
connected.
•
Consult
the
dealer or an experienced
radiofTV technician
for
help.
CAN
ICES-3
(Bl/
NMB-3
(Bl
1. Attaching and Removing Adapter
Attaching
1
Line up the
positioning pins
at
the power
zoom adapter attachment
holes
on
the lens
and
hold
it against
the lens.
(Fig.
O:
(IXti@)
2
While
pressing the mounting
screws, turn it
in
the
direction of the
arrow with
a
coin, etc.
to
fasten the adapter to the lens.
(Fig.
f):
(j)Q))
, Pay attention to the orientation of the adapter vis-a-vis the lens and the line-up
position of the positioning pins.
, This adapter will not operate if it is not attached to the lens.
Removing
1
Hold the
adapter firmly and
turn the mounting
screws in
the direction
of
the
arrow with a
coin,
etc.
(Fig.
0)
2
0
Remove
the
adapter
from the lens in the
reverse order for attaching
it.
• Do not use excess force
in
attaching or removing the
adapter.
It
can cause
it to
break
or
malfunction.
• Take care not to damage the
contacts
or the gear when
you
remove the adapter.
, Any damage, dirt, fingerprints,
etc. on
the contacts
can cause poor contact
or
corrosion,
leading to operational problems. Any dirt on the
contacts should
be wiped
off with a
soft
cloth
.
2. Setting Zoom Mode
1
The
zoom
mode
switch can be set
to
either servo zoom
[SERVO]
or manual zoom
[MANU]. (Fig.
0)
2
To
zoom
using
servo zooming
,
set the switch to servo zoom
[SERVO].
3
To
zoom by directly turning
the
zoom
ring
on the
lens,
set
the
switch
to manual
zoom
[MANU]
.
0
Do not force the zoom ring on the lens when using the servo
zoom
[SERVO]
zoom
mode. It can cause damage to the lens.
3. Setting Zoom Speed
•
Use the
zoom speed adjustment dial
to
set the speed of
the
servo zoom. (Fig.
0)
•
To
raise the zoom speed, turn the dial in direction
(D.
To lower
the
zoom speed, turn
the
dial in
direction
®·
4. Using Servo Zoom
Use the
zoom operation switch to use
the
servo zoom.
Pressing
[WJ will zoom the
lens
out
(wide angle} and
pressing [TJ will
zoom
the lens in
(telephoto). (Fig.
0)
0 .
The motor noise may be recorded when using servo zoom during movie
shooting.
Lowering
zoom
speed will reduce the motor noise
.
• While using the zoom operations
switch,
do not touch the
zoom ring of
the lens
or
apply
force
in
the direction where
the adapter
parts from the lens. It
can
cause
abnormal noise or malfunction.
Specifications
Dimensions
(W x
H
x D)
105
x 81 x
60
mm/
4.13
x 3.19
x
2.36 inch
Weight (body only)
PZ-E2: Approx.
155g
/
5.5 oz
PZ-E2 B:
Approx
.
165g
/
5.8 oz
Accessories
Soft case, Thumb
rest,
Hex key
• All data listed is measured according
to
Canon standards
•
Product
specifications and appearance are subject
to
change without notice.
