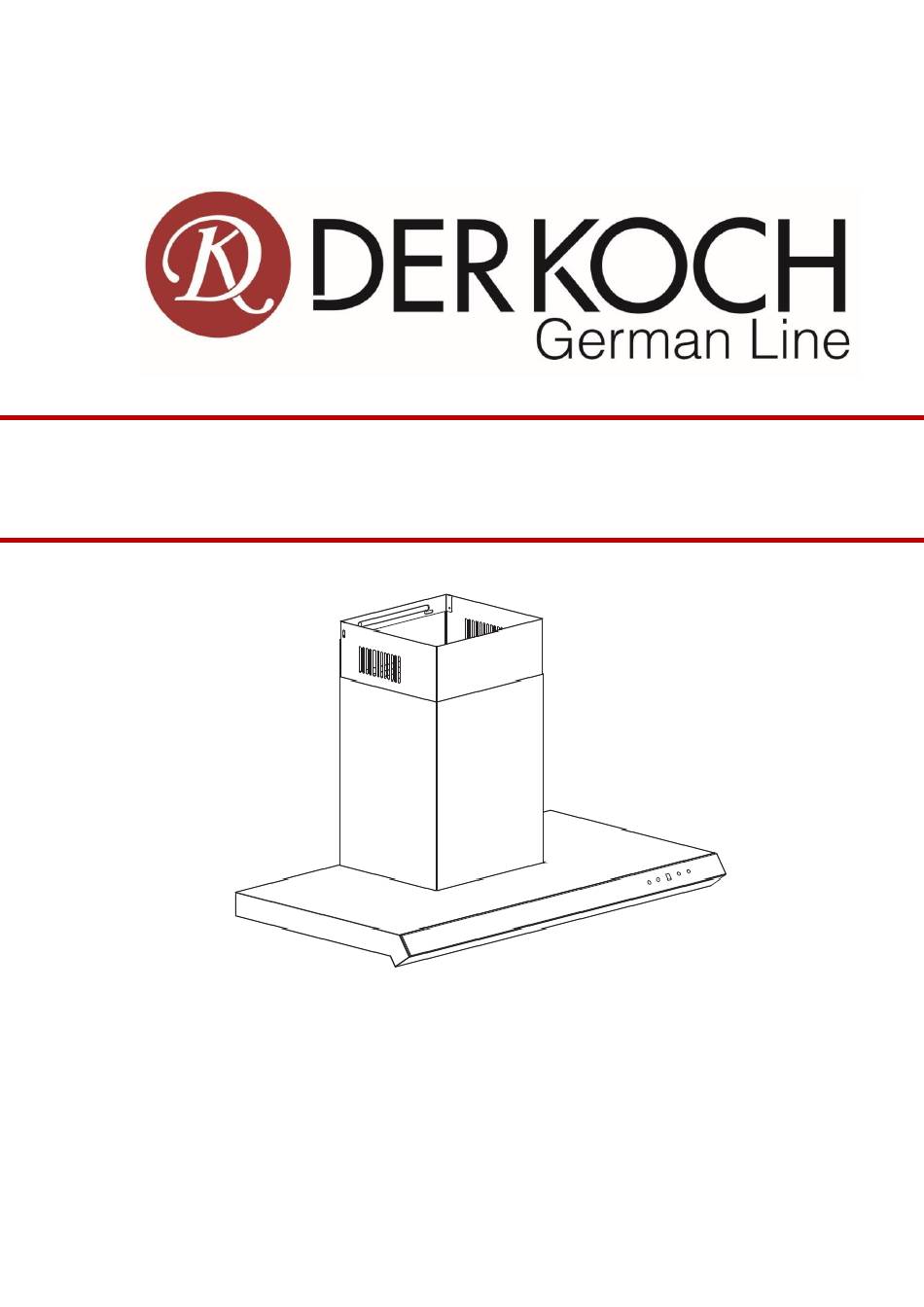

- Page 1 Installation and use manual for Der Koch range hoods Kassel Nuremberg Nuremberg Island...
-
Page 2: Table Of Contents
Der Koch Range hoods Table of contents I. Notice ..................3 II. Feature .................. 3 III. Safety Warning ..............3 IV. Installation ................5 Kassel Installation ..............6 Nuremberg Installation ............9 Nuremberg Island Installation ..........11 V. Operation ................13 VI. -
Page 3: Notice
Der Koch Range hoods I. Notice 1. Thank you for choosing Der Koch range hoods. Please read the instruction manual carefully before use. 2. The installation work must be undertaken by a qualified and competent worker. 3. The manufacturer disclaims all liability for any damage or injury caused because of not following instructions for installation contained in the following text. - Page 4 Der Koch Range hoods • Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. There is a fire risk if cleaning is not carried out in accordance with the instructions. • Forbid the direct baking from the gas cooker. If using this range hood above a gas hob or cooker, please remove the cloth carbon filter and use just the aluminium filters.
-
Page 5: Installation
Der Koch Range hoods IV. Installation • Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust. • It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube. •... -
Page 6: Kassel Installation
Der Koch Range hoods Kassel Installation Using a spirit level, mark a vertical line on the wall (Central to the cook top installed below) to indicate the centre location of the hood and a horizontal line where the hood base will be positioned. Drill holes as per below drawing and insert dry wall anchor plugs into holes. - Page 7 Der Koch Range hoods Fasten Hood mount bracket by 4pcs ST4x30mm screws. Hang on the main body of range hood. Fit the outlet and flexible exhaust duct onto outlet. www.derkochline.com...
- Page 8 Der Koch Range hoods Slide out Upper Decorative Chimney to desired height. Fasten Upper chimney retaining bracket by 4 pcs ST4x30mm screws, then fasten 2 pcs ST4x8mm screws at side to fix Upper Decorative Chimney. Remove all blue protective film on chimney and cooker hood, the installation is now finished.
-
Page 9: Nuremberg Installation
Der Koch Range hoods Nuremberg Installation 1.Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws & screw plugs provided. 2. Offer up the cooker hood and hang onto the wall bracket hook. 3.Slide out Upper Decorative Chimney to desired height. - Page 10 Der Koch Range hoods 4.Fasten Upper chimney retaining bracket by 4 pcs ST4x30mm screws, then fasten 2 pcs ST4x8mm screws at side to fix Upper Decorative Chimney. Indoor Ventilation If you do not have an outlet to the outside, exhaust pipe is not required. Activated carbon filter can be used to trap odours.
-
Page 11: Nuremberg Island Installation
Der Koch Range hoods Nuremberg Island Installation 1)Position the hanging plate on the ceiling and then mark the position of the screw holes. The hanging plate should be securely fixed to the ceiling, ● 11 x ST6 (40 mm) screws for wooden ceiling ●... - Page 12 Der Koch Range hoods 5) Lift the main body of the cooker hood onto the angle bar and then fix it into position using the 16 x M5 screws. IMPORTANT: This stage of the installation process MUST be completed by two people. IMPORTANT: The 16 x M5 screws MUST...
-
Page 13: Operation
Der Koch Range hoods V. Operation 1. Push the Power button to turn power ON/OFF. 2. Push the Low button and the motor runs at low speed. 3. Push the Medium button and the motor runs at mid speed. 4. Push the High button and the motor runs at high speed. -
Page 14: Monthly Cleaning Of The Grease Filter (Aluminum)
Der Koch Range hoods Monthly cleaning of the grease filter (aluminum) Clean the filter monthly to prevent fire hazards due to oil build up. The aluminium filters collect oil, so their cleanliness directly affects the extractor’s efficiency. If not cleaned regularly, the grease build up will block the air from flowing through and thereby affect the suction rate of the extractor. -
Page 15: Main Parameters
Der Koch Range hoods Max wattage: 2 W Voltage range: 110-127 V MODEL: Nuremberg & Nuremberg Island LED panel (max wattage: 8W) The LED panel should not require service. If there is an issue with a LED panel, please email us to info@derkochline.com. -
Page 16: Troubleshooting
Der Koch Range hoods VIII. Troubleshooting Fault Cause Solution The fan blade is Light comes jammed. on, but fan Switch off the unit and repair does not by a qualified service agent. The motor is work damaged. Replace the bulb with correct Light bulb burns. -
Page 17: Warranty Certificate
Der Koch Range hoods Warranty Certificate This "Warranty Certificate" is extended for a twelve-month coverage on the equipment detailed below, from the date of purchase and under the conditions stipulated: Our obligation within the terms of this guarantee is to replace, without charge to the Client, any part that, in our opinion, has manufacturing defects.
