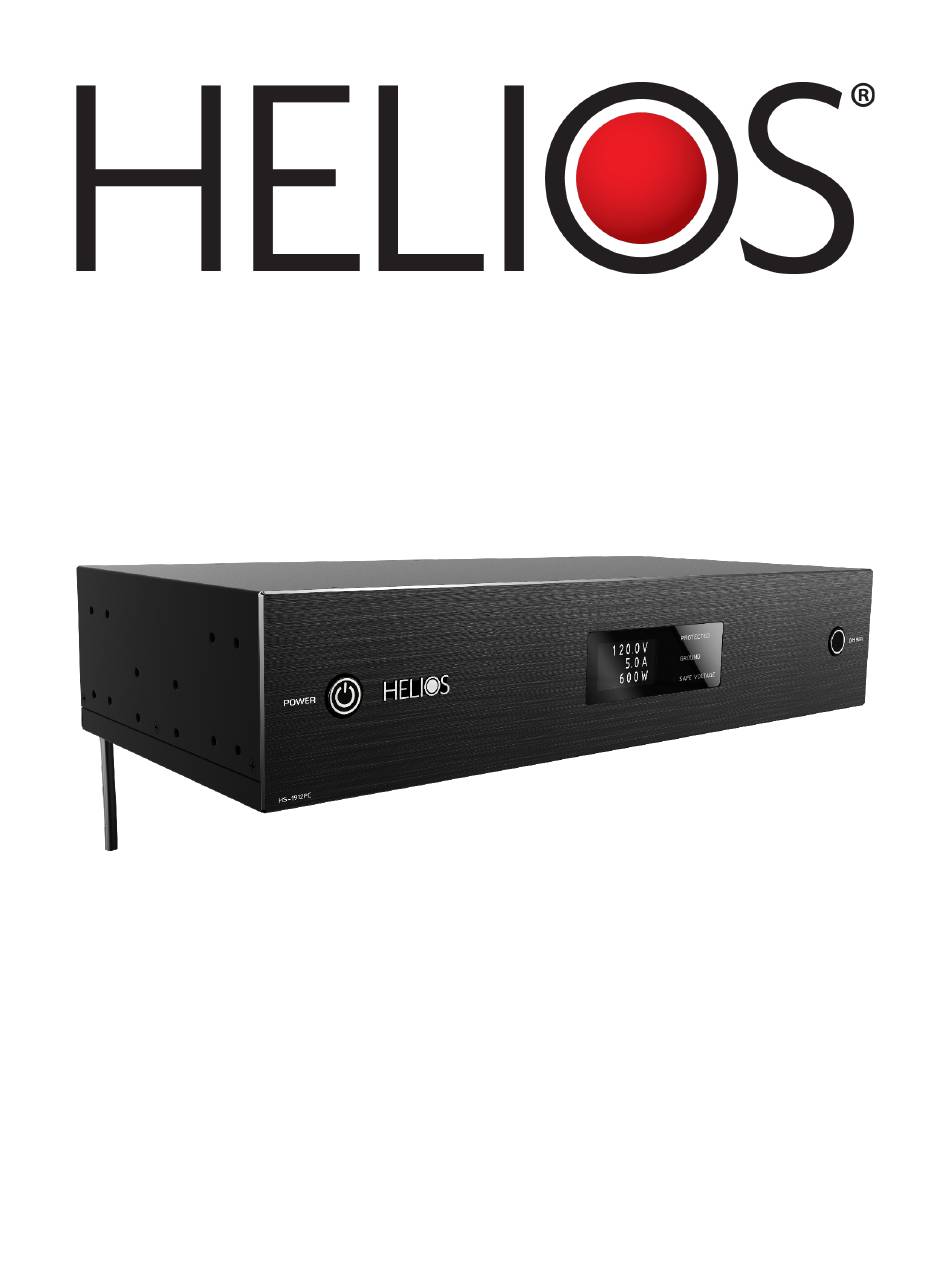

- Page 1 Model: HS-1912PC Helios 12 Outlet Optimized Power Distribution + Protection Unit...
-
Page 2: Specifications
Introduction Silence power worries in your studio, rack, or home theater with the HELIOS HS-1912PC. Ditch traditional MOV surge protectors for long-lasting, non-sacrificial protection that shields your gear from even the nastiest voltage spikes. 12 switched outlets – 10 Standard Current + 2 High-Current for power hungry products like amplifiers - plus 2 rear USB ports give you ample power with flexible control. -
Page 3: Component Description
EMI/RFI Noise Filtering 80 dB LED INDICATOR Protected, Ground, Safe Voltage Power Button ON/OFF Yes, switch for outlets LCD display 1.9'' LCD screen with white text Overvoltage protection Yes - Overvoltage & Undervoltage shut off Circuit Breaker Yes - 15A Ground lug Certification cULus... -
Page 4: Lcd Screen
LCD Screen Total Voltage Total Amperage Total Wattage LED Indicators Protected: Surge Protection is operational OFF: Surge Protection is not operational (Do Not Use) Ground: PDU is grounded correctly OFF: PDU is not grounded correctly (Do Not Use) Safe Voltage: Normal/Good Voltage is provided to the PDU from the service OFF: Over/Under Voltage is provided to the PDU from the service... -
Page 5: Installation
Installation Rack Mount 1. Use the included thumb screws to attach the Rack Mount ears to the PDU near the face or rear of the PDU 2. Slide the PDU into the rack where you intend to mount it 3. Secure the PDU using the appropriate screws for your rack... -
Page 6: Surface Mount
Surface Mount 1. There are multiple locations available for the Rack Ears to match to your application 2. Install appropriate surface mount screws (not included) through the Rack Mount ears into the desired surface... -
Page 7: Shelf Mount
Shelf Mount 1. Slide the PDU onto shelf 2. Place PDU on Shelf... - Page 8 Usage Item Function Description During the boot up process, the Safe Voltage LED will Flash for 5 Boot up seconds. During this time the Power button will not function and the power to the outlets will remain off. When the input voltage is above 138VAC (+/-5VAC), the Safe Voltage LED flashes, and power to the outlets is turned off.
-
Page 9: Important Safety Instructions
Important Safety Instructions Read and observe the following safety points at all times. Notice For indoor use only. Internal components are not sealed for protection from the environment. The device can only be used in a fixed location such as a telecommunication center, or a dedicated computer room. -
Page 10: Fcc Warning
Power cord safety Do not place the power cord near areas with heavy foot traffic (for example, hallways). Do not create a trip hazard with the power cord. If the power cord’s protective jacket rips or frays, exposing the internal wiring or shielding, disconnect it from the power source and replace the power cord immediately. - Page 11 reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
