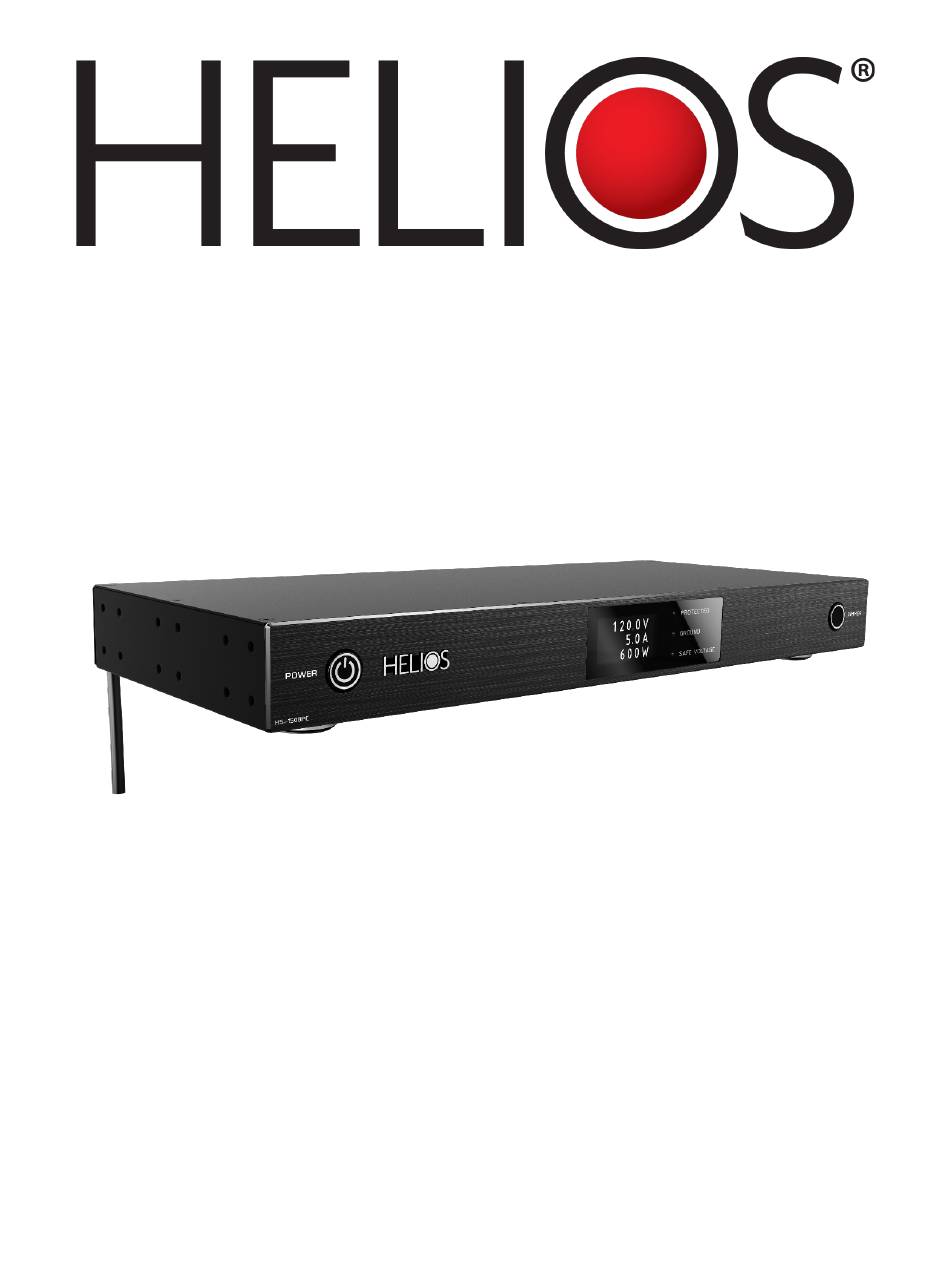

- Page 1 Model: HS-1508PC Helios 8 Outlet Optimized Power Distribution + Protection Unit...
-
Page 2: Specifications
Introduction The HELIOS HS-1508PC revolutionizes rackmount power with Optimized Non-Sacrificial Surge Suppression - no more degraded performance or sudden failures after a spike. This 1U powerhouse boasts 8 switched outlets; 6 Standard Current plus 2 High-Current outlets for demanding gear. 70d EMI/RFI noise filtering ensures pristine audio and video, while a display and intuitive LED indicators keep you informed. -
Page 3: Component Description
Certification cULus Component Description A. LED Backlit Power Button B. Whole System Power Metering C. Status Lights for Safe Power D. Dimmer Button for Front Panel LED Lighting E. Optional Rack Mount Ears are Included F. 6 Standard Current Surge Protected Switched Outlets G. -
Page 4: Led Indicators
LED Indicators Protected: Surge Protection is operational OFF: Surge Protection is not operational (Do Not Use) Ground: PDU is grounded correctly OFF: PDU is not grounded correctly (Do Not Use) Safe Voltage: Normal/Good Voltage is provided to the PDU from the service OFF: Over/Under Voltage is provided to the PDU from the service Installation... -
Page 5: Surface Mount
Surface Mount 1. There are multiple locations available for the Rack Ears to match to your application 2. Install appropriate surface mount screws (not included) through the Rack Mount ears into the desired surface... - Page 6 Shelf Mount 1. Slide the PDU onto shelf 2. Place PDU on Shelf...
- Page 7 Usage Item Function Description During the boot up process, the Safe Voltage LED will Flash for 5 Boot up seconds. During this time the Power button will not function and the power to the outlets will remain off. When the input voltage is above 138VAC (+/-5VAC), the Safe Voltage LED flashes, and power to the outlets is turned off.
-
Page 8: Important Safety Instructions
Important Safety Instructions Read and observe the following safety points at all times. Notice For indoor use only. Internal components are not sealed for protection from the environment. The device can only be used in a fixed location such as a telecommunication center, or a dedicated computer room. -
Page 9: Fcc Warning
Power cord safety Do not place the power cord near areas with heavy foot traffic (for example, hallways). Do not create a trip hazard with the power cord. If the power cord’s protective jacket rips or frays, exposing the internal wiring or shielding, disconnect it from the power source and replace the power cord immediately. - Page 10 FCC Part 15B + ICES-003: Issue 7 Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
