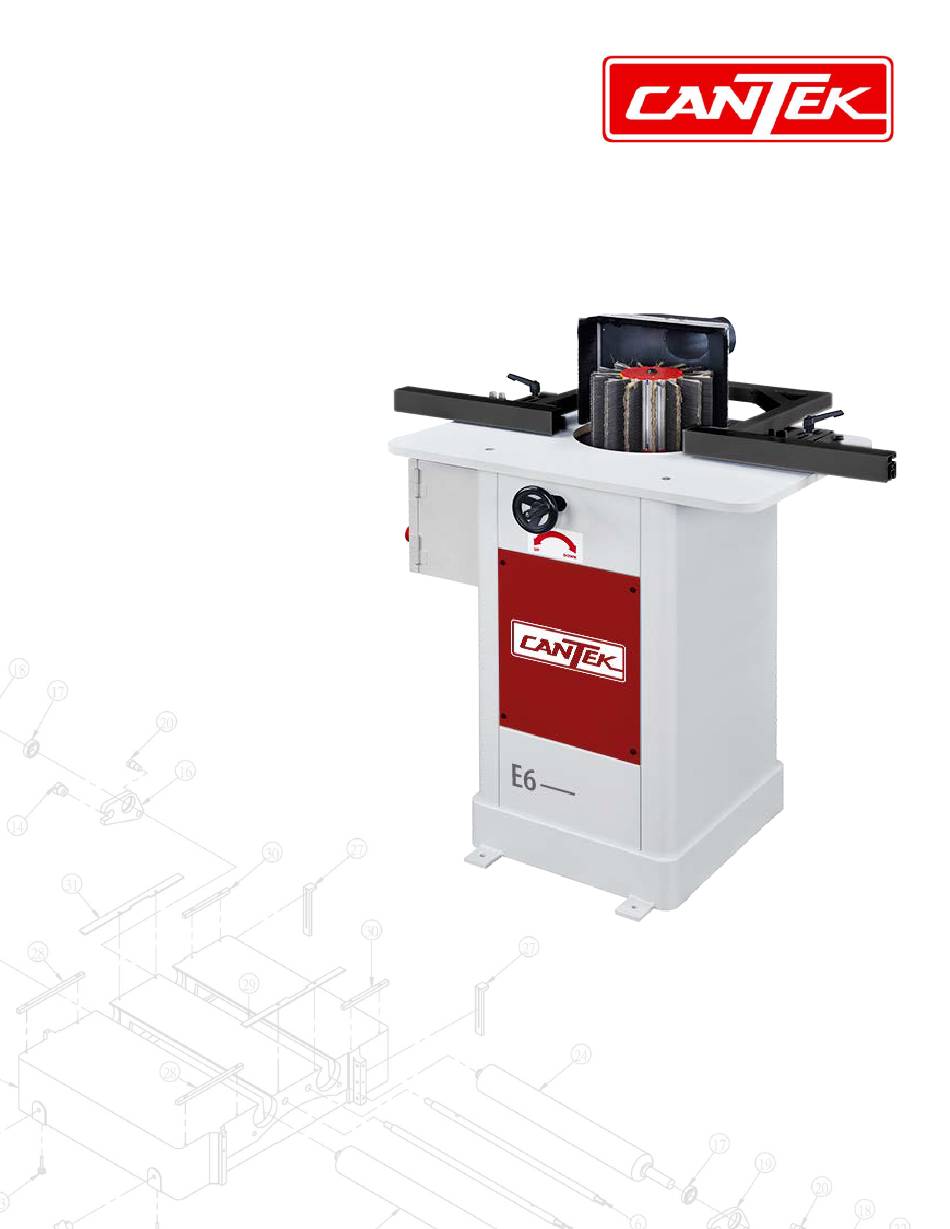

Operations & Parts
Manual
www.cantekamerica.com
E6
Oscillating Edge Brush Sander
Please ensure you have your serial number available when contacting us for parts or service.
Cantek America Inc. | 1.888.982.2683 | Parts: sales@cantekamerica.com | Service: service@cantekamerica.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E6 and is the answer not in the manual?

Questions and answers

Related Manuals for Cantek E6

Summary of Contents for Cantek E6

  • Page 1 Operations & Parts Manual www.cantekamerica.com Oscillating Edge Brush Sander Please ensure you have your serial number available when contacting us for parts or service. Cantek America Inc. | 1.888.982.2683 | Parts: sales@cantekamerica.com | Service: service@cantekamerica.com...
  • Page 2 ADDITIONAL SAFETY RULES FOR THIS MACHINE 1. As with all machines, there is a certain amount of hazard involved with the use of this machine. Use the machine with the respect and caution demanded where safety precautions are concerned. When normal safety precautions are overlooked or ignored, personal injury to the operator can result.
  • Page 3 10. Disconnect the machine from the power source when making repairs. 11. Keep knives sharp and free of all rust and pitch. 12. Do not operate this machine when the guard is removed. 13. Keep fingers and hands away from the cutting area. 14.
  • Page 4 CANE6 Machine Operation Manual October 2024 Version 1.00 Document number: 10111-1010 Translation of the original instructions DISCLAIMER The manufacture makes no representations or warranties with respect to this manual and, to the maximum extent permitted by law, expressly limits its liability for breach of any warranty that may be implied to the replacement of this manual with another.
  • Page 5 Document revisions Date Version Number Document Changes Machine pictures update 11.22.2024 Part list update PREFACE We would like to express our gratitude for your purchase. This machine is designed for finishing sanding and sealer sanding of workpieces with curved surfaces. Different materials of workpieces must be identified to select suitable brushes, determine the speed of brushing heads, and set the order speed of feeding.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1.0 CANE6 MACHINE OPERATION MANUAL ................ 5 2.0 SAFETY PRECAUTIONS:....................7 2.1 SAFETY RULES ......................10 2.2 PERSONAL PROTECTIVE EQUIPMENT ................11 2.3 WARNING LABELS ...................... 12 3.0 IDENTIFICATION ......................14 3.1 CONTROL BUTTONS DESCRIPTION ................15 3.2 FEATURES OF THE MACHINE ..................
  • Page 7 5.2 OPERATING TEST ......................21 5.3 RECOMMENDED USAGE OF SANDING STRIPS ............. 22 6.0 MAINTENANCE ......................22 6.1 MAINTENANCE PERSONNEL ..................22 6.2 WARNINGS FOR MAINTENANCE PERSONNEL ............. 22 6.3 CHARACTER OF MAINTENANCE PERSONNEL .............. 23 7.0 ACCESSORIES ......................23 8.0 PARTS LIST / EXPLODED DRAWINGS ................

  • Page 8: Cane6 Machine Operation Manual

    1.0 CANE6 MACHINE OPERATION MANUAL Important Instructions This manual is tailored specifically for the operation of the CANE6 machine. It provides comprehensive guidance on all operational procedures. Please ensure that this manual is readily accessible near the machine for quick reference. Operators must read and fully understand this manual before using the machine.
  • Page 9 The qualifications of the personnel for the different tasks are mentioned below: Operator: The operator is instructed by the operating company about the assigned tasks and possible risks in case of improper behavior. Any tasks which need to be performed beyond the operation in the standard mode must only be performed by the operator if it is indicated in these instructions and if the operating company expressively commissioned the operator.

  • Page 10: Safety Precautions

    Explanation of safety warnings Danger indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury. Warning indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.
  • Page 11 respect and caution, prioritizing safety precautions. Neglecting normal safety measures can result in personal injury to the operator. 2. Limited Warranty: This warranty excludes personal injury and defects arising from misuse, abuse, negligence, • accidents, normal wear and tear, unauthorized repairs, alterations outside our facilities, or lack of maintenance.
  • Page 12 properly secured before turning on the power. 14. Shavings Removal: Remove shavings only with the power off. • 15. Hands Safety: Keep hands away from the top surface of the board near the feed rollers. • 16. Work Area Cleanup: Before leaving the machine, ensure the work area is clean.

  • Page 13: Safety Rules

    - Have all works only performed by qualified persons. - Keep insufficiently qualified persons and children out of the working area. 2.1 SAFETY RULES 1. Before installing, testing, or starting up the machine, read and memorize these safety rules. Follow available safety instructions and rules carefully.

  • Page 14: Personal Protective Equipment

    2.2 PERSONAL PROTECTIVE EQUIPMENT The personal protective equipment serves to protect persons against impairments of safety and health while working. The staff must wear personal protective equipment while performing different works. The personal protective equipment is explained in the following statement: Hearing protection Hearing protection helps to protect the hearing from harmful noise and other loud sounds.

  • Page 15: Safety Warning Label

    2.3 WARNING LABELS FIGURES TITLE DESCRIPTION Hazardous voltage. Can shock, burn or cause death. WARNING OF ELECTRIC Do not service before disconnecting power. Do not operate machine when the electrical SHOCK enclosure doors are open. This warning label indicated the location of electrical control system, and electrical ELECTRICAL WARNING components cabinet.
  • Page 16 The recommended environment for machine placement. Good ventilation: The sanding machine should be placed in an area with adequate ventilation to ensure the efficient removal of dust and particles, which can be harmful to health. The workspace should be equipped with proper ventilation or exhaust systems to expel dust outdoors.

  • Page 17: Identification

    3.0 IDENTIFICATION Electrical control box Hand wheel adjust sanding head up or down Working table Sanding Head (152mm) Dust port Adjustable Fence...

  • Page 18: Control Buttons Description

    3.1 CONTROL BUTTONS DESCRIPTION The control buttons are located on the side cover of the electrical enclosure of the machine. The functions of the buttons are listed below: Electrical Control Box lock Start/Stop button for sanding head Sanding head speed adjusted Emergency stop Switch between CW and CCW Machine Voltage...

  • Page 19: Features Of The Machine

    3.2 FEATURES OF THE MACHINE 1. The main frame is fabricated and ribbed of heavy steel plate to minimize vibration and deflection. 2. All operating push control buttons are centralized in a convenient control box. 3. They are large, clearly identified and color coded which simplify set up and start up. 4.

  • Page 20: Installations

    4.0 INSTALLATIONS 4.1 UNLOADING You must use the specific forklift for loading, unloading and moving the machine. while lifting the machine, you should be extra careful to prevent bumping, make sure the forks have pass through the machine bottom, and pay attention to balance the machine. Then place the machine on a flat and level floor.

  • Page 21: Connection Steps

    protect the user from electrical shock. Wire Sizes Caution: For circuits that are a great distance from the electrical service box, the wire size must be increased in order to deliver ample voltage to the motor. Recommended Power Cord Size Total HP Circuit Breaker Size (Amps) Recommended Power Cord Size (AWG)

  • Page 22: How To Verify Correct Wiring

    Precautions Before connecting the power, be sure to check the inside of the machine for any obstacles or • tools left inside. If the power light does not turn on, check if the power cord is connected or if the power outlet has •...

  • Page 23: Adjustable Working Surface

    5.0 ADJUSTABLE WORKING SURFACE Using the hand wheel (A) to adjust up and down of sanding head. Using the lock handle (C) to adjust the fence (B) for your references.

  • Page 24: How To Replace The Sanding Strips

    5.1 HOW TO REPLACE THE SANDING STRIPS Step 1: Open the acrylic cover and use an 8mm hex wrench to loosen the screw (A) on the orange cover. Step 2: Move the orange cover so that the groove for the sanding strip + wooden brush strip appears. Remove the sanding strip + wooden brush strip (B).

  • Page 25: Recommended Usage Of Sanding Strips

    5.3 RECOMMENDED USAGE OF SANDING STRIPS Upon contacting the work surface, the brush strip bends the tips of the bristles by 5 to 8 millimeters. Precautions: The orange cover must cover the groove to prevent the brush strip from flying out during operation and avoid danger.

  • Page 26: Character Of Maintenance Personnel

    6.3 CHARACTER OF MAINTENANCE PERSONNEL ITEM DESCRIPTION PERIOD Lead screw Lubricated weekly Worm gear Lubricated weekly Sanding brush heads Checked weekly Guide Rod Lubricated 3 months 7.0 ACCESSORIES Sanding strips + wooden brush Specifications: The suitable bristle lengths for sanding strips are 55 mm and 45 mm, with each set containing 15 pieces. (Length: 152mm) (Bristle length) Part...

  • Page 27: Parts List / Exploded Drawings

    8.0 PARTS LIST / EXPLODED DRAWINGS MACHINE FRAME...
  • Page 28 MACHINE FRAME PARTS NO DESCRIPTION Q'TY SL-152C-001 MACHINE FRAME BASE SL-152C-001-1 DOOR 03002601201(152C) LIFTING SUPPORT PIPE 03002601256-J LIFTING BRACKET SL-152C-002 UPPER BRUSH SHAFT BRACKET WS08 Spring Washer SL-300-5S-01-B011 Tr20 Nut Seat (Casting) SL-152C-005 MDF TABLE SL-152C-001-2 FRAME SUPPORT BRACKET WGBRS-01 Gearbox-Right Output Shaft 13702A-B105 HAND WHEEL SHAFT...
  • Page 29 OSCILLATING MOTOR...
  • Page 30 Reciprocating Motor System PARTS NO DESCRIPTION Q'TY SL-300-N01 Motor Front Cover SL-300-N02 Motor Rear Cover SL-300-N03 Worm SL-300-N04 Worm gear SL-300-N06 Worm Gear Shaft SL-300-N07 Motor Guard Cover SL-300-N07A Motor Fan Cover SL-300-N07B Lower Motor Guard Cover SL-300-N08 Swing Arm SL-300-N08A Swing Arm Body SL-300-N08B...
  • Page 31 SANDING HEAD SYSTEM...
  • Page 32 SANDING HEAD SYSTEM PARTS NO DESCRIPTION Q'TY M0200816 HEX.HEAD SCREW M8*16L SL152C-004 DUST COVER SL-152C-003 PVC CONVER SL-152C-B01 BRUSH SL-152C-B02 BRUSH SL-152MO-003 SANDING HEAD SHAFT M0700720 Double Round Key 7*7*20L M0230610 Set Screw M6*10 E0680004 Brush Shaft Sleeve Fixing Cover 180A-2A Brush Shaft Sleeve(Aluminum) 180A-2G...
  • Page 33 ALUMINUM GUIDE RAIL SUPPORT SYSTEM...
  • Page 34 ALUMINUM GUIDE RAIL SUPPORT SYSTEM PARTS NO DESCRIPTION Q'TY SL-152CR-002 Support Bracket C3305013 Aluminum Guide Rail 400mm C3305041 Stopper Bracket C3305014 Mounting Base M0550015 General Screw M8*25L M0400825 HEX.HEAD SCREW M8*25 M0500080 Nut M8 M0510080 Flat Washer M0400845 Electric Hex Head M8*45L M0510080 Flat Washer M0510101...

  • Page 35: Electrical Schematics

    9.0 ELECTRICAL SCHEMATICS...
