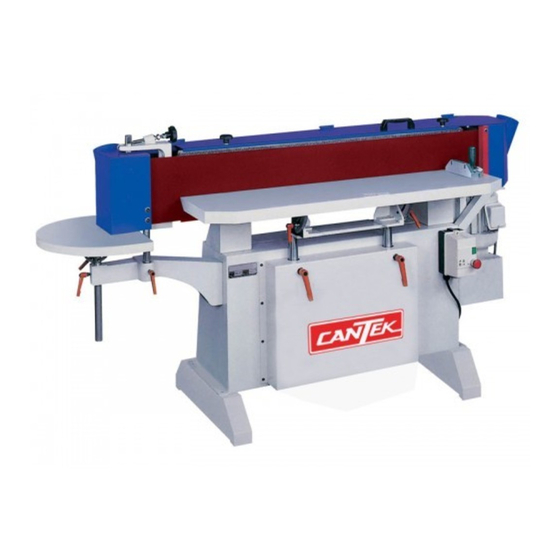

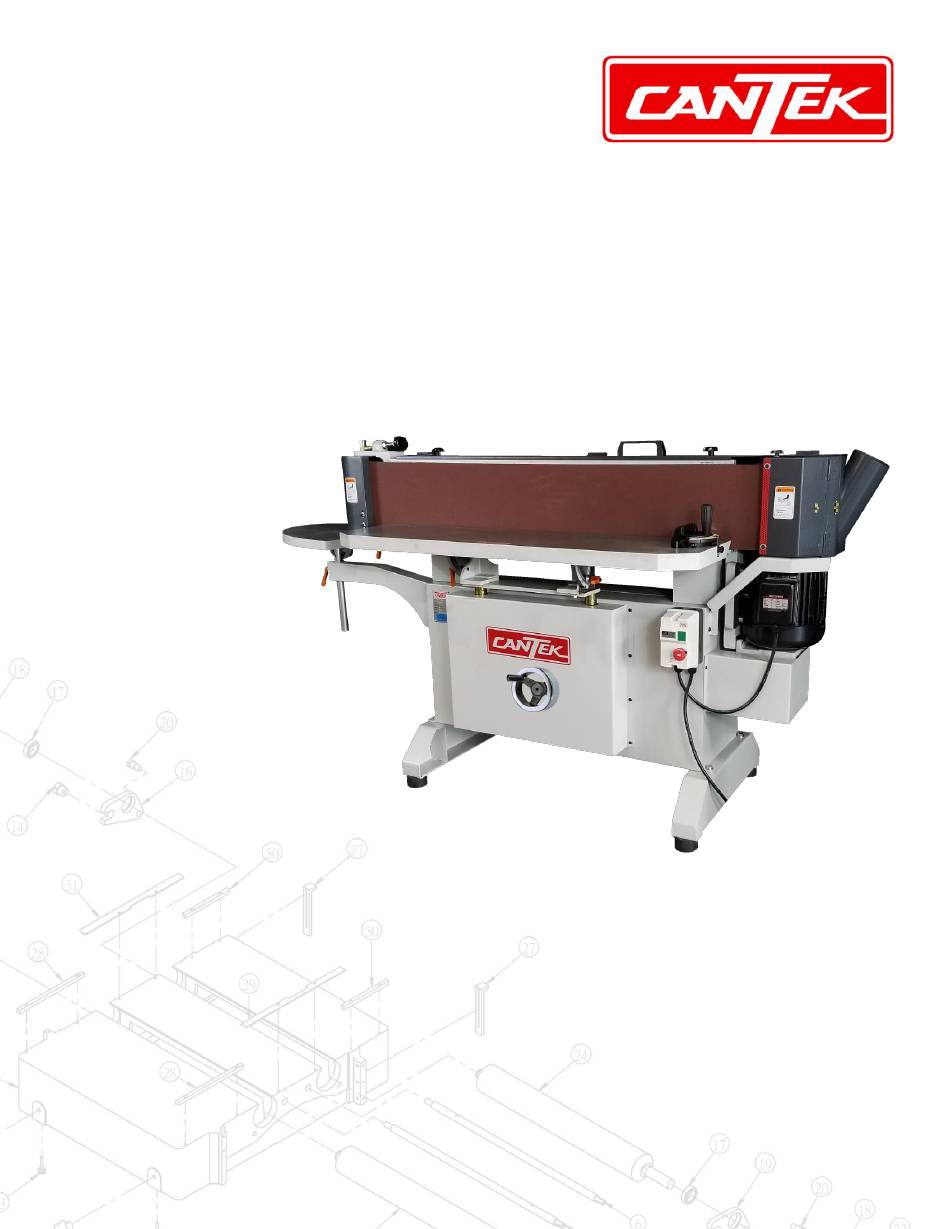

- Page 1 Operations & Parts Manual www.cantekamerica.com PW120E OSCILLATING EDGE SANDER Please ensure you have your serial number available when contacting us for parts or service. Cantek America Inc. | 1.888.982.2683 | Parts: sales@cantekamerica.com | Service: service@cantekamerica.com...
-
Page 2: Table Of Contents
TABLE OF CONTENT SECTION 1 – SAFETY ADDITIONAL SAFETY RULES FOR THE OSCILLATING BELT EDGE SANDER…………………..4 SECTION 2 – POWER SUPPLY REQUIREMENTS GROUNDING…………………………………………………………………………………………………………5 EXTENSION CORDS…………………………………………………………………………………………..6 SECTION 3 – INTRODUCTION UNPACKING……………………………………………………………………………………………………..7-8 PIECE INVENTORY………………………………………………………………………………………………….9 SITE CONSIDERATIONS………………………………………………………………………………………….10 SECTION 4 – ASSEMBLY BEGINNING ASSEMBLY………………………………………………………………………………………..11 RUBBER PAD..……………………………………………………………………………………………………...11 BASE SUPPORTS…………………………………………………………………………………………………..12 SECTION 5 –... -
Page 3: Section 1: Safety
SECTION 1: SAFETY WARNING For Your Own Safety Read Instruction Manual Before Operating This Equipment The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. -
Page 4: Additional Safety Rules For The Oscillating Belt Edge Sander
ADDITIONAL SAFETY RULES FOR THE OSCILLATING BELT EDGE SANDER DO NOT allow anyone to stand near the sander while sanding wood stock; as throw out is a possibility always stands to one side of your machine. DO NOT jam the work piece against the sanding belt. Firmly grasp the work piece in both hands and ease it against the sanding belt using light pressure. -
Page 5: Section 2: Power Supply Requirements
SECTION 2: POWER SUPPLY REQUIREMENTS Insufficient voltage from factory power source may affect the power output of the motor. It is important to connect this machine to the correct voltage in the factory power source. Use only an independent power source. The cord set for this model included does not have a plug, as the style of plug you require will depend... -
Page 6: Extension Cords
Extension Cords We do not recommend the use of extension cords with 220V equipment. It is much better to arrange the placement of your equipment and the installed wiring to eliminate the need for extension cords. Should it be necessary to use an extension, make sure the cord is rated Hard Service (grade S) or better. -
Page 7: Section 3: Introduction
SECTION 3: INTRODUCTION UNPACKING The Oscillating Belt Edge Sander is shipped from the manufacturer in a carefully packed carton. If you discover the machine is damaged after you have signed for delivery, immediately call Customer Service for advice. Figure 1 This Model has two lifting rings located on the top of the access door as shown in Figure 1. - Page 8 When lowering the machine to the floor, it must be done slowly and carefully. Do not let the machine jolt against the floor. When the machine is in its final location, replace the lifting rings with the star Figure 2 knobs as shown in .
-
Page 9: Piece Inventory
PIECE INVENTORY Figure 3 After all the parts have been removed from the carton, you should have as shown in ✓ (2) Base Support ✓ (2) Star Knob M10-1.5 x 15 ✓ (4) Lock Washer 10mm (4) Flat Washer 10mm ✓... -
Page 10: Site Considerations
SITE CONSIDERATIONS FLOOR LOAD Most commercial or home shop floors should be sufficient to carry the weight of the sander. If you question the strength of your floor, you can opt to reinforce it. Ensure that the stand or bench you use;... -
Page 11: Section 4: Assembly
SECTION 4: ASSEMBLY BEGINNING ASSEMBLY Most of your machine has been assembled at the factory, but some parts must be assembled or installed after delivery. Install this machine on a solid and level concrete floor. Leave proper space around the machine for handling the materials to be machined. -
Page 12: Base Supports
BASE SUPPORTS Attaching base supports to the main base: 1. Slide the base supports under the main machine base. Using (4) M10-1.5 x 30 hex bolts, (4) 10mm flat washers, and (4) 10mm lock washers, secure the Figure 5. main machine base to the base supports as shown in Be sure the lock washer is between the hex bolt head and the flat washer when installing. -
Page 13: Section 5: Adjustments
SECTION 5: ADJUSTMENTS POWER SWITCH The machine must be turned ON to visually check the results of certain adjustments made to the sander; however, actual adjustments should never be performed while the machine is plugged in. 1. Before connecting the power wires make sure the voltage between the machine and your factory power source is the same. -
Page 14: Dust Collection
DUST COLLECTION The machine has (2) 4" (100mm) dust hoods. One is positioned for use with the corner table. The second dust hood is for use with the main table. The dust hoods provided on the machine for sucking dust from the sanding units. -
Page 15: Sanding Belt Rotate Direction
SANDING BELT ROTATE DIRECTION After the power wires have been connected, it is necessary to check the sanding belt rotation before performing any sanding operations. The sanding belt should rotate in the same direction as the sticker located on the top of the machine. To check the sanding belt rotation: 1. -
Page 16: Sanding Belt Replacement
SANDING BELT REPLACEMENT To replace the sanding belt: 1. Disconnect the machine from the power source. 2. Open the guard on the sanding unit. 3. Lift the access door to allow easy access to the sanding belt and the tensioning lever. Figure 9. - Page 17 5. Take out the old sanding belt and replace it with a new one. 6. Make sure the directional arrow on the inside of the sanding belt is pointing in the same direction as the Figure 10 directional arrow on the machine; as shown in 7.
-
Page 18: Sanding Belt Adjustment
SANDING BELT ADJUSTMENT After the sanding belt has been removed or replaced, it is necessary to adjust the sanding belt tracking. To adjust the sanding belt tracking: 1. Press the ON switch and then the OFF switch immediately after. The sander should run just long enough to observe the track the sanding belt makes across the rollers. -
Page 19: Main Table Height/Position Adjustment
MAIN TABLE HEIGHT/ POSITION ADJUSTMENT The main table adjustable to accommodate a wide range of work pieces and sanding operations; it can be adjusted according to different work piece thickness and sanding belt sharp conditions. Because the main table is designed with a special balance mount, it is easily adjusted up and down. Adjusted as follows: Figure 12 1. -
Page 20: Main Table Angle
MAIN TABLE ANGLE ° ° The main table position can be adjusted from 0 . To adjust the angle position of the main table: Figure 13 1. Loosen the lock handles underneath each end of the main table as shown in 2. -
Page 21: Miter Gauge
MITER GAUGE The main table has a stationary miter gauge that is used to hold the workpiece at various angles against the sanding belt. The miter gauge is precisely set on the working table with easy-to-read graduation for the convenience of sanding. Adjusted as follows: Figure 15 1. -
Page 22: Corner Table
CORNER TABLE The corner table can be adjusted to accommodate a wide range of workpieces. To adjust the side table: Figure 17 1. Loosen the lock handle shown in 2. Move the corner table to the desired height. 3. Tighten the lock handle loosened in Step 1 after the table position is at the desired height. CORNER TABLE ANGLE The corner table angle can be adjusted tilting angle according to different workpiece angle adjust as follows: Figure 18... -
Page 23: Section 6: Operations
SECTION 6: OPERATIONS TEST RUN Once assembly is complete and adjustments are done to your satisfaction, you are ready to test run the machine. Turn on the power supply at the main panel. Press the START button. Make sure that your finger is poised on the switch, just in case there is a problem. -
Page 24: Section 7: Maintenance
SECTION 7: MAINTENANCE GENERAL This oscillating belt edge sander is designed and manufactured for easy operation and maintenance. Regular periodic maintenance of your machine will ensure its optimum performance. Make a habit of inspecting your machine each time you use it. Check for the following conditions and repair or replace when necessary: 1. -
Page 25: Machine Data Sheet
MACHINE DATA SHEET SPECIFICATIONS OF OSCILLATING EDGE SANDER Design Type....................Floor Model Overall Dimensions and Specifications: Table Size....................47 ⁄ " x 11 ⁄ " Overall Height (With Handle Up) ................45 ⁄ " Table Height (from bottom of base) ..............33" t o 41" Length ........................ -
Page 26: Base And Belt
EXPLODED DIAGRAM FOR BASE AND BELT - 26 -... - Page 27 PARTS LIST FOR BASE AND BELT Description Specification Q’TY Guard Plate “U” Handle Cap Screw M8x16 Plum Screw 1/4"x3/4 Eye Bolt Washer 1/4”x16x1.5 Spring Washer 1/4” Button Head Screw M6x16 Bracket (Short) Bracket (Long) Guard Plate Button Head Screw M6x8 Clipper Countersunk Phillips Head Screw M3x6...
- Page 28 EXPLODED DIAGRAM FOR TABLE AND COVER - 28 -...
- Page 29 PARTS LIST FOR TABLE AND COVER Description Specification Q’TY Outside Table Miter Gauge Lock Handle Washer Pointer Plum Screw M5x10 M8x20 Adjustment Base (Left) Bracket (Left) Spring Washer 3/8” Bracket (Right) Adjustment Base (Right) Indicator Scale Button Head Screw M10x35 Washer 10.2x25x6 Lock Handle...
- Page 30 Washer 5/16x23x2 Hex. Head Screw M8x30 Washer 5/16x18 Hex. Head Screw M8x60 Square Thread Cover Button Head Screw M6x8 Washer 1/2”xΦ34x3 Washer 1/4”x19x1.2 Spring Washer 1/4” Cap Screw M6x12 Cap Screw M5x15 Cap Screw M5x10 Worm Gear Spindle Worm Gear T15xP1.5 Hand Wheel Set Screw...
- Page 31 EXPLODED DIAGRAM FOR CORNER TABLE - 31 -...
-
Page 32: Corner Table
PARTS LIST FOR CORNER TABLE Description Specification Q’TY Corner Table Lock Handle M10x35 Spring Washer Washer 10.2x25x6 Hex. Head Screw M10x50 Adjustment Base Shaft Washer 3/8x23x2 Hex. Head Screw M10x25 Dust Hood Washer 5/16x18 Spring Washer 5/16” Button Head Screw M8x16 Hex. -
Page 33: Idler Drive
EXPLODED DIAGRAM FOR IDLER DRIVE - 33 -... - Page 34 PARTS LIST FOR IDLER DRIVE Description Specification Q’TY Spring 5.5x43x236x14.5 Stopper Block φ49x60L Spring Washer Plate 175x31.8x9.5 Spring Washer 3/8” Cap Screw M10x20 Set Screw M10x10 Lever Handle Cap Screw M12x30 Hex. Head Screw M12x30 Bearing 6201 Retaining Ring S-25 Bearing 6205 Roller...
-
Page 35: Drive Unit
EXPLODED DIAGRAM FOR DRIVE UNIT - 35 -... - Page 36 PARTS LIST FOR DRIVE UNIT Description Specification Q’TY Pillow Block Bearing UCP-207 Washer 1/2”x24x2.5 Spring Washer Hex. Head Screw M12x40 Shaft φ35x355 Set Screw M10x10 Motor Base Cap Screw M8x35 Spring Washer Bracket Button Head Screw M8x20 Washer 5/16”x18 Hex. Head Screw M12x35 Packing Drive Wheel...
