Securiton ASD 535 Maintenance Manual
Aspirating smoke detector
Hide thumbs
Also See for ASD 535:
- Application manuallines (31 pages) ,
- Mounting and installation (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for Securiton ASD 535
Summary of Contents for Securiton ASD 535

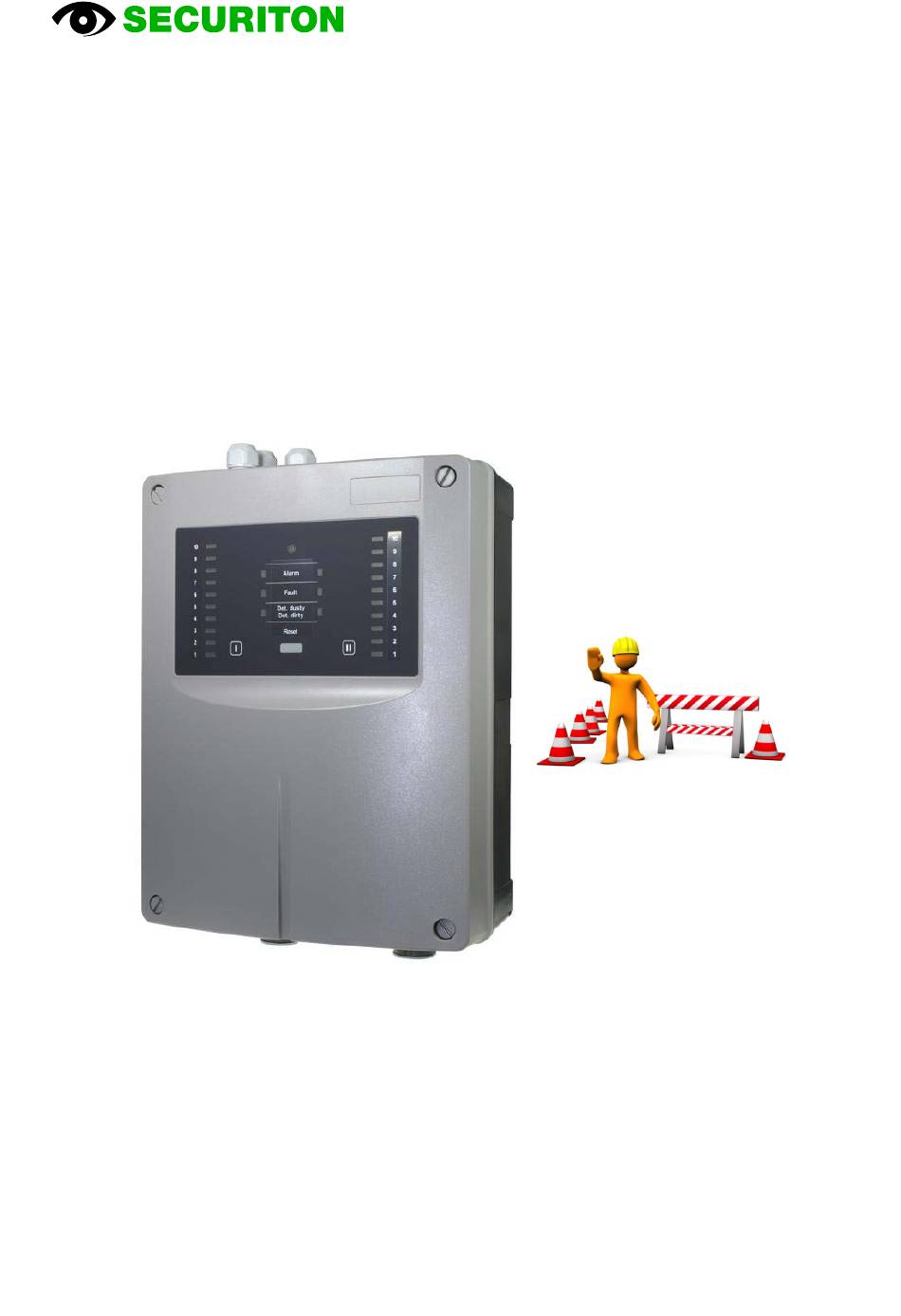

- Page 1 ASD 535 Aspirating Smoke Detector Maintenance Beginning with FW version 01.10.xx Securiton AG Alpenstrasse 20 3052 Zollikofen Switzerland T 140 352 f en...
- Page 2 The product (hardware, software and technical documentation) is subject to the copyright of the manufacturer. Any prohibited modification, misuse, copying or prohibited sale of this product represents a violation of the copyright and will be legally prose- cuted. Copyright by Securiton AG...
- Page 3 T 131 192 is a component of the maintenance instructions. In this document only the points necessary for maintenance of the ASD 535 are described. The general specifica- tions of the ASD 535 aspirating smoke detector can be found in technical description T 131 192.
- Page 4 / en Installation instructions for aspirating fan unit T 131 200 multilingual (EDFI) Integration description ASD 535 on SecuriPro T 131 218 de / en / fr / it 4 / 24 ASD 535, Maintenance, T 140 352 f en...
-
Page 5: Table Of Contents
Replacing printed circuit boards BCB 35 and ACB 35 Disposal 2.5.1 Deployed materials _________________________________________________________________________________________ Article numbers and replacement parts Detector housing and accessories Sampling pipe and accessories _________________________________________________________________________________________ Technical data _________________________________________________________________________________________ List of figures _________________________________________________________________________________________ Document history ASD 535, Maintenance, T 140 352 f en 5 / 24... -
Page 7: General Information
ASD 535-4, with increased IP protection and painted printed circuit boards The descriptions for the ASD 535-3 and -4 versions in this document also apply to the ASD 535-3 HD and -4 HD versions. The SSD 535 smoke sensor is used in the ASD 535 in the following versions: •... -
Page 8: Safety And The Environment
ESD bands for preventing electrostatic discharge are used for grounding persons and for equipotential bonding. 8 / 24 ASD 535, Maintenance, T 140 352 f en... -
Page 9: Disposal
= Fire detection systems Net (networking solution, application name) = Firmware Flash PROM = Memory component for operating software Flush mounting / = Flush mounted / surface mounted surface mounting ASD 535, Maintenance, T 140 352 f en 9 / 24... - Page 10 Verband der Schadenversicherer (Association of Indemnity Insurers, Germany) Vereinigung Kantonaler Feuerversicherungen (cantonal fire insurance union, Switzerland) = Pre-signal Watchdog = Monitoring of the microcontroller XLM 35 = SecuriLine eXtended module 10 / 24 ASD 535, Maintenance, T 140 352 f en...
-
Page 11: Opening And Closing The Detector Housing
USB interface, connection for PC Insulation strips Lithium battery Housing cover fastened in the middle mounting points Fig. 2 Opened detector housing for commissioning ASD 535, Maintenance, T 140 352 f en 11 / 24... -
Page 12: Removing And Mounting The Smoke Sensors
(big flat cable connecter) and to the AMB 35 Main Board (small flat cable connector). The insect protection screens and lock clamps are not fitted to smoke sensor chamber II on the ASD 535-1 and -3 (only one smoke sensor). -
Page 13: Maintenance And Service
Servicing, maintenance or inspection work on the ASD 535 may be necessary after an event (fire, fault). If a detector housing has to be replaced due to a defect, the new ASD 535 has to undergo first-time commissioning (initial re- set required). -
Page 14: Maintenance Checks, Performance Checks
Check that the supply voltage on the FACP is set in compliance with maintenance instructions for the control unit. Check the sampling pipe inlet and pipe plugs of the unused inlet opening on the detector housing (ASD 535-1 and -3) for correct seating. - Page 15 ASD 535 can no longer trigger an alarm. If, as a result of servicing checks, maintenance or repair work is carried out on the ASD 535 (including sampling pipe), a new initial reset may be necessary.
-
Page 16: Filter Replacement On Dust Filter Units
“Filter replacement” procedure is completed by pressing the “Reset” key on the ASD. This cancels the “Iso- late” state and resets the fault on the ASD. The “Filter service life” monitoring is restarted at 0. 16 / 24 ASD 535, Maintenance, T 140 352 f en... -
Page 17: Replacing Units
After replacing the aspirating fan unit, a new initial reset is imperative (see section “Planning” in T 131 192). AMB 35 lifted up Connection wires of the fan disconnected from AMB terminals Connection white black Fig. 4 Removing the aspirating fan unit ASD 535, Maintenance, T 140 352 f en 17 / 24... -
Page 18: Replacing The Airflow Sensor
After removing the four fastening screws of the BCB 35 / ACB 35 with a Torx T10 screwdriver, replacement can take place. Installation is in the reverse order. 18 / 24 ASD 535, Maintenance, T 140 352 f en... -
Page 19: Disposal
Maintenance and service Disposal The ASD 535 aspirating smoke detector and its packaging consist of recyclable material that can be disposed of as described in Sec. 2.5.1. 2.5.1 Deployed materials Recycling All materials used in the ASD 535 and all technologies used in manufacturing are ecologically and environmental- ly friendly in compliance with ISO 14000. -
Page 20: Article Numbers And Replacement Parts
Printed circuit board without smoke level indicator BCB 35 4301220.0101 Printed circuit board with smoke level indicator ACB 35 4301221.0101 Printed circuit board with smoke level indicator ACB 35 CP (painted, for ASD 535-x HD) 11-2200020-01-XX Aspirating fan unit AFU 35, complete 4000299... -
Page 21: Technical Data
Response range (smoke sensor sensitivity see Sec. 3.1) EN 54-20, class A, B, C 54 (for ASD 535-x HD = 66 ) Protection type acc. to IEC 60529 / EN 60529 Ambient conditions acc. to IEC 60721-3-3 / EN 60721-3-3... -
Page 22: List Of Figures
Fig. 2 Opened detector housing for commissioning ..........................11 Fig. 3 Removing and mounting the smoke sensors ..........................12 Fig. 4 Removing the aspirating fan unit ..............................17 Fig. 5 Removing the airflow sensors ..............................18 22 / 24 ASD 535, Maintenance, T 140 352 f en... -
Page 23: Document History
Section / Fig. New (n) / changed (c) / deleted (d) What / Reason 1.1 / 1.3 / 3.1 / 4 Addition of the device variant ASD 535-x HD Addition Addition of the OPB 911 CP Overvoltage Protection Addition Board 2.1 / 2.3, point 9... - Page 24 Filter FBL, FBX, DFU 535 omitted Correction 2.5.1 “Clamp” omitted (pipe clamp) Correction new Art. number RIM 35, latch plate mounting Addition Addition of the VdS G number Addition 24 / 24 ASD 535, Maintenance, T 140 352 f en...
