Summary of Contents for Megger InsuLogix G2

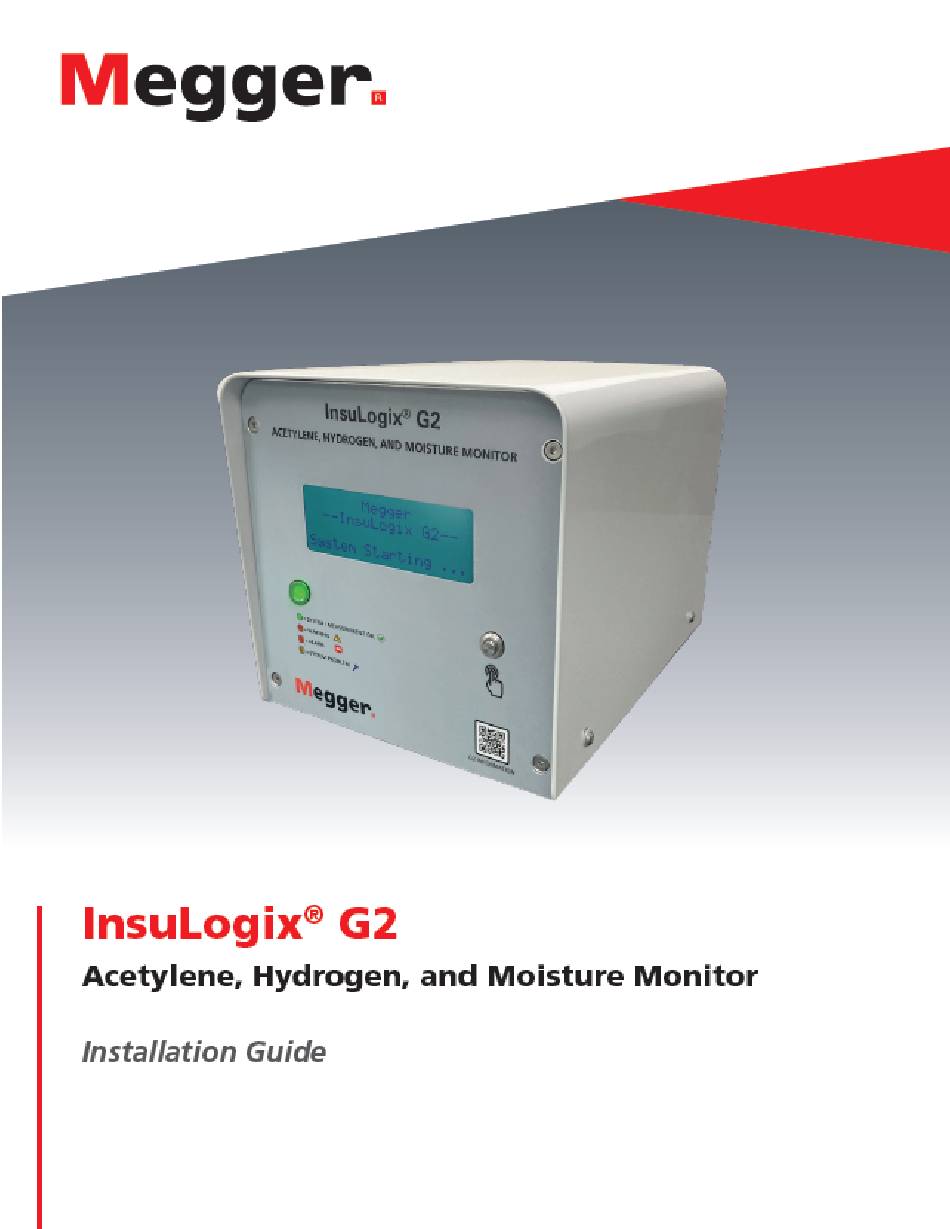

- Page 2 INSULOGIX-G2-IG-EN-V02 December 2023 Installation Guide InsuLogix® G2 Acetylene, Hydrogen, and Moisture Monitor Catalog Number 1015-313 Read this entire manual before installing. Valley Forge 400 Opportunity Way Phoenixville, PA 19460 U.S.A. 610-676-8500 www.megger.com...
- Page 3 If the product or its individual instruments are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained from Megger. Refer to the warranty information below. Specifications are subject to change without notice.
-
Page 4: Table Of Contents
General Safety Precautions ..........................3 Input Power Precautions ........................... 3 3 INSTALLATION ..............................5 Mechanical ................................5 Mounting the InsuLogix G2 ........................... 5 Electrical ................................9 Connection Locations ............................9 Connecting Input Power ..........................10 Wiring the Relay Outputs ..........................11 Wiring the Network Communications ...................... - Page 5 List of Figures Figure 1: Input Power Board ........................... 4 Figure 2: Purge/Sample Port ........................... 6 Figure 3: LT Sample Probe + Tubing (1015-318) ....................7 Figure 4: Cover Lifted Off ............................9 Figure 5: Terminal Board Locations ........................10 Figure 6: Input Power Connection ........................
-
Page 6: About This Guide
Installation of the InsuLogix G2 shall be performed only by qualified personnel. Consult Megger Technical Support with any questions or concerns about the installation process. - Page 7 INSULOGIX-G2-IG-EN-V02 December 2023...
-
Page 8: Safety
SAFETY Safety is the Responsibility of the User Only qualified and trained operators should operate the InsuLogix G2. Each operator must read and understand this Instruction Manual prior to operating the equipment. The Safety precautions, herein, are not intended to replace your Company’s Safety Procedures. -
Page 9: Figure 1: Input Power Board
Installation Figure 1: Input Power Board When using AC, the neutral pole must be at ground potential. Before making connection to the power source, determine that the instrument rating matches the voltage of the power source. Do not bypass the grounding connection. The ground terminal of the input supply (green or yellow/green wire) must be connected to the protective ground (earth) terminal of the line power source. -
Page 10: Installation
To facilitate installation, a union along with a 1 ½” MNPT nipple is provided with each InsuLogix G2. Use of these fittings is recommended to eliminate the need to rotate the unit during mounting. Do NOT use galvanized fittings as the coating on them is known to react with the oil and generate hydrogen, thus skewing the data collected by the monitor. -
Page 11: Figure 2: Purge/Sample Port
Installation 5. Apply Teflon tape and/or a thread sealant to the male NPT fitting on the InsuLogix G2 and thread the other end of the pipe union onto it a. Snug the connection on the InsuLogix G2 6. Join the two ends of the union fitting using the nut a. -
Page 12: Figure 3: Lt Sample Probe + Tubing (1015-318)
Installation Figure 3: LT Sample Probe + Tubing (1015-318) b. Unscrew the dust cap from the sample/purge valve on the rear panel of the InsuLogix The cap is tethered to the valve by a small chain to prevent loss or contamination of the cap caused by it falling on the ground c. - Page 13 Installation Note: Properly dispose of the ¼” tubing following installation as this tubing is intended for one time use only. Reuse of tubing may contaminate future oil samples. 24 in lengths of this tubing are sold as accessories under part number 2016-324. INSULOGIX-G2-IG-EN-V02 December 2023...
-
Page 14: Electrical
1. Remove the four screws, two on each side of the monitor, near the bottom of the cover using an 1/8” Allen wrench 2. Lift the cover straight up, exposing the internal components of the InsuLogix G2. Figure 4: Cover Lifted Off Three ¾”... -
Page 15: Connecting Input Power
In the interest of separation of voltages, it is recommended to use the top gland fitting for the input power connection. Once input power is connected and if other wiring connections are to be made to the InsuLogix G2 at this time, do not turn on the power to the monitor yet. -
Page 16: Wiring The Relay Outputs
Installation Figure 6: Input Power Connection Wiring the Relay Outputs Twelve (12) programmable Form C relay outputs are provided to allow for hard-wired signals to an RTU or Supervisory Control and Data Acquisition (SCADA) system. Signal Relays (1-8) The signal relays are found along the side of the Main PCB. Figure 7: Signal Relay Location The orientation of the signal relay (1-8) terminals is shown in the table below. -
Page 17: Wiring The Network Communications
RLY (X) NO. These terminals can accept 12-24 AWG stranded wire and have a tightening torque of 5.0 lb-in/0.56 Nm. Wiring the Network Communications In addition to the hardwired relays, the InsuLogix G2 comes standard with Modbus RTU and TCP communication protocols for connection to external data acquisition systems. INSULOGIX-G2-IG-EN-V02 December 2023... -
Page 18: Figure 10: Communication Ports Location
Figure 11: RS-485 Wiring Diagram Ethernet (TCP/IP) When using Ethernet to integrate the InsuLogix G2 into the end user network, two options for install are available. The RJ45 receptacle on the rear panel of the unit is IP67 and the... -
Page 19: Wiring The Analog Output Module (Optional Component)
Figure 12: Analog Output Module (1015-315) Use only shielded twisted pair cables for connecting the InsuLogix G2 analog outputs to a data acquisition system. Use of a multi-pair cable is acceptable and, in many cases, will be preferred to reduce the number of cables pulled to the monitor’s gland fittings. -
Page 20: Figure 13: Analog Outputs Location
Installation Figure 13: Analog Outputs Location Connect the cable shield wire to the provided shield terminal for the associated output. When using a multi-pair cable, tie the shield wire to any of the shield connection points on the analog output module Note: The cable shield should be connected at one end only to avoid introducing a ground loop into the circuit. - Page 21 Installation INSULOGIX-G2-IG-EN-V02 December 2023...
-
Page 22: System Configuration
All configuration for the InsuLogix G2 is done through the locally hosted webserver User Interface (UI), which is compatible with Chrome and MS Edge. Logging into the Monitor To log into the InsuLogix G2: 1. -
Page 23: Figure 15: Login Screen
System Configuration Figure 15: Login Screen Once logged into the system, the Dashboard screen will be displayed. This screen provides a snapshot of the current readings of the monitor. The navigation menu is located on the left side of the screen. Clicking on each of the buttons in this menu will direct the user interface to that screen. -
Page 24: Configuring The Device Information
System Configuration Configuring the Device Information Using the menu on the left side of the screen, navigate to the Settings screen. The first tab, Device, hosts the owner information as well as the user editable calibration parameters for the monitor. Figure 17: Device Settings Screen The items on this screen that shall be configured/confirmed during initial configuration are: •... -
Page 25: Configuring Communications
DNP3 to set the Outstation ID (ID of InsuLogix G2 on network) and the Ethernet port that the protocol will use. The same is true of the next two fields when using Modbus protocol. -
Page 26: Setting The Time And Date
System Configuration Note: Ethernet port settings are configured using the System tab on the Utilities page Once all desired updates are made to these settings, click the Save button to write the updates to the system memory. Setting the Time and Date Setting the time and date of the monitor is critical to ensuring that the timestamps for the data are accurate. -
Page 27: Figure 22: Ethernet Settings Save Pop-Up
To reboot the monitor from the user interface, click on the Reboot button located at the bottom of the G2 Services section of this screen. This completes the minimum initial configuration of the InsuLogix G2 monitor, and it is now ready for operation. -
Page 28: Appendix A - Wiring Diagram
Appendix APPENDIX A – WIRING DIAGRAM The diagram below shows all possible power, control, and communication wiring connections for the InsuLogix G2. Figure 24: System Wiring Diagram End of Document INSULOGIX-G2-IG-EN-V02 December 2023...
