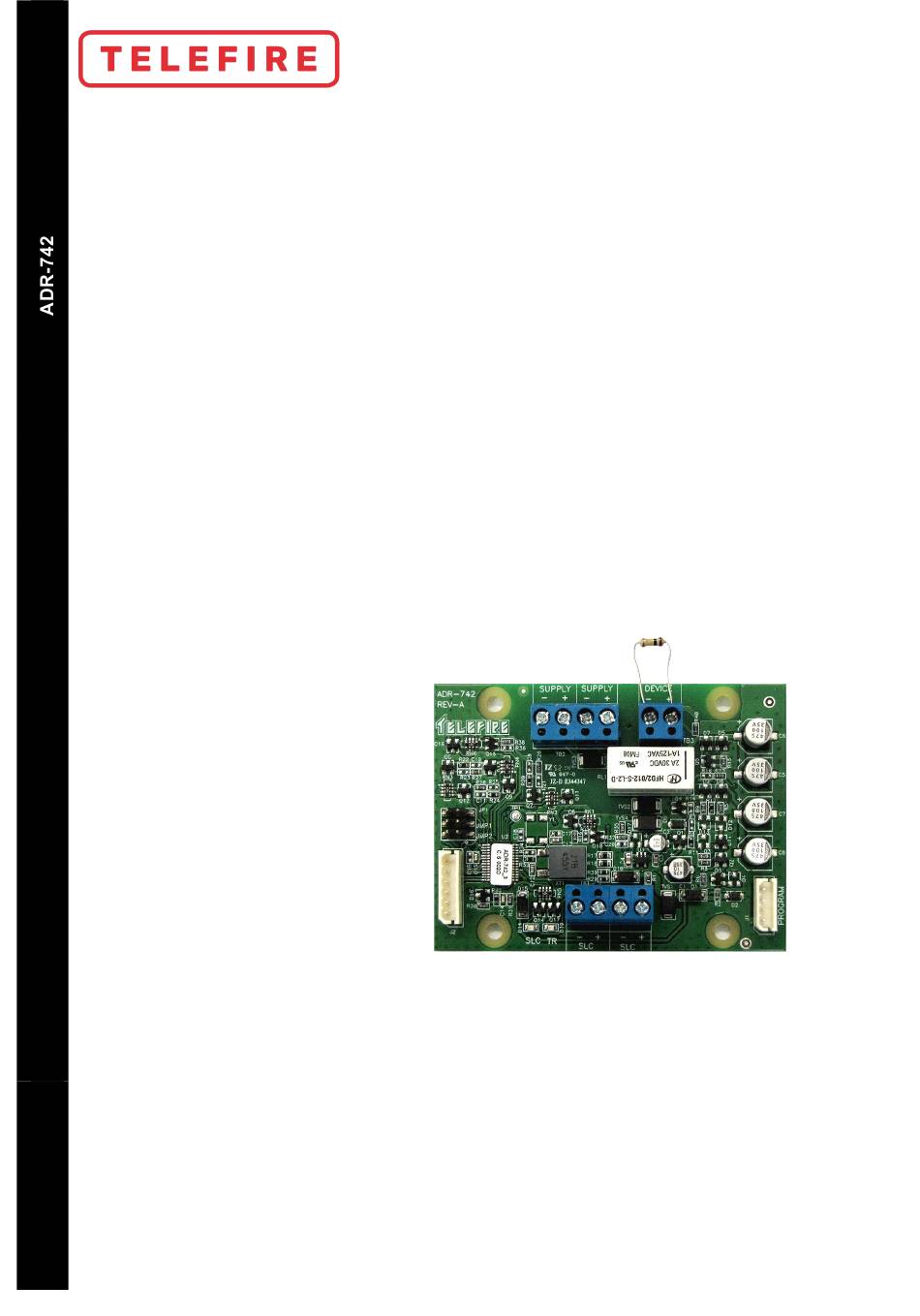

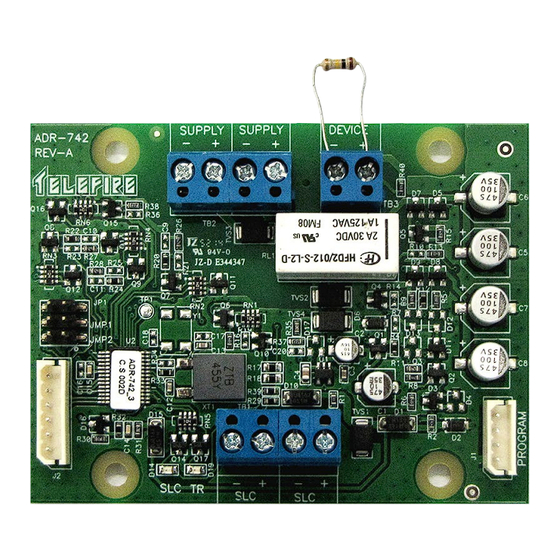

- Page 1 ADR-742 Addressable AC / DC Switching Module Technical Manual & G ELEFIRE ETECTORS PO Box 7036 Petach Tikva 49250 Israel Tel: 972 3 970 0400 ADR-742En101.pdf Fax: 972 3 921 1816 Revision 1.01 eMail: info@telefire.co.il Web: www.telefire.co.il...
- Page 2 The terms “Trouble” as used in NFPA 72 guideline and UL standards and “Fault” as used in EN 54 standards are used interchangeably throughout this manual. Note Do not install, operate, and maintain this ADR-742 before fully reading this manual. © 2014 – 2023 Telefire Fire & Gas Detectors Ltd.
- Page 3 The ADR-742 is powered by the device communications line (SLC), with no need for 24Vdc power supply. The ADR-742 module is supervised by the control panel and communicates with it via the SLC.
-
Page 4: Installation
© 2014 – 2023 Telefire Fire & Gas Detectors Ltd Aug 2023 Revision 1.0 Compatibility Control Panels The ADR-742 is compatible with the full range of Telefire's addressable control panels. Devices ADR-742 can switch speaker lines. Installation Pre-Installation Planning 3.1.1 Capacity Planning Ensure that the control panel has a free address for the ADR-742. - Page 5 Assign the module’s address prior to installation by using the PROG-4000 Addressable Detector and Accessory Programmer. Please refer to the PROG-4000 manual for additional details. Mount AIB-800 on a clean firm surface and install the ADR-742 module in it. 3.2.2 Configuring the ADR-7000 Configure the module Type as "Control Out", Mode as “Speaker”, as appropriate, in the...
-
Page 6: Troubleshooting
Mark the module’s addresses on a label that is easily visible. Indicate its purpose (for example, “Elevator Recall"). Troubleshooting The ADR-742 unit includes an indicator LED that flashes on each system communication request to one of the module’s addresses. When the relay is activated, the LED will latch on. -
Page 7: Specification
ADR-742 © 2014 – 2023 Telefire Fire & Gas Detectors Ltd Aug 2023 Revision 1.0 Specification Module PCB dimensions (W / H)........65 / 86 mm AIB-800 dimensions (W / H / D) ........167 / 125 / 33 mm Operating Temperature range ........
