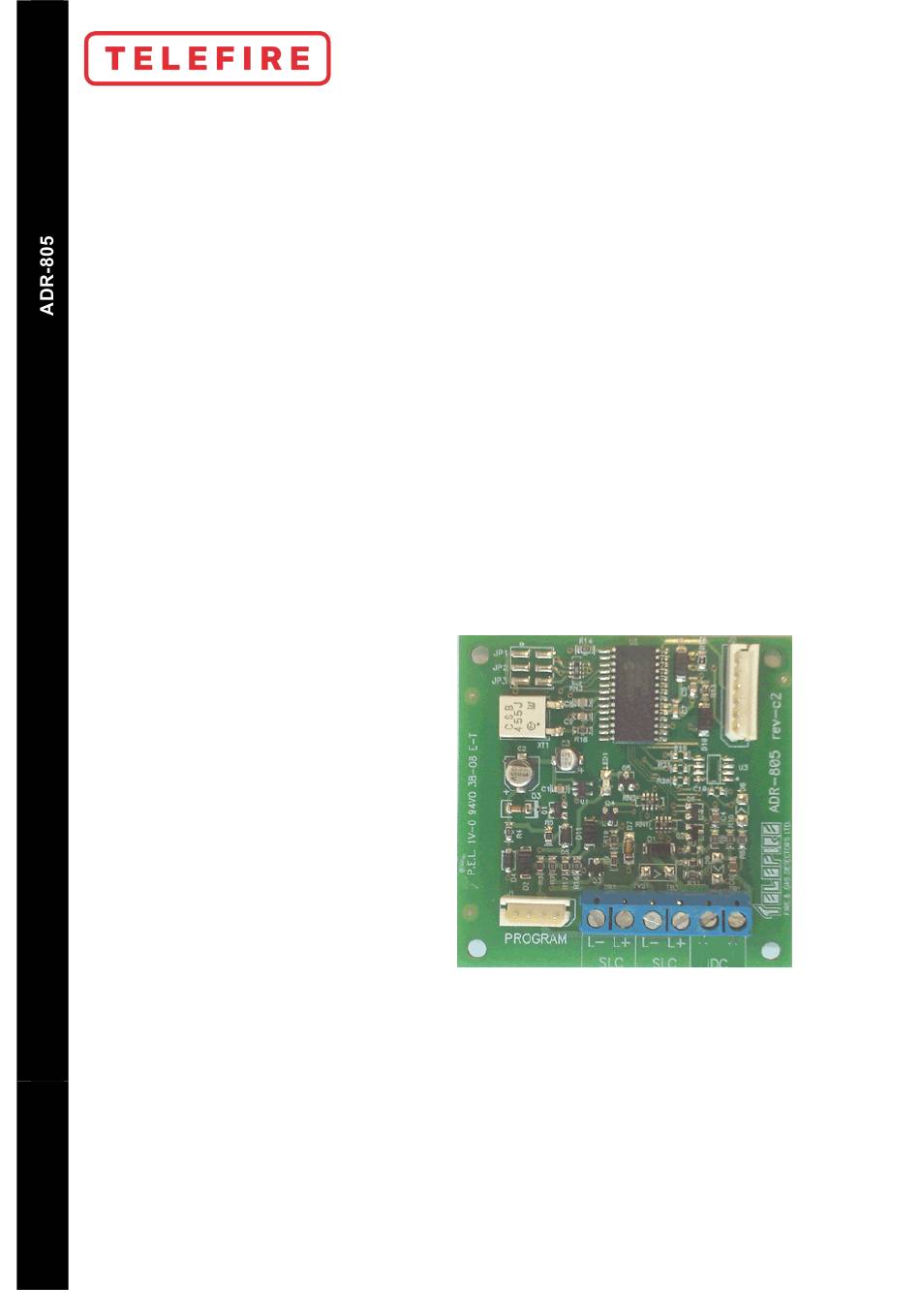

- Page 1 ADR-805 Analog Addressable Switch Interface Module Technical Manual & G ELEFIRE ETECTORS PO Box 7036 Petach Tikva 49250 Israel Tel: 972 3 921 1955 ADR-805En112.pdf Fax: 972 3 921 1816 Revision 1.12 eMail: marketing@telefire.co.il August 2023 Web: www.telefire.co.il...
- Page 2 The terms “Trouble” as used in NFPA 72 guideline and UL 864 standard and “Fault” as used in EN 54 standards are used interchangeably throughout this manual. Note Do not install, operate, and maintain this Product before fully reading this manual. © 1999 – 2023 Telefire Fire & Gas Detectors Ltd.
- Page 3 10m) without short supervision; and up to 100m with short supervision. The End of Line device is a 100KΩ resistor. The ADR-805 occupies a single address. The address is stored in the module’s non- volatile memory and can be programmed or verified by using the PROG-4000 Analog Addressable Detector and Accessory Programmer.
- Page 4 Wire Characteristics' Effect on System Performance 3.1.3 Cabling Planning – Signaling Line Circuits (SLC) The ADR-805 connects to the control panel via a two-wire cable 12 – 18 AWG (cross section of 0.8mm to 3.3mm ). Twisted-pair cable is recommended.
- Page 5 When the ADR-805 is configured without supervision for shorts (JP2 open), the IDC line is limited to the same room or no farther than 10m. Installation Connect the initiating device to the ADR-805 using a 12 – 18 AWG (cross section of 0.8mm to 3.3mm 3.2.1...
- Page 6 Mount the ADR-805 in an AIB-800 box on a solid wall at a height that will have comfortable access to connecting the cables and where it is possible to supervise and clearly see the LED indicators.
- Page 7 ADR-805 © 1999 – 2023 Telefire Fire & Gas Detectors Ltd Revision 1.1 August 2023 Certification Telefire’s ADR-805 Analog Addressable Switch Interface Module has the following approvals: EN 54-17 Approved • IS 1220 Approved • GOST Compliant • UL 864 Edition 9 Approved •...
