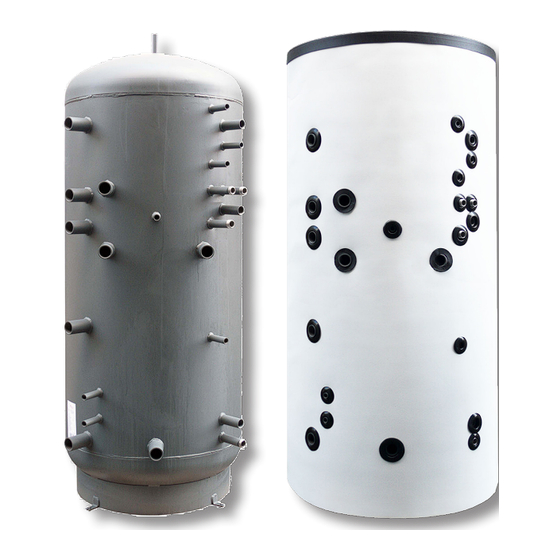

- Page 1 Installation and Operation Instructions THERMAL STORES with stainless-steel DHW tube heat exchanger HSK 600 PV, HSK 750 PV, HSK1000 PV, HSK 1700 PV HSK PV...
-
Page 2: Table Of Contents
1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Packaging ............................2 General Information ............................3 Technical Data and Dimensions of HSK PV Model Line ................4 4 Operation ................................ 5 Typical Layout Examples with Thermal Store ..................... 6 Installation and Commissioning ........................ -
Page 3: Description
1 - Description HSK PV Thermal Stores are intended for storing and subsequent distribution of thermal energy of heating water. It is advantageous to use a heat pump in combination with a PV system as a heat source. They are fitted with a stainless- steel tube DHW heat exchanger, permitting installation of electric heating elements and connection of other heat sources. -
Page 4: Technical Data And Dimensions Of Hsk Pv Model Line
3 - Technical Data and Dimensions of HSK PV Model Line HSK 600 PV Combination Thermal Store Main Features This combination Thermal Store utilizes a heat pump with PV panels as a heat source for both space and DHW heating; DHW is being prepared in 2 integrated stainless-steel heat exchangers;... - Page 5 HSK 600 PV Combination Thermal Store Dimensions CONNECTIONS height pos. description connection [mm] Heat sources Supply from heat source G 6/4" F Return to heat source G 6/4" F Supply from heat source G 6/4" F 1570 Return to heat source G 6/4"...
- Page 6 HSK 750 PV Combination Thermal Store Main Features This combination Thermal Store utilizes a heat pump with PV panels as a heat source for both space and DHW heating; DHW is being prepared in 2 integrated stainless-steel heat exchangers; a tightly fitting Application separating metal plate increases the heat pump’s seasonal coefficient of performance, a dedicated PV...
- Page 7 HSK 750 PV Combination Thermal Store Dimensions CONNECTIONS height pos. description connection [mm] Heat sources Supply from heat source G 6/4" F 1010 Return to heat source G 6/4" F Supply from heat source G 6/4" F 1590 Return to heat source G 6/4"...
- Page 8 HSK 1000 PV Combination Thermal Store Main Features This combination Thermal Store utilizes a heat pump with PV panels as a heat source for both space and DHW heating; DHW is being prepared in 2 integrated stainless-steel heat exchangers; a tightly fitting Application separating metal plate increases the heat pump’s seasonal coefficient of performance, a dedicated PV...
- Page 9 HSK 1000 PV Combination Thermal Store Dimensions CONNECTIONS height pos. description connection [mm] Heat sources Supply from heat source G 6/4" F 1205 Return to heat source G 6/4" F Supply from heat source G 6/4" F 1635 Return to heat source G 6/4"...
- Page 10 HSK 1700 PV Combination Thermal Store Main Features This combination Thermal Store utilizes a heat pump with PV panels as a heat source for both space and DHW heating; DHW is being prepared in 2 integrated stainless-steel heat exchangers; a tightly fitting Application separating metal plate increases the heat pump’s seasonal coefficient of performance, a dedicated PV...
- Page 11 HSK 1700 PV Combination Thermal Store Dimensions CONNECTIONS height pos. description connection [mm] Heat sources Supply from heat source G 6/4" F 1240 Return to heat source G 6/4" F Supply from heat source G 6/4" F 1615 Return to heat source G 6/4"...
-
Page 12: Operation
4 - Operation This tank is designed for heating and storing heating water in household or industrial applications, however always in closed pressure circuits with forced circulation. The thermal store is intended preferably for use with a heat pump in combination with a PV system. A stainless-steel tube DHW heat exchanger is heated by heating water inside the thermal store. -
Page 13: Installation And Commissioning
6 - Installation and Commissioning Installation must meet valid rules and may be done only by qualified staff. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. - Page 14 2. Wrap the insulation around the tank carefully. Check that the insulation adheres to its body perfectly. This can be reached by rubbing and patting the insulation by hand from its center evenly in both directions until the insulation adheres to the tank’s surface completely and no bubbles are left. 3.
-
Page 15: Maintenance
8 - Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9 - Disposal Packaging shall be disposed of in compliance with the valid rules. - Page 16 ©2024 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
