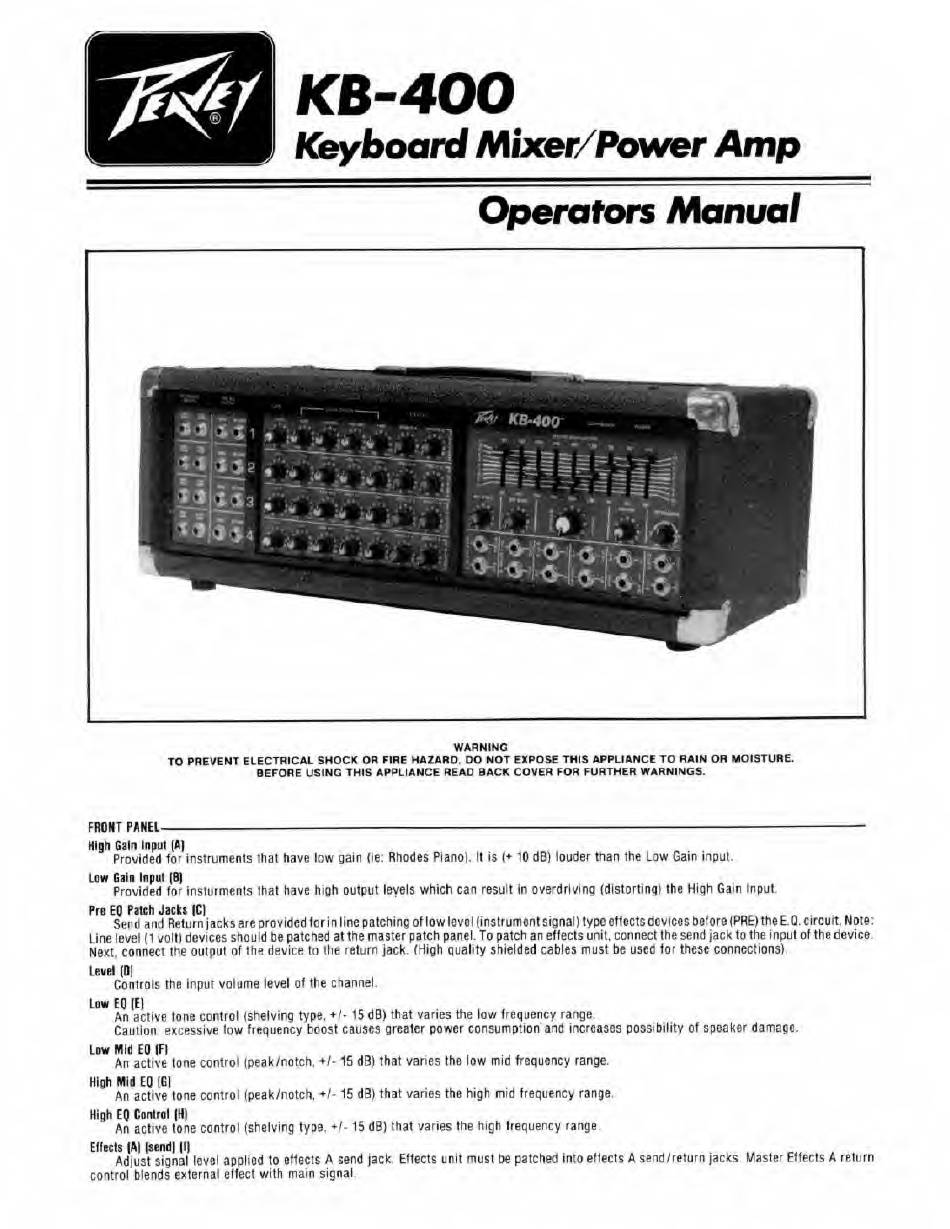

Peavey KB-400 Operator's Manual

KB-400
Keyboard Mixer/Power Amp
Operators Manual
fa' KB-400
WARNING
TO PREVENT ELECTRICAL SHOCK OR FIRE HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
BEFORE USING THIS APPLIANCE READ BACK COVER FOR FURTHER WARNINGS.
FRONT PANEL-
High Gain Input (A)
Provided for instruments that have low gain (ie: Rhodes Piano). It is (♦ 10 dB) louder than the Low Gain input.
Low Gain Input (B)
Provided for insturments that have high output levels which can result in overdriving (distorting) the High Gam Input.
Pre EQ Patch Jacks |C]
Send and Return jacks are provided lor in line patching of low level (instrument signal) type effects devices before (PRE) the E.Q. circuit. Note:
Line level (1 volt) devices should be patched at the master patch panel. To patch an effects unit, connect the send jack to the input of the device.
Next, connect the output of the device to the return jack. (High quality shielded cables must be used for these connections).
Level (0)
Controls the input volume level of the channel.
Low EQ (E|
An active tone control (shelving type, +/-15 dB) that varies the low frequency range.
Caution excessive low frequency boost causes greater power consumption*and increases possibility of speaker damage.
Low Mid EQ (F|
An active tone control (peak/notch. +/-15 dB) that vanes the low mid frequency range.
High Mid EQ (G)
An active tone control (peak/notch, +/-15 dB) that varies the high mid frequency range.
High EQ Control |H)
An active tone control (shelving type. */-15 dB) that varies the high frequency range.
Effects |A) (send| (I)
Adjust signal level applied to effects A send jack. Effects unit must be patched into effects A send/return jacks Master Effects A return
control blends external effect with main signal.
