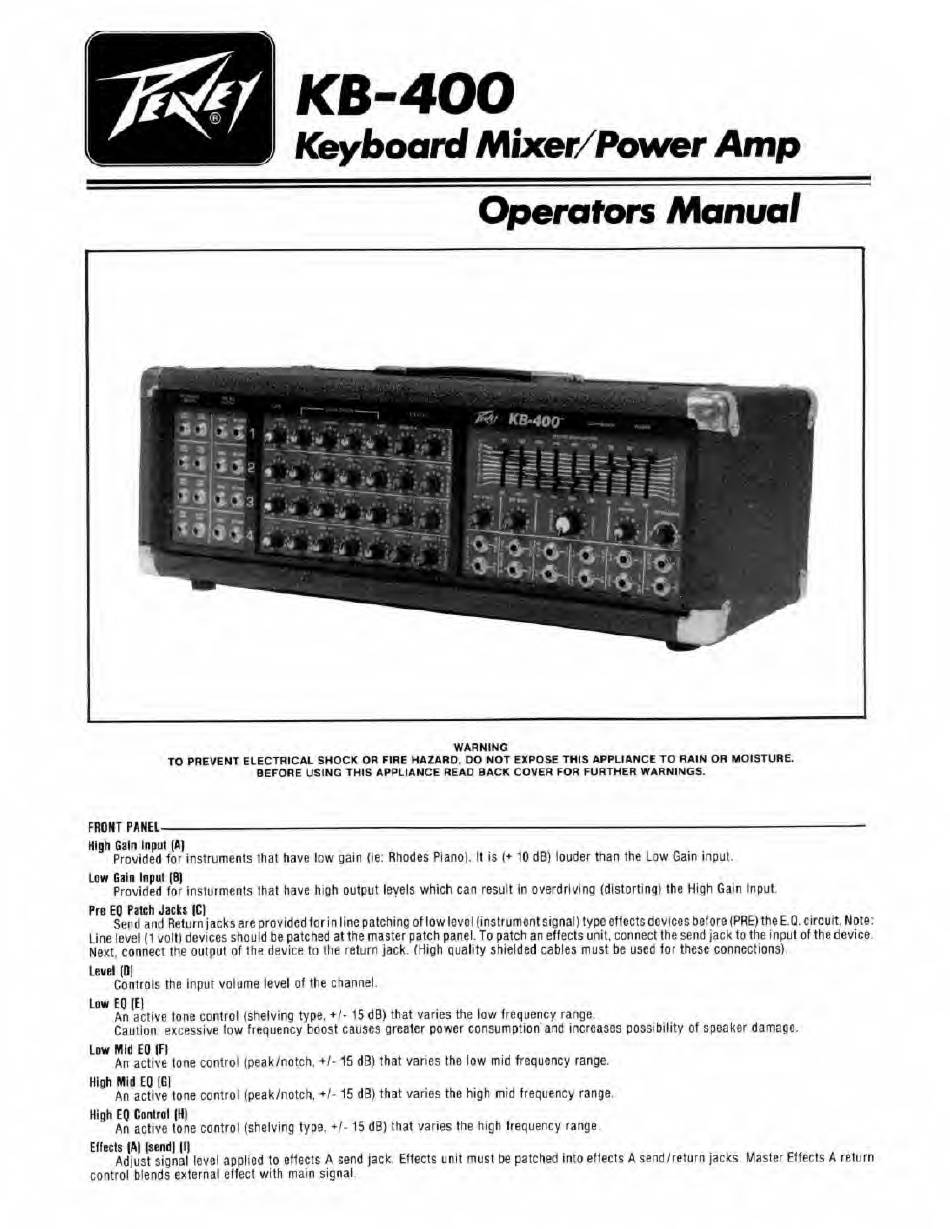

Peavey KB-400 Operator's Manual

KB-400
Keyboard Mixer/Power Amp
Operators Manual
^S-400
WARNING
TO PREVENT ELECTRICAL EHOCK OR FIRE HAZARD. OO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
BEFORE USING THIS APPLIANCE READ BACK COVER FOR FURTHER WARNINGS.
FftOMT PANEL-
High Gain ln[iul [A]
Provided for instruments that have low gain (ie: Rhodes Piano}. It is 10 dB) louder than the Low Gain input.
Uw Gain lipul |6)
Provided tor Insturments that have high output levels which can result in overdriving (distorting} the High Gain Input.
Pre EQ Patch Jacks 10}
Send and Returnjacks are provided forin line patching of low level (instrumentsignal) type eftectstievices before (PRE) the E.Q. circuit. Note:
Line level (1 volt) devices should be patched atthe master patch panel. To patch an effects unit, connect the send jack to the input of the device,
Next, connect the output of the device to the return jack. (Nigh ouality shielded cables must be used for these connections).
Level [D]
Controls the Input voltime level of the channel.
Low EO (El
An active lone control (shelving type, 15 dB) that varies the low frequency range
Caution excessive low frequency boost causes greater power consumption and increases possibility of speaker damage.
Low Mid EO [FI
An active tone control (peak/notch. +/• 15 dB) that vanes the low tnid frequency range.
High Mid EQ |G|
An
active tone control (peak/notch,
*h
15 dB) that varies the high rrnd frequency rar\
9
e.
High EQ Control IHj
An active lone control (shelving type, '/* 15 dB) that varies the high frequency range.
Effects fA| |eend| |l|
Adiust signal level applied to effects A send jack. Effects unit must be patched into eftects A send/return jacks Master Effects A return
control blends external effect with mam signal.
