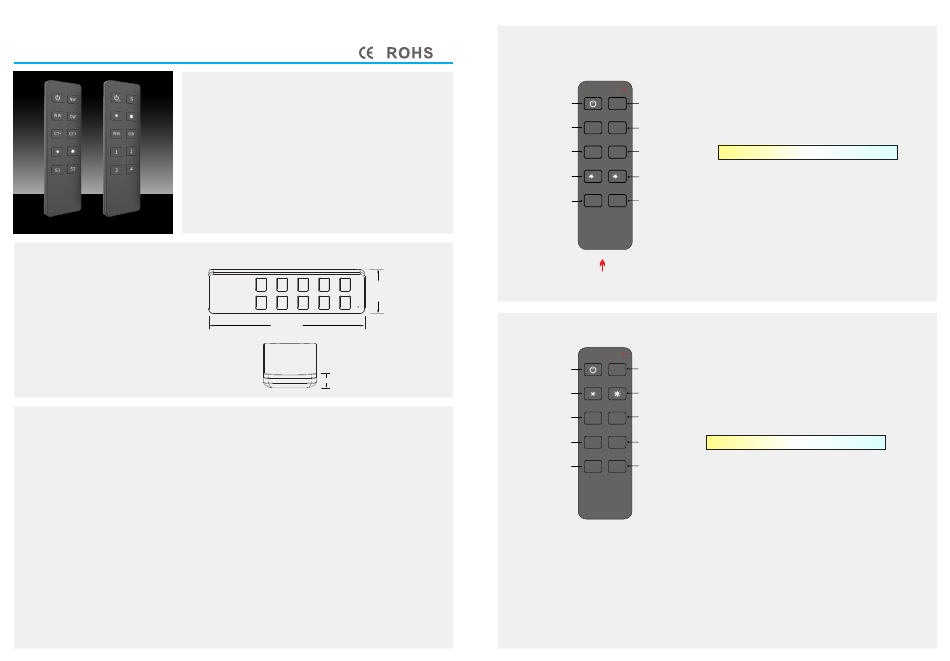

SuperLightingLED R2 Manual

10-key CCT Remoter
(R2,R2-1)
Summary
● Apply to WW+NW, WW+NW+CW LED lamp,
adjust color temperature and brightness.
● Adopt 2.4GHz wireless technology,
remote distance up to 30m.
● Can match one or more controller or smart lamps.
● CR2032 button battery power supply.
● Operate with LED indicator light.
R2 R2-1
Technical Parameters Dimension
● Output signal: RF(2.4GHz)
● Working voltage: 3VDC(CR2032)
● Working current: ＜20mA
● Standby current: ＜4μA
● Standby time: 12 months
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Dimension: L135×W40×H11mm
● Weight: 41g
Match method
For controller with match key
● Match: Short press match key, within 5s, press any key of the remoter.
● Delete: Long press match key for 5s, delete all matched remoters.
For panel controller
● Match: Turn on light, turn off, immediately press on/off key for 5s,
within 5s, press any key of the remoter.
● Delete: Turn on light, turn off, immediately press on/off key for 10s, delete all matched remoter.
For smart lamp or controller without match key
● Match: Switch off the power, then switch on power again,
short press on/off key 3 times on the remoter quickly within 5s after power on,
the link is done once the light blinks 3 times.
● Delete: Switch off the power, then switch on power again,
short press on/off key 5 times on the remoter quickly within 5s after power on,
the unlink is done once the light blinks 5 times.
Note: 4 zone remoter must use zone key match each zone receiver.
40mm
135mm
11mm
Key function
R2 Color Temperature Remoter
On/Off
NW Natural white
Warm white
Cool white
WW CW
Color Color
CT - CT +
temperature- temperature+
Brightness- Brightness+
- +
Scene2
Scene1 S1 S2
Note:Before the first use, please remove the insulating film on the battery.
R2-1 4 zone Color Temperature Remoter
All On/Off Scene
S
All
Brightness- Brightness+
Color Color
WW CW
temperature- temperature+
Zone1 on/off Zone2 on/off
1 2
Zone3 on/off Zone4 on/off
3 4
Color temperature+/-:
Short press 11 levels,
long press 1-5s continuous 256 levels adjustment.
1
Warm White Cool White
WW 100% NW 100%
Brightness+/-:
Short press 10 levels,
long press 1-5s continuous 256 levels adjustment.
Scene 1/2:
Short press run the scene, long press 2s save.
All On/Off:
Turn on/off all four zone light.
Color temperature+/-:
Adjust current selected zone color temperature,
Short press 11 levels,
long press 1-5s continuous 256 levels adjustment.
1 11
Warm White Cool White
WW 100% NW 100%
Brightness+/-:
Adjust current selected zone brightness,
Short press 10 levels,
long press 1-5s continuous 256 levels adjustment.
Zone 1/2/3/4 on/off:
Short press select zone and turn on/off zone light,
long press 1-5s continuous 256 levels brightness adjustment
Scene:
Short press run the scene, long press 2s save.
4 zone run or save synchronously.
11
.
