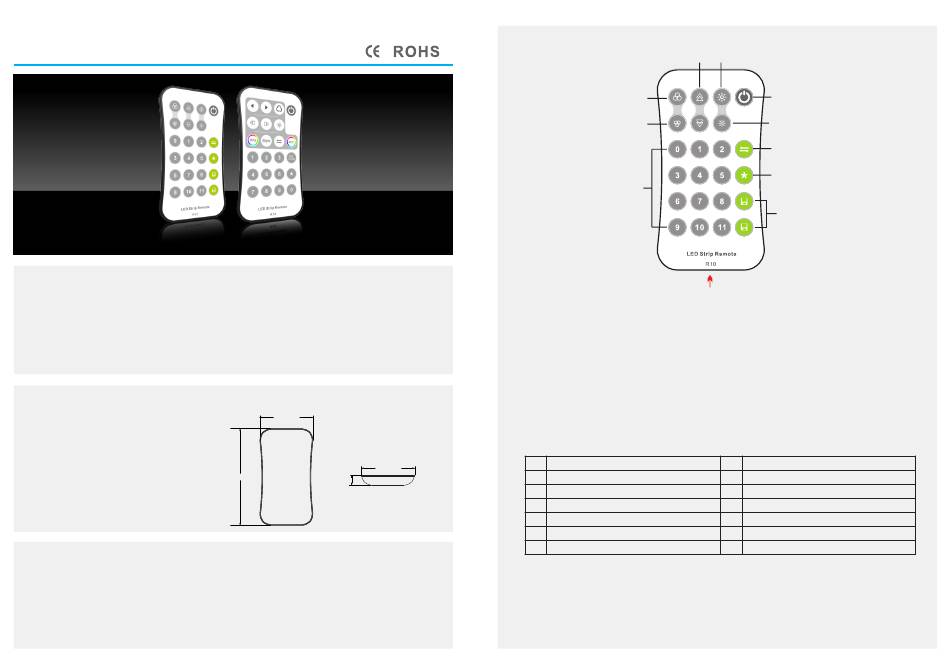

SuperLightingLED Classy Series Quick Start Manual

RF wireless Remote Controller

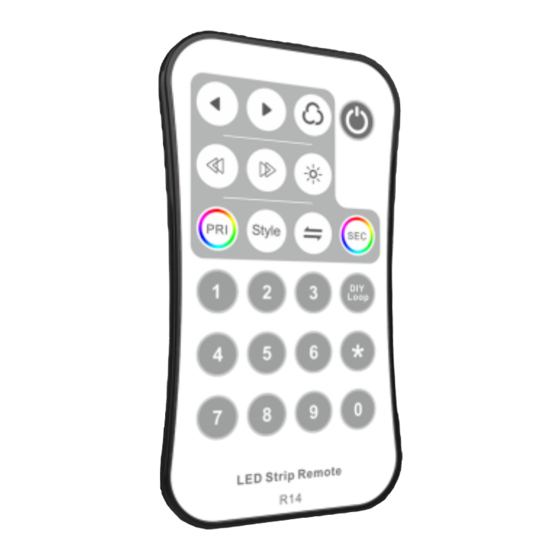

Classy Series (R10,R14)
Summar y
● Match with our SPI controllers or multi-pixel RGB DMX512 master.
● Simplified or enhanced version are available.
● Powerful mode edit function, can edit thousands of mode.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● CR2032 button battery power supply.
● Operate with LED indicator light.
● Each remote can match one or more receiver.

Technical Parameters

● Output signal: RF(2.4GHz)
● Working voltage : 3VDC(CR2032)
● Working current:＜20mA
● Standby current: < 4μA
● Standby time: 12 months
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Dimension: L107×W58.5×H9mm
● Weight: 34g

Match method

For controller with match key
● Match: Short press match key, within 5s, press any key of the remoter.
● Delete: Long press match key for 5s, delete all matched remoters.
For panel controller
● Match: Turn on light, turn off, immediately press on/off key for 5s,
within 5s, press zone key of the remoter.
● Delete: Turn on light, turn off, immediately press on/off key for 10s, delete all matched remoter.
Dimension
58.5mm
58.5mm
107mm
9mm
Key Function
Model: R10 Speed+/-
Mode+
Mode-
Digital num
Note:Before the first use, please remove the insulating film on the battery.
On/Off: Turn on/off light.
Mode+/-: Short press switch mode build in SPI controller,
long press mode+ 2s, run mode cycle, long press mode- 2s, run the first mode.
Speed+/-: Adjust speed, short press 10 levels, long press 2s the fastest/slowest speed.
Bright+/-: Adjust brightness, short press 10 levels, long press 1-5s continuous 256 levels adjustment.
Direction: Short press switch 6 kinds direction,
forward, backward, close, split, forward&backward, close&split in turn.
long press 2s get the forward direction.
Digital num: Short press run 12 kinds mode directly.
Name
No.
0 Red forward float
Green forward float
1
2 Blue forward float
3 6 color forward float
6 color forward scan
4
5 White forward meteor
Note: 1. 3 color sequence: red, green, blue.
6 color sequence: red, yellow, green, cyan, blue, purple.
2. Each mode can adjust speed or direction, and be saved in num key.
3. Short press * key, then long press * key 2s, each num key will restore upper default mode.
Function: Add digital num, used for set IC type, RGB order, pixel length of the LED strip.
2 Scene: Short press run the scene, long press 2s save.
Bright+
On/Off
Bright-
Direction
Function
2 Scene
Name
No.
6 3 color for ward horse race
7 3 color forward chase
8
3 color forward meteor
9 6 color for ward horse race
10 6 color forward chase
11 6 color forward meteor
