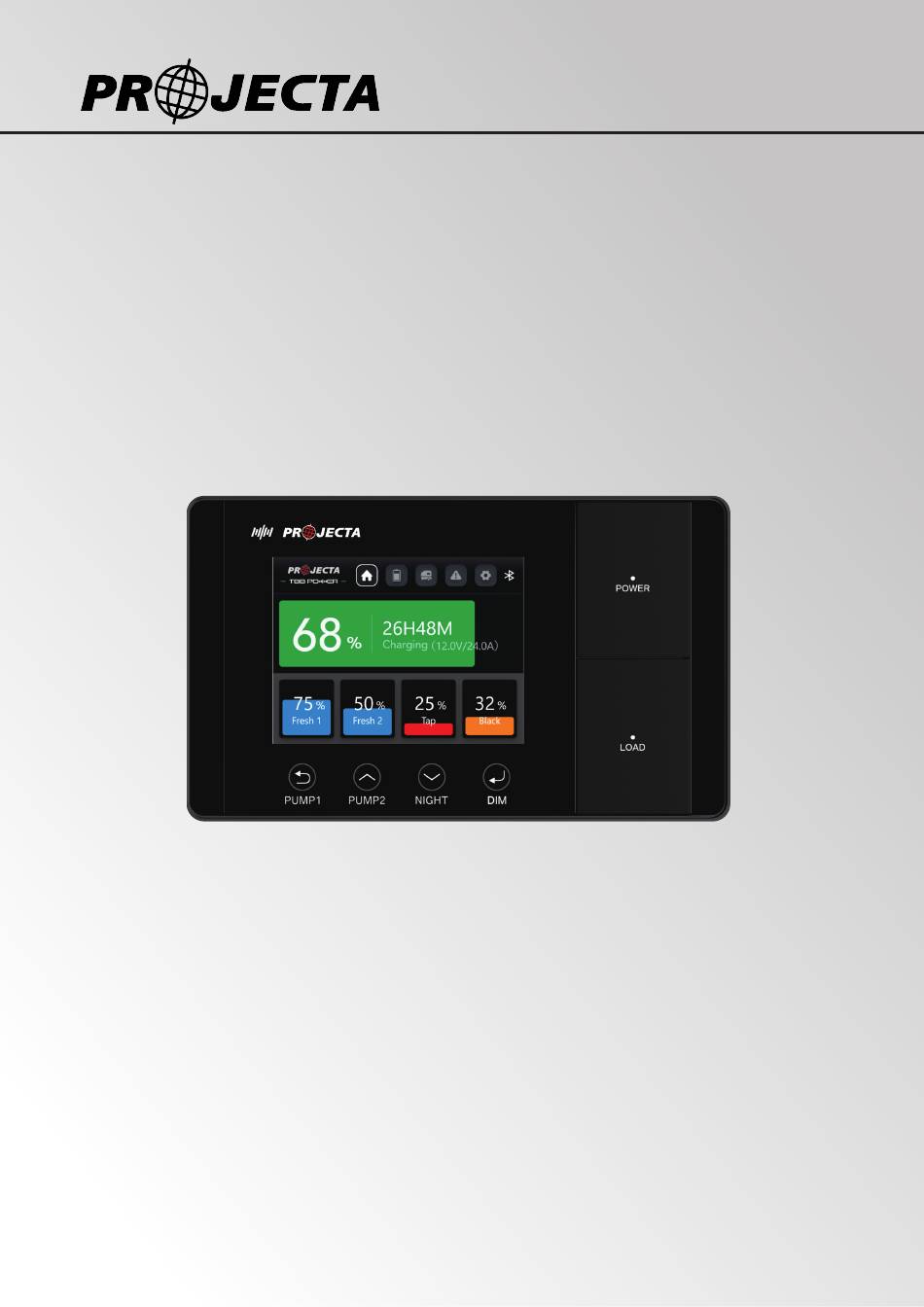

- Page 1 PMD-BT3C INSTRUCTION MANUAL...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read this manual thoroughly before use and store in a safe place for future reference. WARNINGS • Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging • Before charging, read the instructions • For indoor use. Do not expose to rain •... -
Page 3: Table Of Contents
CONTENTS 1 Product Instructions ........................4 Overview Features 2 Display ............................5 System Configuration – Power Module System Configuration – Sensor 3 Structure and Installation ......................7 4 Specifications ..........................7... -
Page 4: Product Instructions

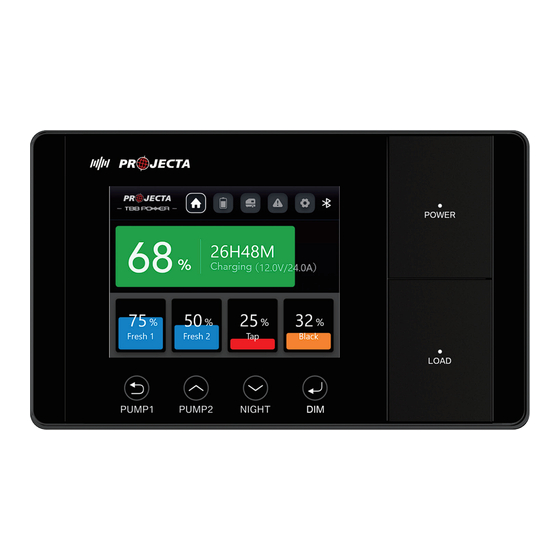

Additionally, the PMD-BT3C enables users to manage caravan loads, pumps, and power. This monitor is compatible with PROJECTA’s new range of Power Management systems, including the PM235C, PM335C, and PM435C, making it a flexible solution for various setups and requirements. -
Page 5: Display
Display Charge Alarm Bluetooth page page status Home Sensor Settings page page page Charge source Power/Battery switch Battery state Water PUMP1 PUMP2 Night Load switch of charge tank mode Description Status Water Level 0% – 25% – 50% – 75% – 100% Fresh 1 Fresh 2 Empty... -
Page 6: System Configuration - Power Module
Low Power Mode: SC be powered ON when Solar input available 2.2 System Configuration – Sensor The PMD-BT3C gives users visibility of the systems tyre pressure monitoring, levelling and gas gauge sensors (if connected). The relevant sensor needs to be enabled on the sensor page. -
Page 7: Structure And Installation
Structure and Installation 111.6 76.8 139.8 86.2 CUT OUT 69.5 4 x M4 screws Specifications Model PMD-BT3C Input 12Vd.c Current 200mA Temperature -20~+60°C PHYSICAL SPECIFICATION Dimension 139.8mm*86.2mm*45mm Weight 180g Protection Category IP20 APPROVALS N 55032:2015 IEC61000-3-2 EN 55035... -
Page 8: Warranty Statement
WARRANTY STATEMENT Applicable only to product sold in Australia Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic.,telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of five (5) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked on the invoice.
